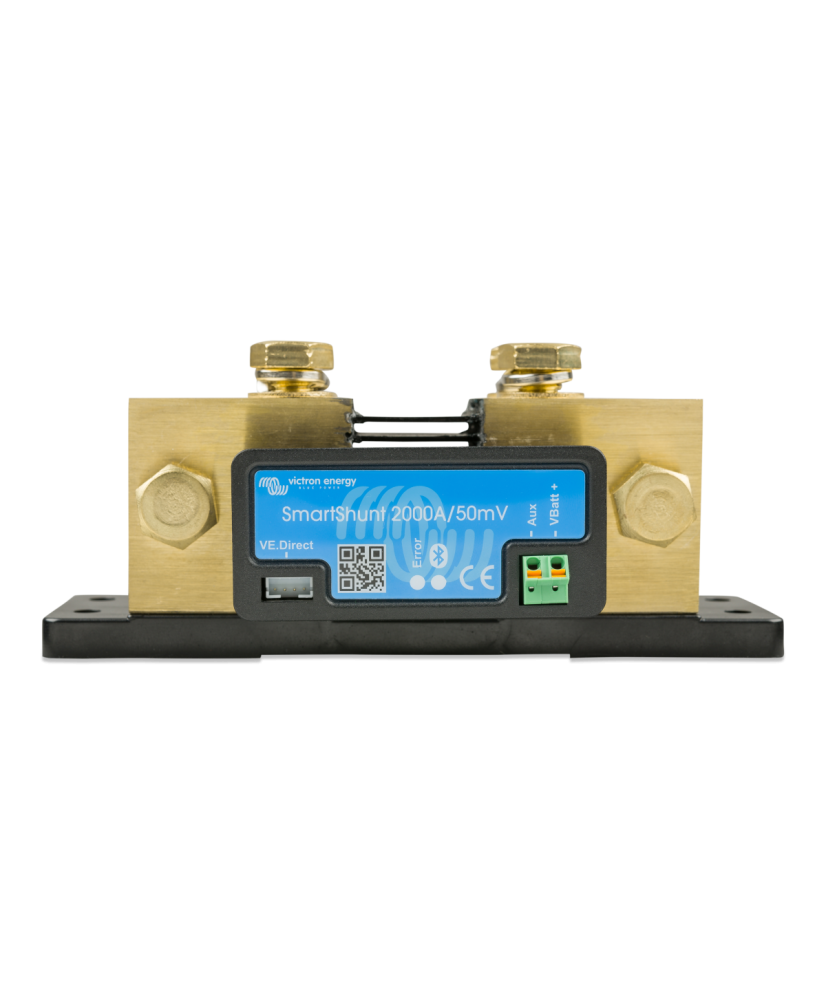

Battery monitor Victron Energy SmartShunt, 2000 A, Bluetooth

€289 Save €58
€231 Tax included

€193 Tax excluded

SmartShunt 2000A is a battery monitor without a display for high-current DC systems, with a 2000 A shunt and M10 terminals. State of charge, time to go and history are read via Bluetooth in VictronConnect or on a GX device connected via VE.Direct. The auxiliary input monitors a second battery, the midpoint or temperature.

Reference SHU050220050

Victron Energy commercial warranty: 5 years for defects in materials and workmanship, handled through us as the seller. In addition to the legal guarantee. Conditions

Your legal guarantee rights

Legal guarantee

EU harmonised notice on the legal guarantee of conformity

More information: europa.eu/youreurope/guarantees
Open the notice at full size

SmartShunt 2000A - Battery monitor with Bluetooth 2000A

SmartShunt 2000A is a battery monitor without a display for high-current DC systems, with a 2000 A shunt and M10 terminals. State of charge, time to go and history are read via Bluetooth in VictronConnect or on a GX device connected via VE.Direct. The auxiliary input monitors a second battery, the midpoint or temperature.

Main features:

  • Rated current: 2000 A
  • Supply voltage: 6.5-70 VDC, current draw below 1 mA
  • Communication: Bluetooth, VE.Direct
  • Current accuracy: 0.4 %, offset below 40 mA
  • Auxiliary input: second battery, midpoint or temperature
  • Data history: 46 days of stored trend data

The SmartShunt is an all-in-one battery monitor, only without a display. Your phone acts as the display. The SmartShunt connects via Bluetooth to the VictronConnect app on your phone (or tablet) and you can conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more.

Alternatively the SmartShunt can be connected and be read by a GX device. Connection to the SmartShunt is made via a VE.Direct cable.

The SmartShunt is a good alternative for a BMV battery monitor, especially for systems where battery monitoring is needed but less wiring and clutter is wanted.
The SmartShunt is equipped with Bluetooth, a VE.Direct port and a connection that can be used for: monitoring a second battery, midpoint monitoring or a temperature sensor.

Technical specifications

Supply voltage range6.5 … 70 VDC
Current rating2000 A
Battery capacity range1 … 9999 Ah
Current draw1 mA
Input voltage range, auxiliary battery6.5 … 70 VDC
Operating temperature range-40 … 50 °C
Auxiliary input for second battery voltageYes
Temperature sensorOptional (ASS000100000 - Temp. sensor for BMV)
Temperature measurement range-20 … 50 °C
Communication portVE.Direct
BluetoothYes
DisplayNo
Visual alarm on deviceNo
Audible alarm on deviceNo
Current measurement resolution0.01 A
Voltage measurement resolution0.01 V
Capacity measurement resolution0.1 Ah
State of charge measurement resolution0.1 %
Time-to-go measurement resolution1 min
Temperature resolution1 °C
Measurement accuracy0.4 %
Current measurement accuracy0.4 %
Current measurement offset40 mA
Voltage measurement accuracy0.3 %
Positive cable1.5m cable with 1A fuse
Auxiliary cable1.5m cable with 1A fuse
Shunt connection terminalsM10 bolts
Protection categoryIP21
Weight2 kg
Height68 mm
Width168 mm
Depth100 mm
Front diameter63 mm
Body diameter52 mm
Body depth31 mm
SafetyEN 60335-1
Emission and immunityEN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive directiveEN 50498
Stored dataBattery voltage, Battery current, Battery temperature, Battery state of charge percentage, Battery midpoint deviation, Starter battery voltage, Load output Current
Data retention period46 d

Data sheet

Reference
SHU050220050
EAN13
8719076044277
Brand
Victron Energy
Product type
Shunt and battery monitor
DC input voltage range
6.5-70 V
Rated current class
501+ A
Rated current (exact)
2000 A
Bluetooth (app)
Yes
Communication interfaces
Bluetooth
VE.Direct
Dimensions (H x W x D)
68 x 168 x 100 mm
Weight
2 kg
Ingress protection (IP)
IP21
Operating temperature
-40 ... 50 °C
Standards and compliance
EN 60335-1, EN 50498, EN-IEC 61000-6-1, EN-IEC 61000-6-2
