Shunt 500A/50mV Victron Energy
  • Shunt 500A/50mV Victron Energy
  • Shunt 500A/50mV Victron Energy

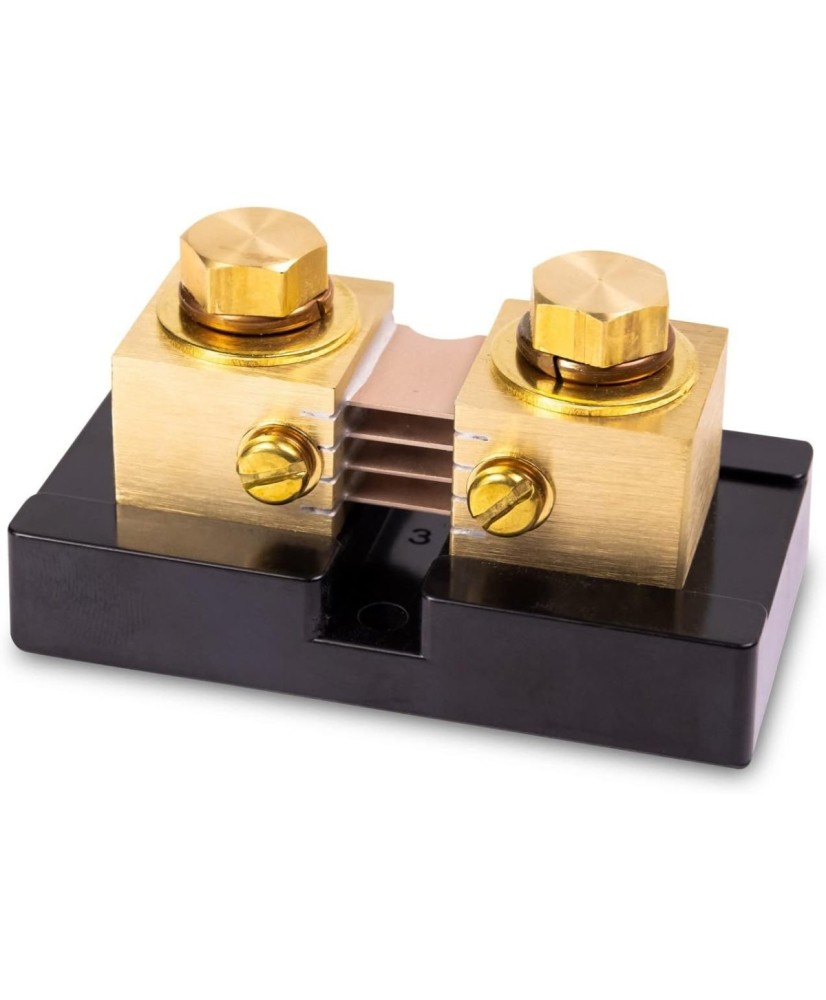

Current shunt Victron Energy 500A/50mV

€28 Save €6
€22 Tax included

€18 Tax excluded

The 500A/50mV shunt is a current measurement shunt for DC systems, with a voltage drop of 50 mV at the rated current of 500 A. It has M10 terminals and is part of the Victron range of 500-6000 A shunts.

Reference SHU500050100

Victron Energy commercial warranty: 5 years for defects in materials and workmanship, handled through us as the seller. In addition to the legal guarantee. Conditions

Your legal guarantee rights

Legal guarantee

EU harmonised notice on the legal guarantee of conformity

More information: europa.eu/youreurope/guarantees
Open the notice at full size

Shunt 500A/50mV - Current measurement shunt 500A

The 500A/50mV shunt is a current measurement shunt for DC systems, with a voltage drop of 50 mV at the rated current of 500 A. It has M10 terminals and is part of the Victron range of 500-6000 A shunts.

Key features:

  • Rated current: 500 A
  • Voltage drop: 50 mV
  • Connection terminals: M10

Victron shunts are used for accurate current measurement in high-power DC systems. These shunts are available in versions from 500 A to 6000 A, all with a voltage drop of 50 mV and all with M10 terminals. Available models:

  • 500A / 50 mV
  • 1000A / 50 mV
  • 2000A / 50 mV
  • 6000A / 50 mV

Data sheet

Reference
SHU500050100
EAN13
8719076026211
Brand
Victron Energy
Product type
Shunt and battery monitor
Rated current class
251-500 A
Rated current (exact)
500 A
Voltage drop
50 mV

We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the manufacturer’s datasheet.
