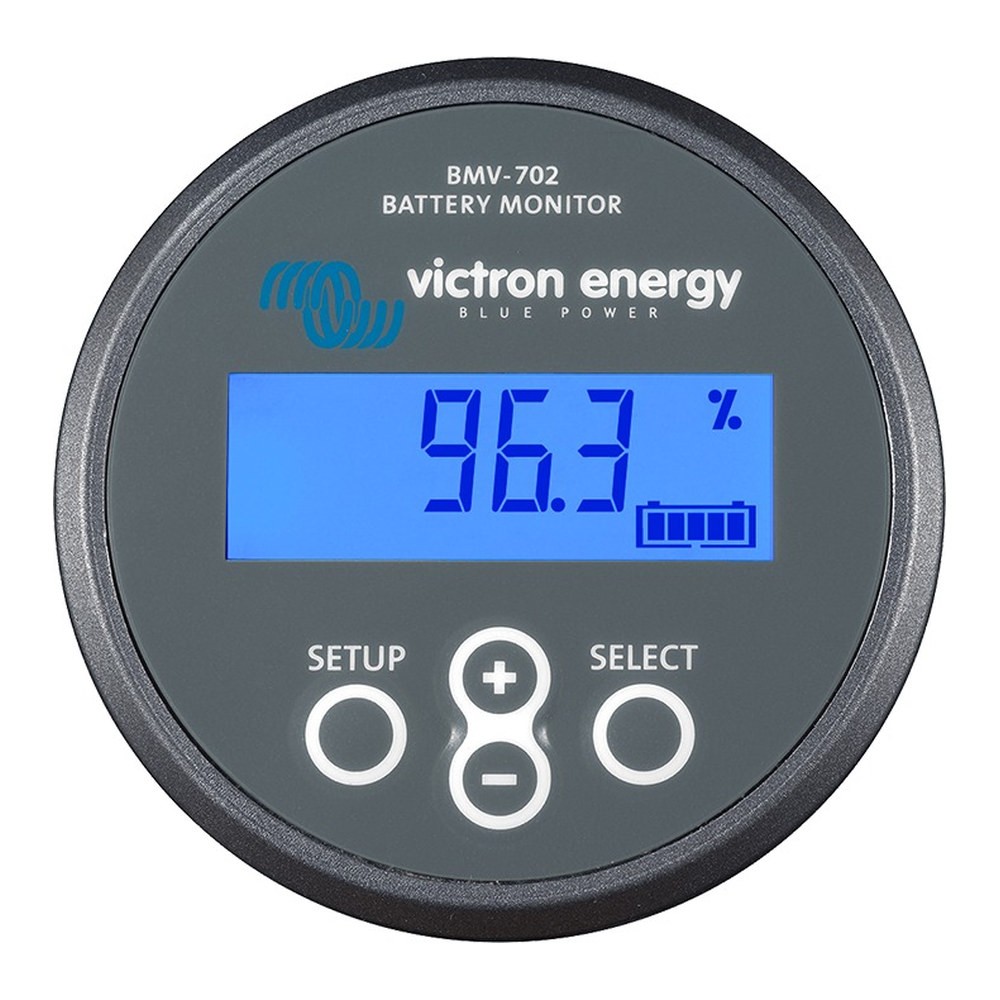

Victron Battery Monitor BMV-702

Battery Monitor Victron BMV-702

€158 Save €32
€126 Tax included

€105 Tax excluded

The Victron BMV-702 battery monitor is a high-precision battery monitor with a rated current of 500 A that calculates consumption in amp-hours and the battery state of charge. It has an input for a second battery and an optional temperature sensor. The battery capacity range is 1-9999 Ah, and communication is via VE.Bus.

Reference BAM010702000

Victron Energy commercial warranty: 5 years for defects in materials and workmanship, handled through us as the seller. In addition to the legal guarantee. Conditions

Your legal guarantee rights

Legal guarantee

EU harmonised notice on the legal guarantee of conformity

More information: europa.eu/youreurope/guarantees
Open the notice at full size

Battery Monitor Victron BMV-702 - High-precision battery monitor, 500 A

Battery Monitor Victron BMV-702 is a high-precision battery monitor with a 500 A shunt that calculates consumption in amp-hours and the battery state of charge. It has an input for a second battery and an optional temperature sensor. It is flush-mounted and communicates via VE.Bus.

Main features:

  • Rated current: 500 A
  • Supply voltage: 6.5-95 V DC
  • Battery capacity: 1-9999 Ah
  • Communication: VE.Bus
  • Current accuracy: 0.4 %
  • Ingress protection: IP55, not for outdoor use
  • Auxiliary battery: input 6.5-95 V

The essential function of a battery monitor is to calculate the amp-hour consumption and the state of charge of a battery. Amp-hour consumption is calculated by integrating the current flowing into or out of the battery.

It has an auxiliary input for the voltage of a second battery (6.5-95 V) and an optional temperature sensor (ASS000100000), with a measuring range of -20 to 50 °C. It is supplied with a 500 A / 50 mV shunt, a positive cable and an auxiliary cable of 1.5 m with a 1 A fuse, plus a 6-wire UTP cable of 10 m with RJ12 connectors.

Technical specifications

Supply voltage range6.5 … 95 VDC
Rated current500 A
Battery capacity range1 … 9999 Ah
Current consumption4 mA
Input voltage range, auxiliary battery6.5 … 95 VDC
Operating temperature range-40 … 50 °C
Auxiliary input for second battery voltageYes
Temperature sensorOptional (ASS000100000)
Temperature measurement range-20 … 50 °C
Communication portVE.Bus
BluetoothNo
Programmable relayNormally open 60V / 1A
DisplayYes
Visual alarm on the deviceYes
Audible alarm on the deviceYes
Current measurement resolution0.01 A
Voltage measurement resolution0.01 V
Capacity measurement resolution0.1 Ah
State-of-charge measurement resolution0.1 %
Time-remaining measurement resolution1 min
Temperature resolution1 °C
Measurement accuracy0.4 %
Current measurement accuracy0.4 %
Voltage measurement accuracy0.3 %
Positive cable1.5 m cable with 1 A fuse
Auxiliary cable1.5 m cable with 1 A fuse
Shunt connection terminalsM10 screws
Display-to-shunt cable6-wire UTP, 10 meters, with RJ12 connectors
ColourGrey
Ingress protectionIP55 (not for outdoor use)
InstallationFlush mounting
Front diameter63 mm
Front frame69 x 69 mm
Body diameter52 mm
Body depth31 mm
Shunt500A / 50mV (included)
SafetyEN-IEC 60335-1
Emission and immunityEN 55014-1, EN 55014-2
Automotive directiveECE R10-4, EN 50498
Data retention period46 days

Data sheet

Reference
BAM010702000
Brand
Victron Energy
Product type
Shunt and battery monitor
DC input voltage range
6.5-95 V
Rated current (exact)
500 A
Communication interfaces
VE.Direct
Programmable relay
Yes
Ingress protection (IP)
IP55
Operating temperature
-40 ... 50 °C
Colour
Gray
Standards and compliance
EN-IEC 60335-1, ECE R10-4, EN 50498, EN 55014-1

We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
