€61 Tax excluded

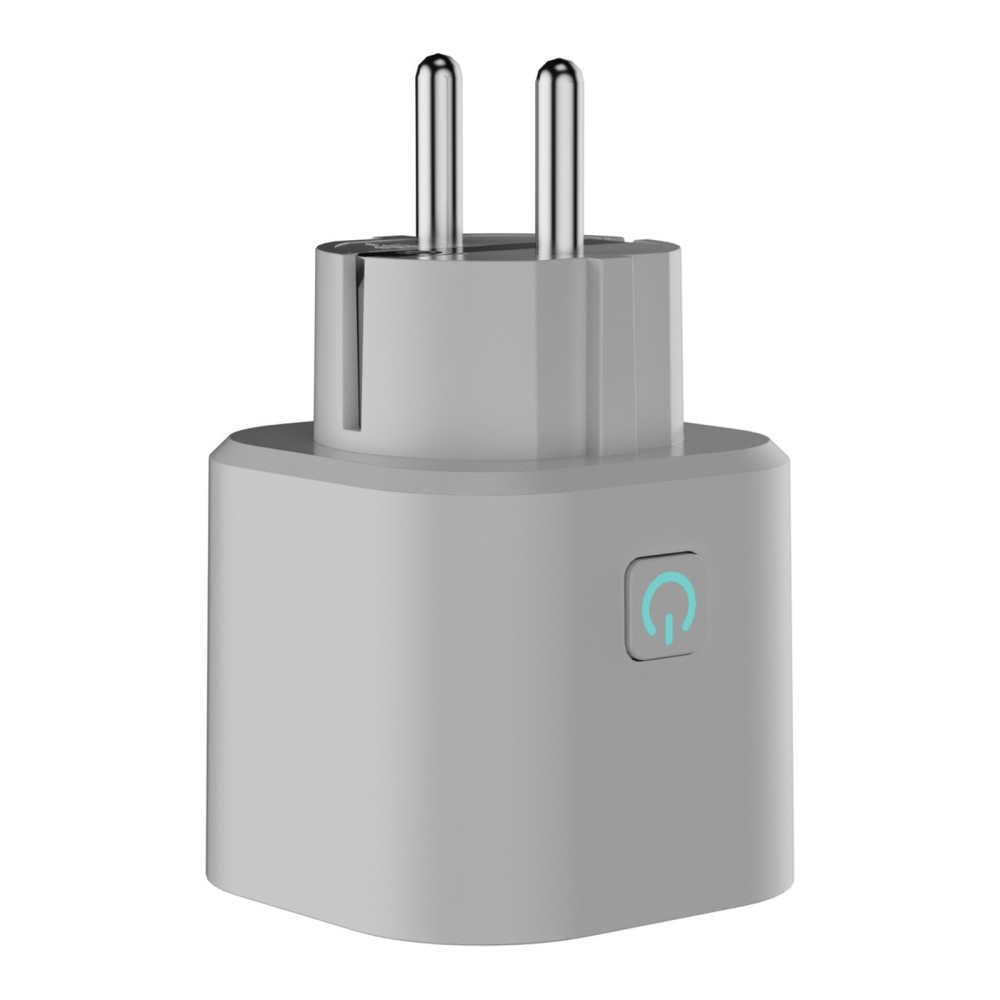

SUN-SMART-PLUG01-F is a Deye smart plug with LoRa communication, for loads up to 16 A at 220-250 V AC. It allows power monitoring and control via Deye Cloud, strategies by time, SOC and grid status, and the definition of critical and non-critical loads. Flame-retardant housing, Class I protection, IP20.
SUN-SMART-PLUG01-F is a Deye smart plug with LoRa communication that makes any connected appliance controllable. It allows real-time power monitoring and control via Deye Cloud, with strategies defined by time, battery level (SOC) and grid status.
The plug goes directly into the wall socket and makes the connected appliance controllable. Custom strategies can be defined by time, SOC and grid status, and critical and non-critical loads are easy to define.
LoRa communication offers low latency and long range, and the system can also work offline. The plug complies with VDE 0620-2-1 and EN 61058 and operates from -40 to 60 °C.
| Rated voltage | 220-250 V AC |
|---|---|
| Maximum current | 16 A AC |
| Frequency and range | 50 Hz (45-55 Hz) / 60 Hz (55-65 Hz) |
| Connection | Plug-type |
| Communication type | LoRa |
| LoRa communication distance | About 200 m (barrier free) |
| Working temperature range | -40 ... 60 °C |
| Permissible ambient humidity | 0-95% RH |
| Ingress protection (IP) rating | IP20 |
| Protection level | Class I |
| Allowable altitude | Max. 3000 m |
| Product size (width x height x depth) | 51.2 x 51.2 x 64 mm |
| Weight | 0.08 kg |
| Standard | VDE 0620-2-1, EN 61058 |
| LoRa frequency range | 863-870 MHz |
| Antenna | Internal antenna |
We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
