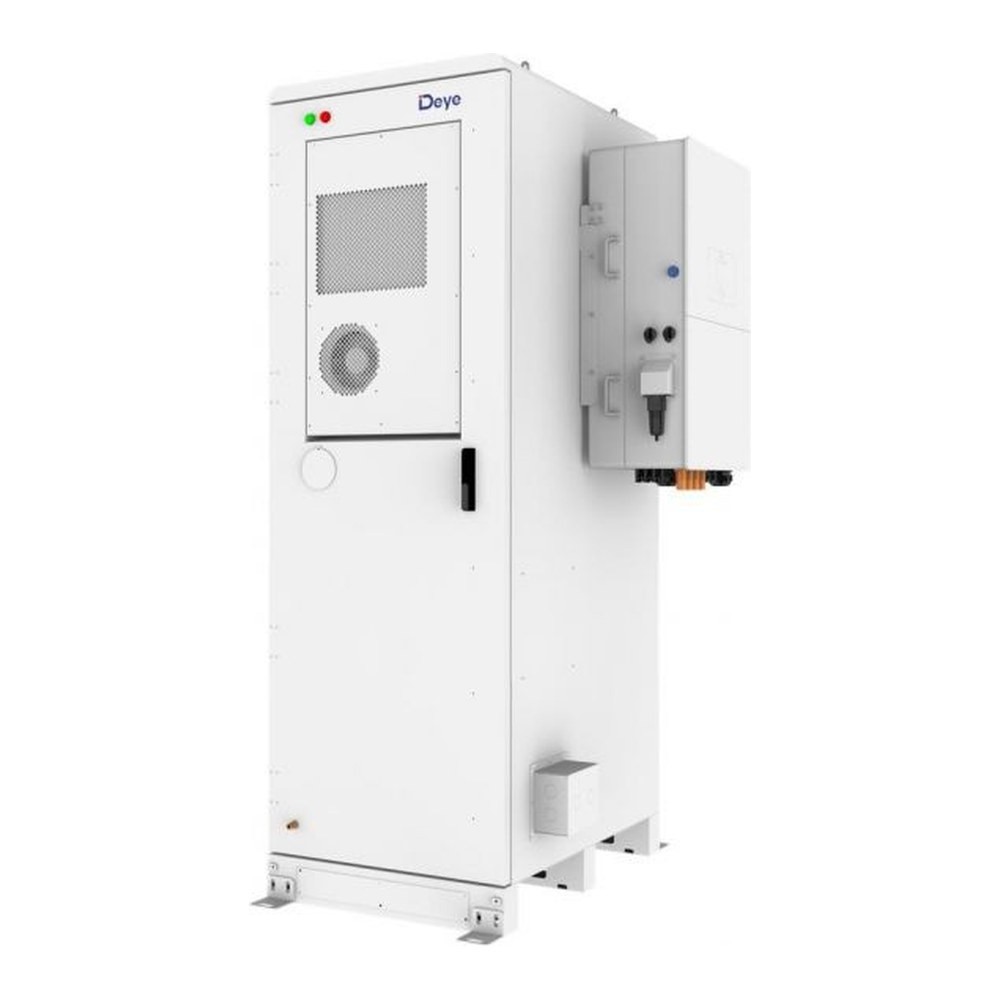

Deye energy storage system, 61.44 kWh, HV, IP55, GE-F60
614.4 V
€21,528
Tax included
€17,940 Tax excluded
GE-F60 is a Deye HV storage cabinet with 61.44 kWh of nominal energy and 55.29 kWh of usable energy, with 12 LiFePO4 modules in series and a nominal voltage of 614.4 V. The enclosure has IP55 protection, aerosol fire suppression and detection of combustible gas, smoke and temperature, and weighs approximately 1070 kg.
GE-F60 - Outdoor HV storage cabinet, 61.44 kWh

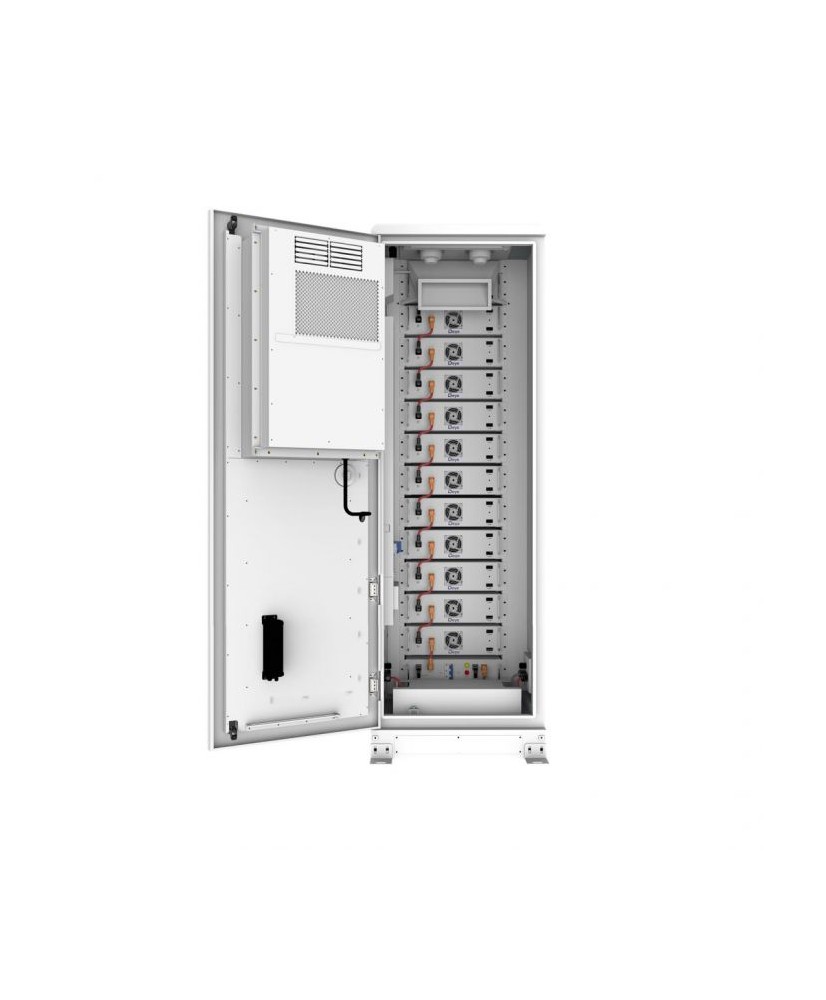

GE-F60 is a high voltage energy storage cabinet with lithium iron phosphate (LiFePO4) batteries from the Deye series for small-scale commercial and industrial applications. It contains 12 modules of 5.12 kWh in series, with a nominal energy of 61.44 kWh and a nominal voltage of 614.4 V, in an IP55 enclosure with aerosol fire suppression and gas detection.
Main features:
- Nominal energy: 61.44 kWh
- Usable energy: 55.29 kWh (90 % DoD)
- Nominal voltage: 614.4 V
- Voltage range: 480 ... 700 V
- Nominal current: 100 A, peak discharge 125 A
- Communication: CAN2.0 and RS485
- Ingress protection: IP55
The cabinet has a local management system that monitors voltage, current, temperature, humidity and smoke, and the BMS balances the capacity of the batteries. Safety is provided by aerosol fire suppression, detection of combustible gas, smoke and temperature, an active exhaust system and a fire alarm; the product supports black start and off-grid operation.
The cabinet is combined with an external 50 kW inverter. Up to 6 units can be connected in DC parallel (up to 50 kW and 360 kWh) and up to 10 groups in AC parallel (up to 500 kW and 3600 kWh). Cycle life is at least 6000 cycles at 25 ± 2 °C and 0.5C, down to 70 % of capacity.
Technical specifications
| Cell chemistry | LiFePO4 |
|---|---|
| Module energy | 5.12 kWh |
| Module nominal voltage | 51.2 V |
| Module capacity | 100 Ah |
| Battery modules in series | 12 |
| System nominal voltage | 614.4 V |
| System operating voltage | 480 ... 700 V |
| System energy | 61.44 kWh |
| System usable energy | 55.29 kWh (90 % DoD) |
| Rated DC power | 61.44 kW |
| Recommended charge/discharge current | 50 A |
| Nominal charge/discharge current | 100 A |
| Peak discharge current | 125 A (2 minute, 25 °C) |
| Operating temperature | -30 ... 60 °C (reducere de putere peste 45 °C) |
| Storage temperature | 0 ... 35 °C |
| Communication port | CAN2.0 / RS485 |
| Humidity | 5 ... 85 % RH |
| Maximum altitude | 2000 m |
| Ingress protection | IP55 |
| Installation | Floor mounted |
| Recommended depth of discharge | 90 % |
| Cycle life | ≥ 6000 (25 ± 2 °C, 0.5C / 0.5C, EOL 70 %) |
| Certification | UN38.3, CB, CE, CEC, IEC 62040 |
| Dimensions (W x D x H) | 783 x 1059 x 2235 mm |
| Approximate weight | 1070 kg |
Data sheet
- Reference
- BOS-G GE F60
- Product type
- Battery
- Battery chemistry
- LiFePO4 (lithium iron phosphate)
- Battery voltage
- HV (high voltage)
- Nominal voltage (exact)
- 614.4 V
- Nominal capacity
- 100 Ah
- Capacity class
- 20+ kWh
- Nominal energy
- 61.44 kWh
- Max. continuous discharge current
- 100 A
- Built-in BMS
- Yes
- Max. charge current
- 100 A
- Communication interfaces
- CAN-bus
RS485 - Dimensions (H x W x D)
- 2235 x 783 x 1059 mm
- Weight
- 1070 kg
- Ingress protection (IP)
- IP55
- Operating temperature
- -30 ... 60 °C (derating above 45 °C)
- Max. relative humidity
- 85 %
- Standards and compliance
- UN38.3, CB, CE, CEC, IEC 62040
We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
