€1,444 Tax excluded

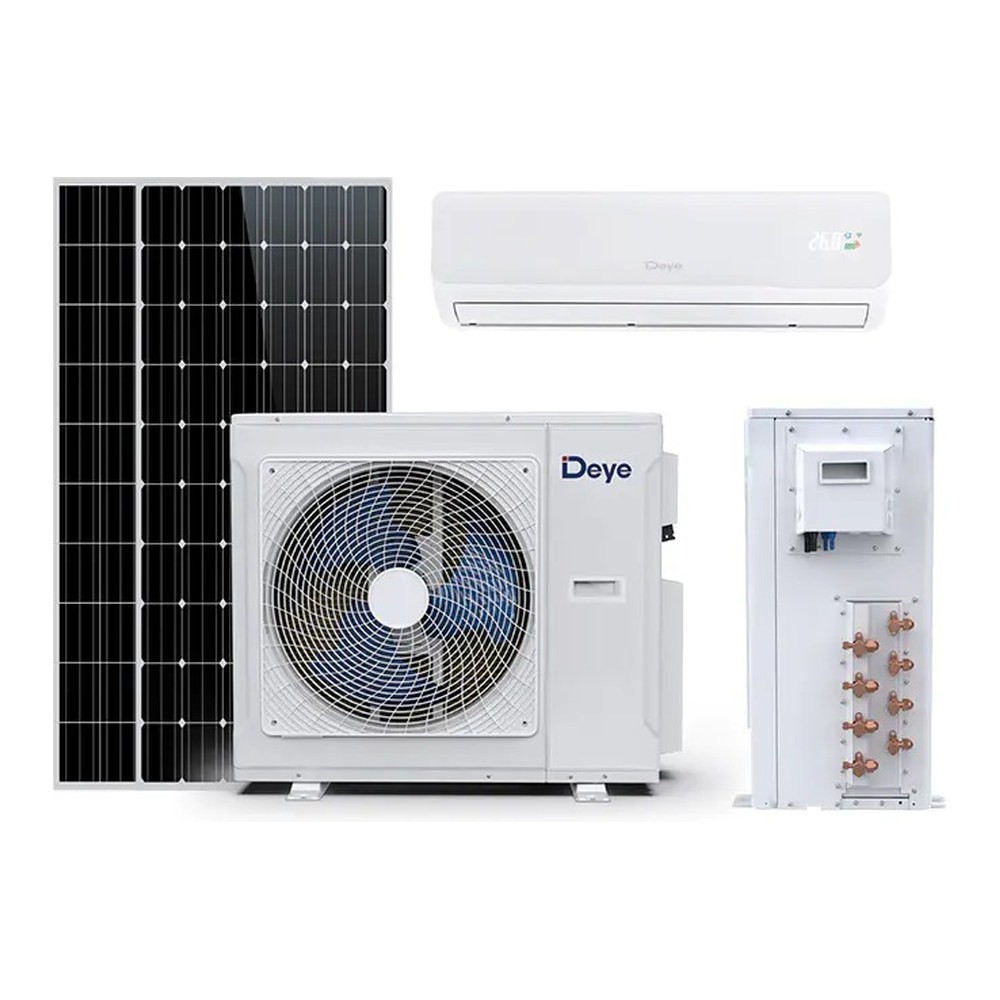

Deye DW3B1-ACDC-24KR2 is a hybrid AC/DC multi split air conditioner with one outdoor unit for 3 indoor units, a cooling capacity of 7.03 kW (24000 BTU, modulating up to 27000 BTU) and a heating capacity of 7.03 kW. It runs on solar panels (Voc 150-410 V DC) or on the grid, with R32 refrigerant and SEER 22.
Deye DW3B1-ACDC-24KR2 is a hybrid AC/DC outdoor unit for multi split systems that supplies up to 3 indoor units. It has a cooling capacity of 7.03 kW (24000 BTU, modulating up to 27000 BTU), runs on solar panels or on the grid and uses R32 refrigerant.
The system uses hybrid AC/DC technology: the outdoor unit can run directly on solar panel energy, on the grid or on a combination, and the DC inverter compressor and electronic expansion valves, in the outdoor and indoor units, ensure high efficiency. The outdoor operating temperature is -10 ... 52 °C for cooling and -15 ... 24 °C for heating.
The outdoor unit connects to 3 indoor units, with 3 x 6.35 mm (liquid) and 3 x 9.52 mm (gas) pipes; the maximum total length is 60 m and the maximum level difference is 15 m. The indoor unit range includes the models DMGA1-ACDC-07KR2 (7000 BTU), DMGA1-ACDC-09KR2 (9000 BTU), DMGA1-ACDC-12KR2 (12000 BTU) and DMGA2-ACDC-18KR2 (17100 BTU), powered by direct current.
| Product type | Air conditioner |
|---|---|
| Power supply | hybrid AC/DC: solar panels and grid |
| AC supply (grid) | 1 phase, 208-230 V, 50-60 Hz |
| DC supply (PV panels) | Voc 150-410 V DC; max. current 13 + 13 A; max. short-circuit current 22 + 22 A; 1 MPPT, 2 strings |
| Cooling capacity | 24000 BTU (7800-27000 BTU), 7.03 kW (2.3-8.70 kW) |
| Cooling power input | 1901 W (560-2468 W) |
| Heating capacity | 24000 BTU (8400-28000 BTU), 7.03 kW (2.46-9.09 kW) |
| Heating power input | 1674 W (560-2216 W) |
| EER (cooling) | 12.6 BTU/W |
| COP (heating) | 14.3 BTU/W |
| Refrigerant | R32 (GWP 675) |
| Outdoor unit noise level | 58 dB(A) |
| Outdoor unit dimensions (W x H x D) | 700 x 888 x 318 mm |
| Outdoor unit weight | 46.5 kg |
| Refrigerant pipes (gas / liquid) | liquid 3 x 6.35 mm (1/4 inch); gas 3 x 9.52 mm (3/8 inch) |
| Max. pipe length | 60 m in total; 30 m for one indoor unit |
| Max. level difference | 15 m between outdoor and indoor unit; 10 m between indoor units |
| Operating temperature | cooling -10 ... 52 °C, heating -15 ... 24 °C (outdoor temperature) |
We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the manufacturer’s datasheet.
