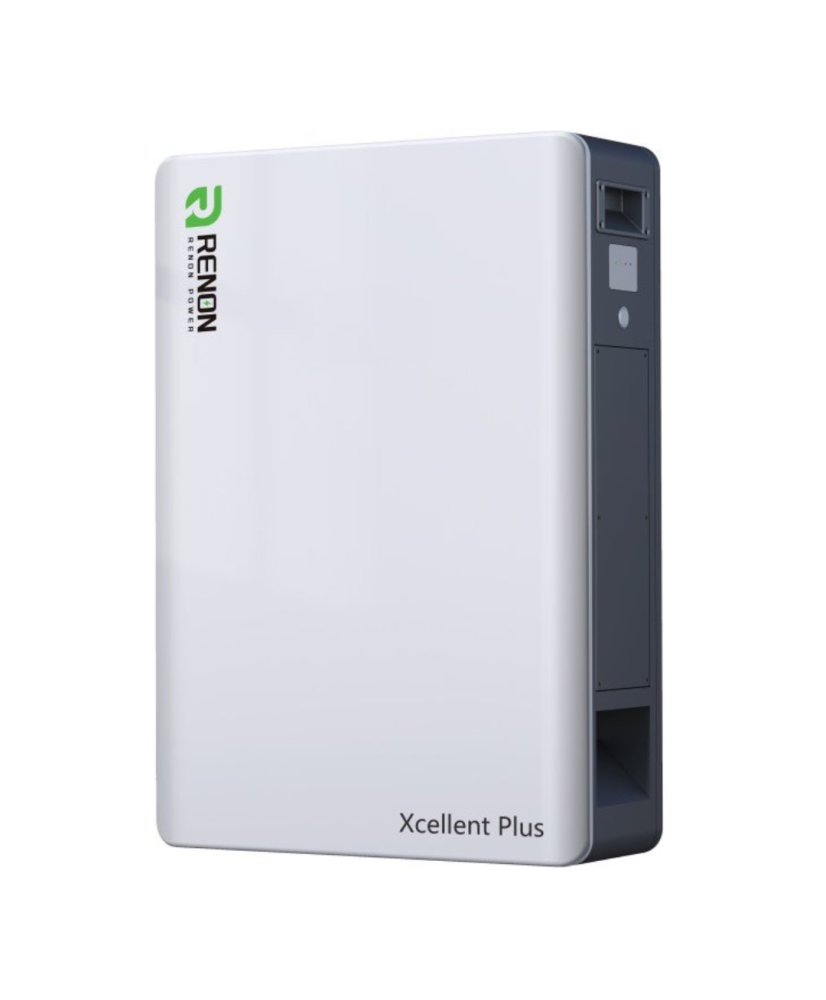

Renon Accumulator LiFePO4 Xcellent Plus-H 16 kWh 51.2V-314Ah IP65
The Renon Xcellent Plus-H battery is an advanced energy storage solution designed for maximum performance, safety and durability. With a capacity of 16 kWh and a nominal voltage of 51.2V, this model uses LiFePO4 (lithium iron phosphate) technology, offering an extended lifespan and complete protection for residential and commercial applications. The Plus-H version includes an integrated heating system, ensuring optimal performance even in low temperature conditions.
Main features:
- Storage capacity: 16 kWh
- Nominal voltage: 51.2V
- Battery capacity: 314Ah
- Technology: LiFePO4 – superior thermal stability and safety
- Lifespan: Up to 8000 charge cycles
- Protection: IP65 rating – water and dust resistant, suitable for indoor or outdoor use
- Modern design: Compact, elegant and silent, ideal for residential installation
- Integrated heating: Smart thermal film for reliable operation at low temperatures
Advantages:
- Self-heating function: Automatically activates heating when the cell temperature drops below 5°C and charging current (>3A) is present
- Flexible installation: Can be mounted on the wall or floor
- High scalability: Up to 15 units can be connected in parallel
- Extended compatibility: Support for CAN, RS485 and RS232 communication
- Silent operation: Natural cooling, no noise
- Certified safety: According to IEC62619, UN38.3, CEI 0-21, EN-61000 standards
Technical specifications:
- Model: R-XC016161-H
- Technology: LiFePO4
- Nominal energy: 16 kWh
- Operating voltage: 43.2V ~ 59.2V
- Maximum discharge current: 200A
- Output power: 10.2 kW
- Dimensions: 560 × 200 × 800 mm
- Weight: 126 kg
- Charging temperature: 0°C ~ 50°C (with heating system active at <5°C)
- Discharge temperature: –20°C ~ 50°C
- Maximum operating altitude: 4000 m
- Communication: RS485 / CAN / RS232
- Warranty: 10 years
Frequently Asked Questions (FAQs):
- What does the Xcellent Plus-H version bring?
It includes an internal heating system that maintains battery performance at low temperatures, increasing efficiency and safety in winter conditions.
- Can it be installed outdoors?
Yes, thanks to IP65 protection, it is dust and water resistant.
- How long is the battery life?
Up to 8000 charge cycles, providing a long service life.
For a reliable, silent and adaptable energy storage system for all environmental conditions, Renon Xcellent Plus-H is the ideal choice for modern, sustainable and safe applications.
