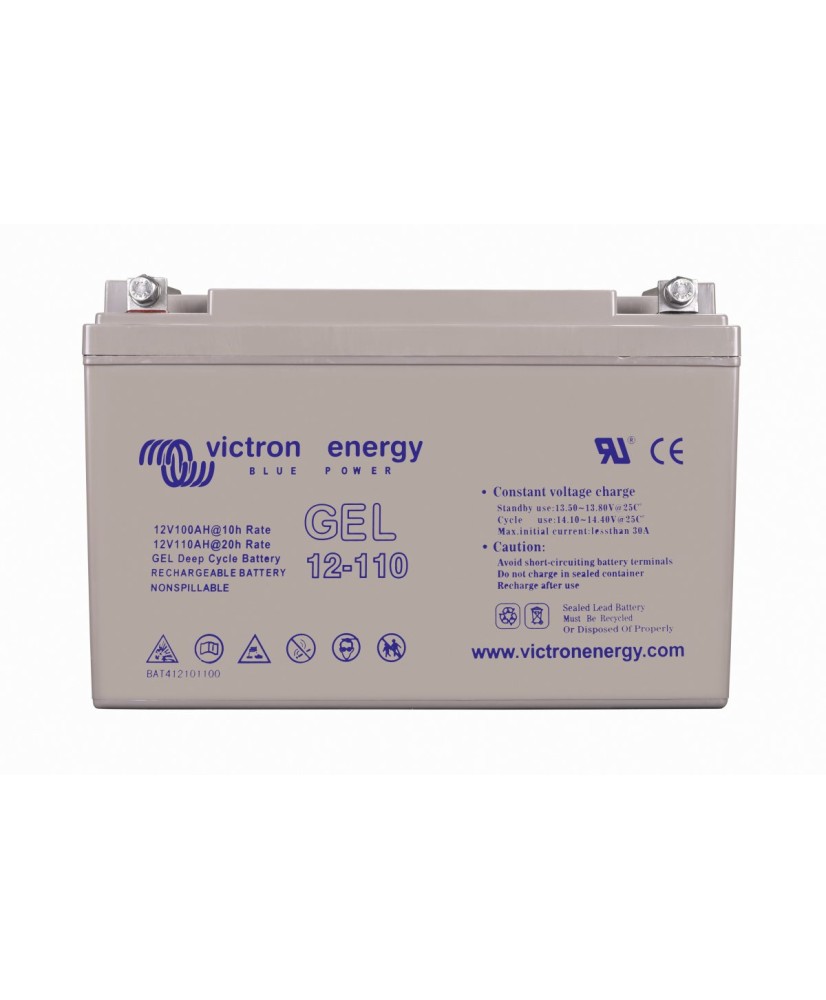

Gel Deep Cycle 12V/110Ah - Deep cycle GEL battery 12V
Gel Deep Cycle 12V/110Ah is a sealed lead-acid (VRLA) battery with gel-immobilised electrolyte, designed for repeated deep cycling and a 12-year float design life. It is used in off-grid systems, caravans, motorhomes and boats. Lead-calcium grids keep self-discharge below 2% per month at 20 °C.
Main features:
- Voltage and capacity: 12 V, 110 Ah (C20)
- Float design life: 12 years at 20 °C
- Cycle life: 500 at 80% DoD, 750 at 50% DoD
- Cold cranking amps (CCA): 450 A
- Terminals: flange type with M8 bolts
- Dimensions and weight: 330 × 171 × 220 mm, 33 kg
VRLA AGM: design life 7-10 years
VRLA GEL: design life 12 years
The AGM range has very low internal resistance making them particularly suitable for high current discharge applications such as for inverters, thrusters and winches.
The GEL model range offers best deep cycle durability and overall longer life. The use of high purity materials and lead calcium grids ensure that for both AGM and GEL products have particularly low self-discharge so that they will not go flat during long periods without charge. Both ranges are supplied with M8 drilled, flat copper terminals ensuring best possible connection contact and eliminating the need for battery terminals. The batteries are compliant with both CE and UL specifications in ABS fireproof containers and come with Victron's 2 year world-wide warranty.
Technical specifications
| Nominal battery voltage | 12 V |
|---|
| Nominal battery voltage (class) | 12 |
|---|
| Nominal battery capacity | 110 Ah |
|---|
| Capacity (C20) | 100 % |
|---|
| Capacity (C10) | 92 % |
|---|
| Capacity (C5) | 85 % |
|---|
| Chemistry | Lead-acid |
|---|
| Technology | Flat plate GEL (electrolyte is immobilized as gel) |
|---|
| Seal type | Sealed VLRA (Valve Regulated Lead Acid) |
|---|
| Cold cranking amps (CCA) | 450 A |
|---|
| Reserve capacity | 150 Ah |
|---|
| Float design life | 12 years at 20°C |
|---|
| Cycle design life at 80 % DoD | 500 cycles |
|---|
| Cycle design life at 50 % DoD | 750 cycles |
|---|
| Cycle design life at 30 % DoD | 1800 cycles |
|---|
| Recommended absorption charge voltage | 14.2 … 14.6 V |
|---|
| Recommended float charge voltage | 13.5 … 13.8 V |
|---|
| Recommended storage charge voltage | 13.2 … 13.5 V |
|---|
| Battery terminals | Flange terminals with M8 bolts |
|---|
| Terminal material | Copper |
|---|
| Weight | 33 kg |
|---|
| Length | 330 mm |
|---|
| Width | 171 mm |
|---|
| Height | 220 mm |
|---|
