€22,567 Tax excluded

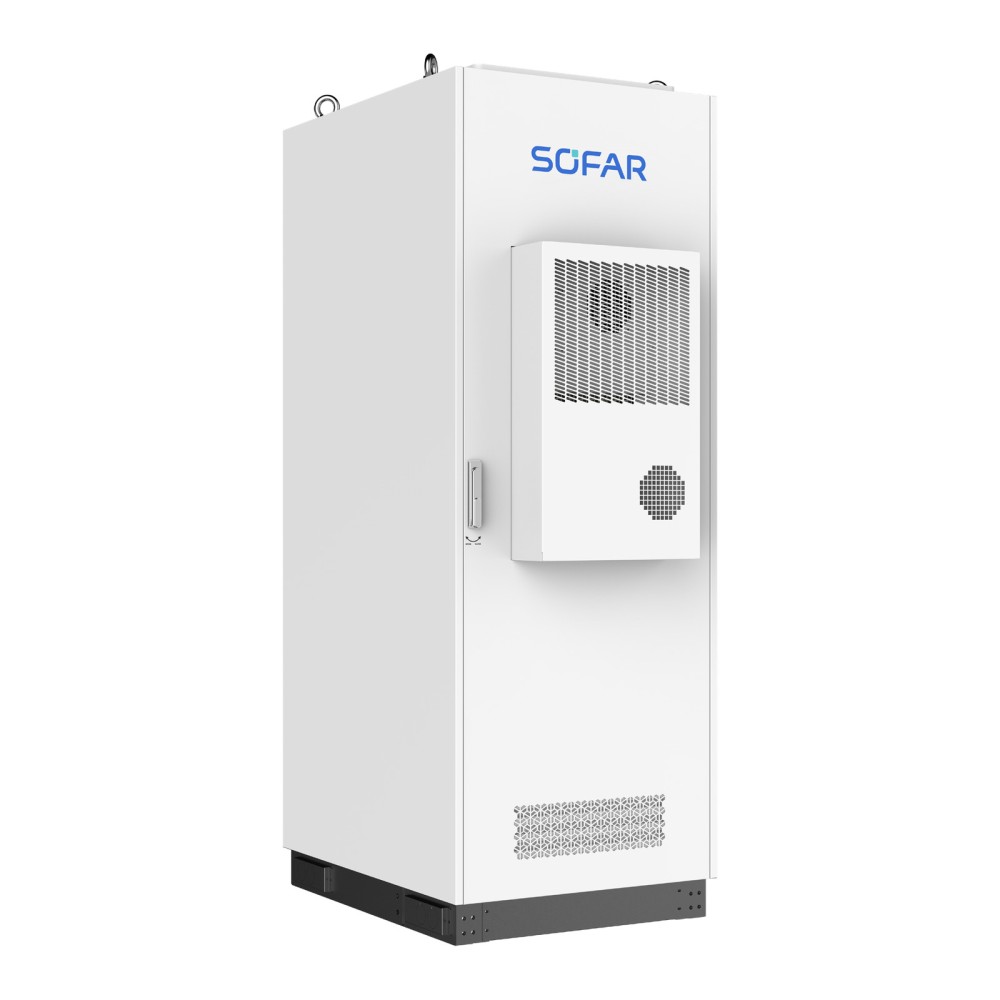

CBS8000-96KWH is a SOFAR LiFePO4 battery cabinet of 96.46 kWh (314 Ah, 600 V nominal) with a rated power of 46.08 kW, charging up to 150 A and discharging up to 200 A. It has a built-in air conditioner, a double fire suppression system, IP55 and C4. It weighs 1090 kg and measures 2100 x 750 x 1150 mm.
CBS8000-96KWH is a high-voltage LiFePO4 battery cabinet, pre-installed in the factory, with a total energy of 96.46 kWh (6 battery packs), a built-in air conditioner and IP55 protection with C4 corrosion resistance. It connects to SOFAR hybrid inverters with an HV battery.
The cabinet contains 16 kWh battery packs with BMS, a battery control unit (BCU), a thermal management system, a fire suppression system and a built-in air conditioner (1.5 kW cooling, 1 kW heating). Each battery module has active balancing. Fire protection is by aerogel; perfluorohexanone is optional.
The cabinet is installed on the floor, on a load-bearing foundation, and is moved with a forklift rated for more than 4 t. The operating temperature is -20 ... 50 °C, with derating above 45 °C; to charge below 0 °C the battery heating function must be enabled. Communication with the inverter is CAN. The SOFAR manuals describe it together with the HYD-40K...60K-T1 and 80-125KTLX-G4-ESS inverters.
| Model | CBS8000-96KWH |
|---|---|
| Battery type | LiFePO4 (lithium iron phosphate) |
| Rated capacity | 314 Ah |
| Pack configuration | 1P16S |
| Pack quantity | 6 |
| Battery total energy | 96.46 kWh |
| Rated power | 46.08 kW |
| Nominal voltage | 600 V |
| Operating voltage range | 600-1000 V |
| Max. charging current | 150 A |
| Max. discharging current | 200 A |
| Communication | CAN |
| Protective class | I |
| Ingress protection | IP55 |
| Anti-corrosion grade | C4 |
| Operating temperature range | -20 ... 50 °C (derating above 45 °C) |
| Relative humidity range | 5-95 % |
| Max. operating altitude | 3000 m (derating above 2000 m) |
| Cooling | Intelligent airflow, air conditioner |
| Air conditioner power | 1.5 kW cooling, 1 kW heating |
| Noise | 65 dB (typical) |
| Fire protection | Aerogel (optional perfluorohexanone) |
| Dimensions (W x H x D) | 750 x 2100 x 1150 mm (±20 mm) |
| Weight | 1090 kg |
| Installation | Floor mounted |
| Max. cabinets in parallel | 4 (384 kWh) |
We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
Compatibility is calculated automatically from the manufacturers’ technical data and is for information only. For complex systems, we recommend having the configuration checked by a consultant before ordering. Details in the Terms and conditions
