Deye battery module, 5.12 kWh, 51.2 V LiFePO4, BOS-G-Pack5.1

Deye battery module, 5.12 kWh, 51.2 V LiFePO4, BOS-G-Pack5.1

51.2 V
€1,048 Tax included

€873 Tax excluded

BOS-G-Pack5.1 is a 51.2 V, 100 Ah, 5.12 kWh LiFePO4 battery module for Deye BOS-G Pro high voltage systems. It has a nominal charge and discharge current of 100 A, IP20 protection and a weight of 46 kg. It mounts in a standard 19 inch rack together with an HV control box.

Reference BOS-G-Pack5.1

Your legal guarantee rights

Legal guarantee

EU harmonised notice on the legal guarantee of conformity

More information: europa.eu/youreurope/guarantees
Open the notice at full size

BOS-G-Pack5.1 - HV LiFePO4 battery module, 5.12 kWh

BOS-G-Pack5.1 is a 51.2 V, 100 Ah, 5.12 kWh lithium iron phosphate (LiFePO4) battery module designed for the Deye BOS-G Pro high voltage storage series. The modules mount in a standard 19 inch rack and connect in series, from 5 to 16 modules, to build systems from 25.6 to 81.92 kWh.

Main features:

  • Nominal energy: 5.12 kWh
  • Nominal voltage: 51.2 V
  • Rated capacity: 100 Ah
  • Nominal current: 100 A, peak discharge 120 A
  • Operating temperature: charge 0 ... 55 °C, discharge -20 ... 55 °C
  • Ingress protection: IP20
  • Weight: 46 kg

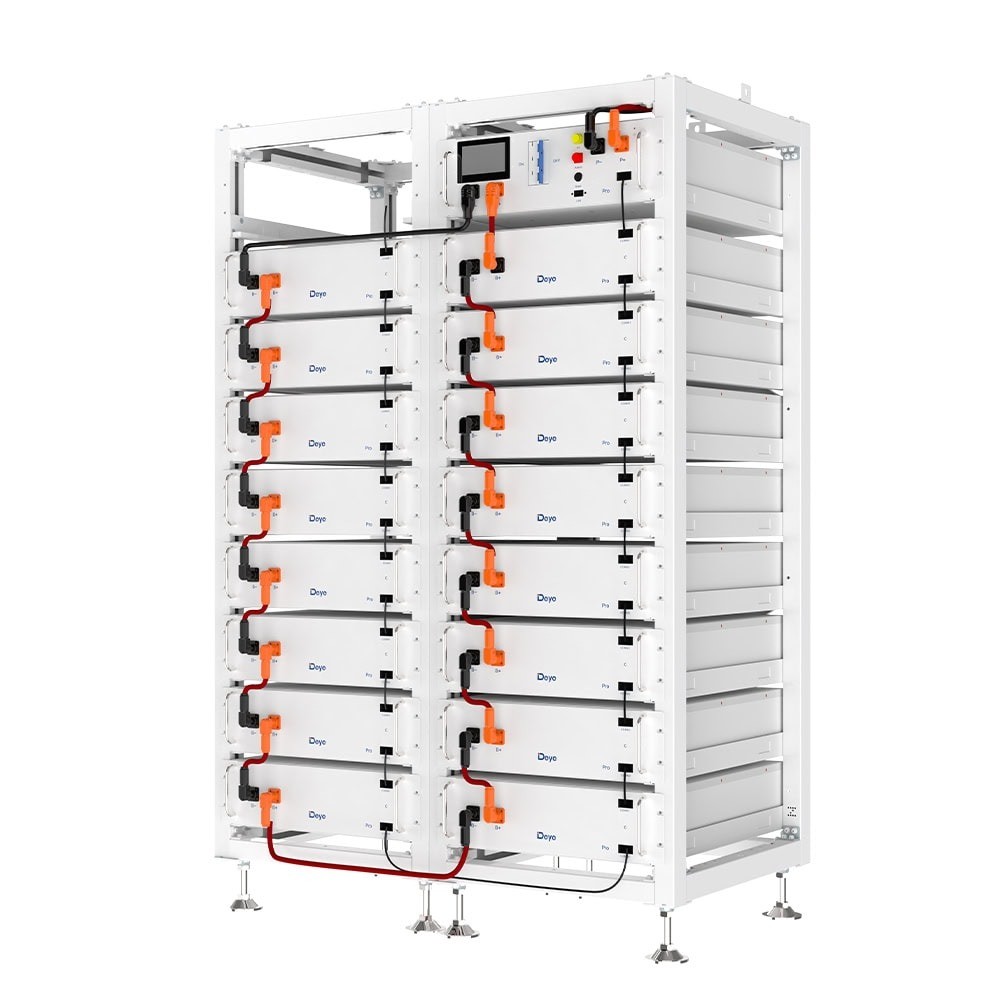

The module belongs to the Deye BOS-G Pro series: 5 to 16 modules in series form a system with a nominal voltage of 256 to 819.2 V, and systems can be expanded by connecting up to 16 racks in parallel. Cycle life is 6000 cycles at 25 ± 2 °C and 0.5C, down to 70 % of capacity, with a recommended depth of discharge of 90 %.

The module is used in a standard 19 inch rack (3U-HRACK or 3U-LRACK) together with a BOS-G-PDU-2 HV control box. The standard configuration of the module includes a 160 mm communication cable and a 200 mm power cable.

Technical specifications

Cell chemistryLiFePO4
Nominal energy5.12 kWh
Nominal voltage51.2 V
Rated capacity100 Ah
Nominal charge/discharge current100 A
Peak discharge current120 A
Charging temperature0 ... 55 °C
Discharging temperature-20 ... 55 °C
Storage temperature0 ... 35 °C
Ingress protectionIP20
Dimensions (W x D x H)440 x 585 x 133 mm
Approximate weight46 kg

Data sheet

Reference
BOS-G-Pack5.1
MPN
BOS-G-Pack5.1
Product type
Battery
Battery chemistry
LiFePO4 (lithium iron phosphate)
Battery voltage
HV (high voltage)
Nominal voltage (exact)
51.2 V
Nominal capacity
100 Ah
Capacity class
2.5-6 kWh
Nominal energy
5.12 kWh
Max. continuous discharge current
100 A
Max. charge current
100 A
Dimensions (H x W x D)
133 x 440 x 585 mm
Weight
46 kg
Ingress protection (IP)
IP20
Operating temperature
charge 0 ... 55 °C, discharge -20 ... 55 °C
Standards and compliance
UN38.3, CE, CE-EMC, IEC62040, CEC, VDE

We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.

Compatibility

Other compatible products

Compatibility is calculated automatically from the manufacturers’ technical data and is for information only. For complex systems, we recommend having the configuration checked by a consultant before ordering. Details in the Terms and conditions
