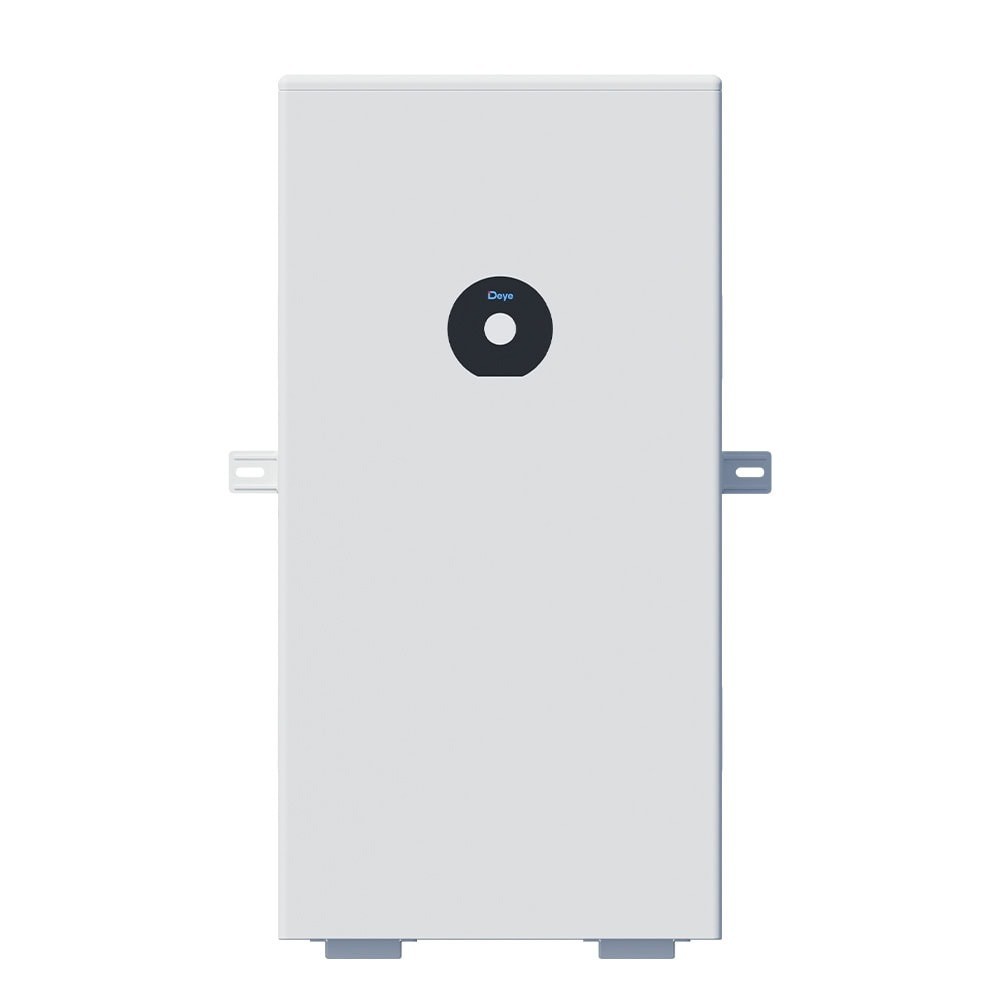

Deye battery, 16 kWh, 51.2 V LiFePO4, 314 Ah, IP65, SE-F16 Max

Deye battery, 16 kWh, 51.2 V LiFePO4, 314 Ah, IP65, SE-F16 Max

51.2 V
€2,585 Tax included

€2,154 Tax excluded

Deye SE-F16 Max is a 51.2 V, 314 Ah, 16 kWh LiFePO4 battery with IP65 ingress protection, a maximum output power of 11.8 kW, a continuous current of 160 A for charging and 230 A for discharging, an LCD screen and a built-in circuit breaker. It communicates over CAN2.0, RS485 and Bluetooth, with 8000 cycles.

Reference SE-F16 Max

Your legal guarantee rights

Legal guarantee

EU harmonised notice on the legal guarantee of conformity

More information: europa.eu/youreurope/guarantees
Open the notice at full size

Deye SE-F16 Max - 16 kWh LiFePO4 battery, IP65

Deye SE-F16 Max is a 51.2 V, 314 Ah (16 kWh) LiFePO4 battery with IP65 ingress protection, an intelligent BMS with active fuse and an LCD screen. It is wall-mounted or floor-mounted, can deliver an output power of up to 11.8 kW and communicates over CAN2.0, RS485 and Bluetooth.

Main features:

  • Nominal voltage: 51.2 V
  • Capacity: 314 Ah, 16 kWh
  • Max. output power: 11.8 kW
  • Max. continuous current: 160 A charge, 230 A discharge
  • Cycle life: 8000 cycles (down to 70 % capacity)
  • Communication: CAN2.0, RS485, Bluetooth
  • Ingress protection: IP65

The battery has a flat, integrated design with an intelligent BMS with active fuse and intelligent thermal management. The operating voltage range is 44.8-57.6 V, the usable energy is 16 kWh, the maximum DC round-trip efficiency is 95 % and the recommended depth of discharge is 90 %. The charge / discharge rate is 0.5C / 0.7C.

Up to 32 modules can be connected in parallel (64 with CAN-Bridge) and local monitoring is done through the Bluetooth app. The operating temperature is 0 ... 55 °C for charging and -20 ... 55 °C for discharging, and the lifetime energy throughput is 50 MWh.

Technical specifications

Product typeBattery
Battery chemistryLiFePO4 (lithium iron phosphate)
Battery voltage class48 V
Nominal voltage51.2 V
Operating voltage range44.8-57.6 V
Rated capacity314 Ah
Nominal energy16 kWh
Usable energy16 kWh
Capacity class6-20 kWh
Max. output power11.8 kW
Recommended charge / discharge current157 A
Max. continuous charge current160 A
Max. continuous discharge current230 A
Peak current280 A (10 s)
Charge / discharge rate0.5C / 0.7C
Recommended depth of discharge90 %
Cycle life8000 cycles (25 ± 2 °C, down to 70 % of capacity)
Max. DC round-trip efficiency95 %
Parallel connectionup to 32 modules (64 with CAN-Bridge)
Communication interfacesCAN2.0, RS485, Bluetooth
Display / indicatorLCD (SOC, alarm)
Built-in circuit breakeryes
Ingress protection (IP)IP65
Operating temperaturecharge 0 ... 55 °C, discharge -20 ... 55 °C
Storage temperature0 ... 35 °C
Max. relative humidity95 % (non-condensing)
Max. operating altitude3000 m
Installationwall or floor
Lifetime energy throughput50 MWh
Standards and complianceUN38.3, CE, CB, UL9540A
Dimensions (height x width x depth)914 x 464 x 244.5 mm (without hanging board and terminals)
Weight118 kg

Data sheet

Reference
SE-F16 Max
MPN
SE-F16 Max
Product type
Battery
Battery chemistry
LiFePO4 (lithium iron phosphate)
Battery voltage
48 V
Nominal voltage (exact)
51,2 V
Nominal capacity
314 Ah
Capacity class
6-20 kWh
Nominal energy
16 kWh
Max. continuous discharge current
230 A
Built-in BMS
Yes
Max. charge current
160 A
Communication interfaces
Bluetooth
CAN-bus
RS485
Dimensions (H x W x D)
914 x 464 x 244,5 mm
Weight
118 kg
Ingress protection (IP)
IP65
Operating temperature
0 ... 55 °C (charge), -20 ... 55 °C (discharge)
Max. relative humidity
95 %
Standards and compliance
UN38.3, CE, CB, UL9540A

We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
