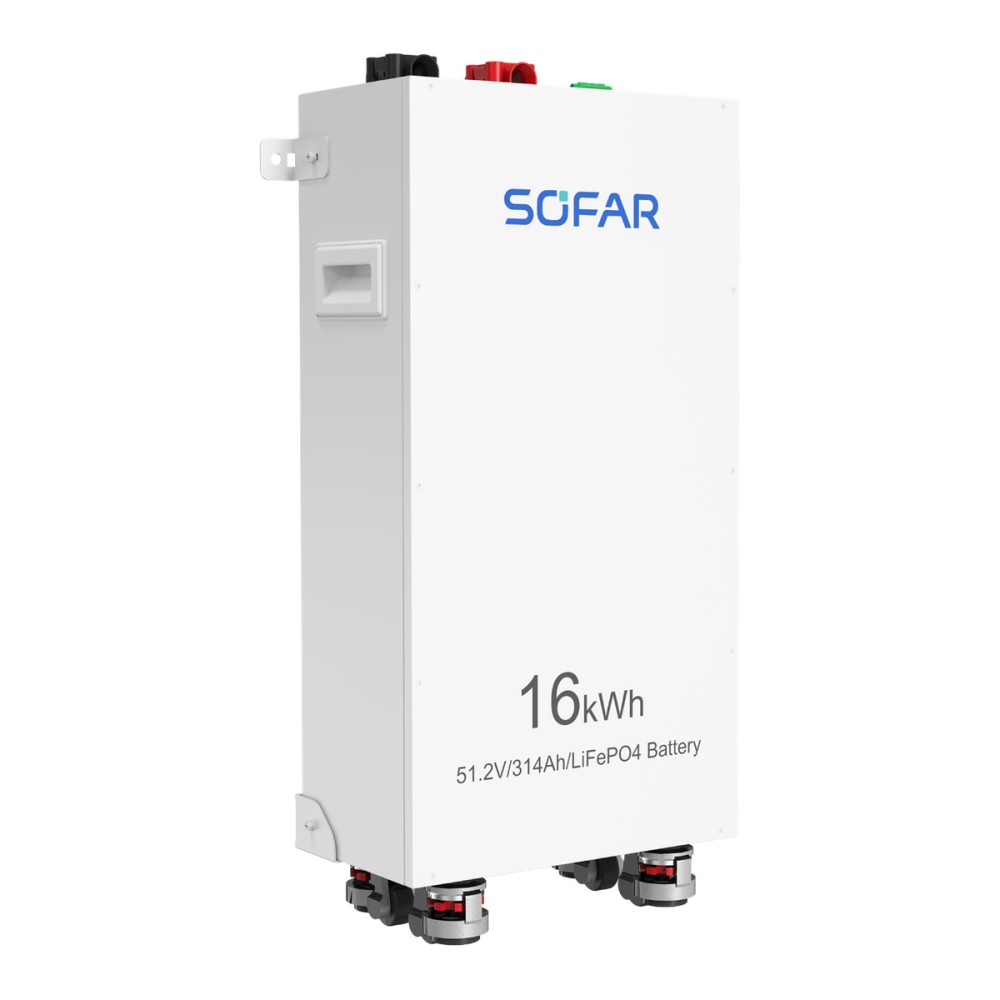

SOFAR battery 16 kWh, 51.2 V LiFePO4, SF-16KWH-L1

Name: SOFAR battery 16 kWh, 51.2 V LiFePO4, SF-16KWH-L1
Brand: SOFAR
SKU: SF-16KWH-L1
Price: 2594.00 EUR
Availability: InStock

51.2 V

€2,594 Tax included

€2,162 Tax excluded

The SF-16KWH-L1 is a 51.2 V, 16 kWh LiFePO4 battery with 14.4 kWh of usable energy. The rated charge and discharge power is 7.5 kW (150 A), and the maximum current is 150 A when charging and 200 A when discharging. Up to 16 units can be connected in parallel. The dimensions are 425 x 860 x 235 mm and the weight is 115 kg.

Reference SF-16KWH-L1

Your legal guarantee rights

SF-16KWH-L1 - 51.2 V and 16 kWh LiFePO4 battery, with wheels

SF-16KWH-L1 is a low-voltage battery with LiFePO4 cells, 51.2 V and 16 kWh (14.4 kWh usable energy), equipped with wheels and an integrated smart BMS.

Main features:

Nominal voltage: 51.2 V (range 44.8-57.6 V)
Energy: 16 kWh (14.4 kWh usable)
Rated power: 7.5 kW (150 A)
Maximum current: 150 A when charging, 200 A when discharging
Depth of discharge: 90 %
Parallel connection: up to 16 units (maximum 256 kWh)
Dimensions and weight: 425 x 860 x 235 mm, 115 kg

The battery has wheels with a rated load of 500 kg that make it easier to move, and units connected in parallel automatically form their communication network. Remote monitoring and OTA updates are carried out through the SOFAR inverter. It is mounted on the floor or on the wall.

The protection rating is IP20, so the battery must be installed indoors only. Charging takes place between 0 and 55 °C and discharging between -20 and 60 °C, at a humidity of 5-95 % and an altitude of up to 4000 m. Communication with the inverter is via CAN. With wheels, the height is 935 mm.

Technical specifications

Cell type	LiFePO4 (lithium iron phosphate)
Total energy	16 kWh
Usable energy	14.4 kWh
Nominal capacity	314 Ah
Nominal voltage	51.2 V
Working voltage range	44.8-57.6 V
Rated charge/discharge power	7.5 kW
Rated charge/discharge current	150 A
Maximum charge/discharge current	150 A / 200 A
Depth of discharge	90 %
Maximum number of units in parallel	16
Communication	CAN
Dimensions (W x H x D)	425 x 860 x 235 mm
Dimensions with wheels (W x H x D)	425 x 935 x 235 mm
Weight	115 kg
Protection rating	IP20
Cooling	Natural
Operating temperature	Charging: 0 ... 55 °C; discharging: -20 ... 60 °C
Relative humidity	5-95 %
Mounting	On wall or on floor
Maximum operating altitude	4000 m
Number of cycles (0.2 C, 25 °C, depth of discharge 100 %)	8000

Data sheet

Reference: SF-16KWH-L1
MPN: SF-16KWH-L1
Product type: Battery
Battery chemistry: LiFePO4 (lithium iron phosphate)
Battery voltage: 48 V
Nominal voltage (exact): 51.2 V
Nominal capacity: 314 Ah
Capacity class: 6-20 kWh
Nominal energy: 16 kWh
Max. continuous discharge current: 150 A
Built-in BMS: Yes
Max. charge current: 150 A
Parallel operation: Yes
Communication interfaces: CAN-bus
Dimensions (H x W x D): 860 x 425 x 235 mm
Weight: 115 kg
Ingress protection (IP): IP20
Operating temperature: Charging 0 ... 55 °C, discharging -20 ... 60 °C
Max. relative humidity: 95 %

We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
