€57 Tax excluded

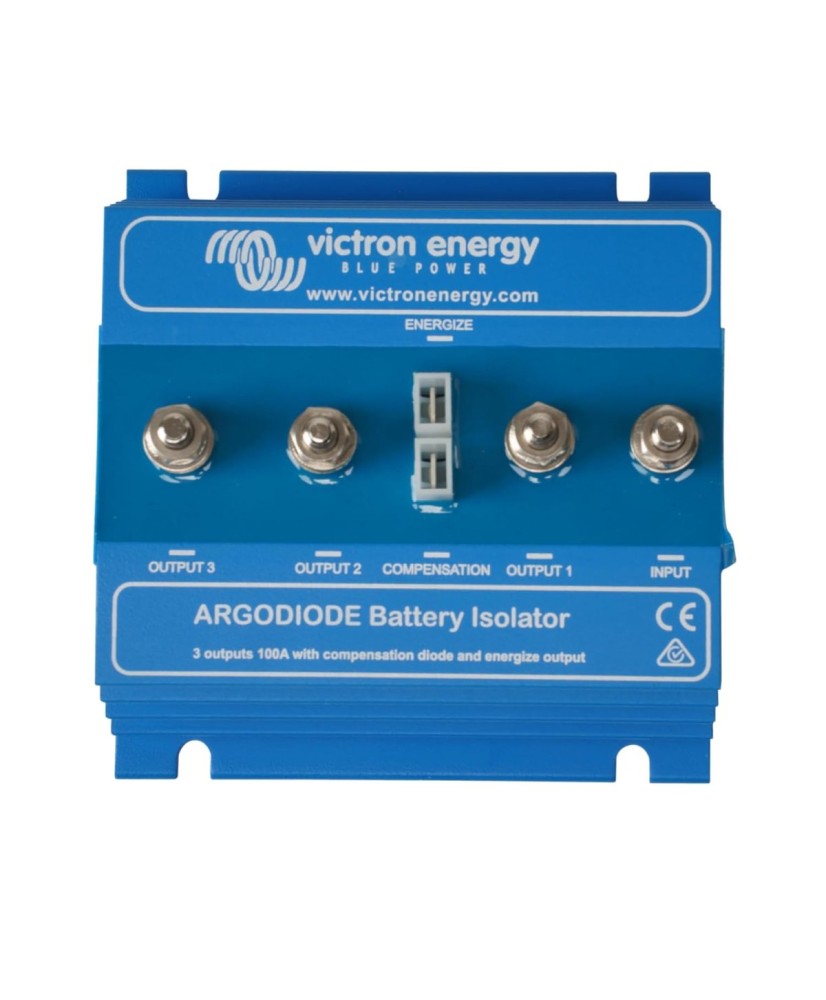

Argodiode 100-3AC is a battery isolator with Schottky diodes that allows three batteries to be charged simultaneously from a single alternator, without the batteries being connected to each other. Discharging the service battery does not discharge the starter battery, and the voltage drop remains low. It handles up to 100 A in 12 V or 24 V systems.
Victron Energy commercial warranty: 5 years for defects in materials and workmanship, handled through us as the seller. In addition to the legal guarantee. Conditions
Argodiode 100-3AC is a battery isolator with Schottky diodes that allows three batteries to be charged simultaneously from a single alternator, without the batteries being connected to each other. Discharging the service battery does not discharge the starter battery, and the voltage drop remains low. It handles up to 100 A in 12 V or 24 V systems.
Argo diode isolators allow two or more batteries to be charged simultaneously from a single alternator, without connecting the batteries to each other. For example, discharging the service battery does not discharge the starter battery. The voltage drop across the diodes is small thanks to the use of Schottky diodes.
| Maximum charging current | 100 A |
|---|---|
| Maximum alternator current | 100 A |
| Number of batteries | 3 |
| Nominal battery voltage | 12 V or 24 V |
| Alternator excitation input | Yes |
| Battery terminals | M6 bolts |
| Alternator terminal | M6 bolts |
| Compensation diode terminal | Faston 6.3 mm |
| Excitation terminal | Faston 6.3 mm |
| Weight | 0.8 kg |
| Height | 60 mm |
| Width | 120 mm |
| Depth | 115 mm |
We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
Compatibility is calculated automatically from the manufacturers’ technical data and is for information only. For complex systems, we recommend having the configuration checked by a consultant before ordering. Details in the Terms and conditions
