€138 Tax excluded

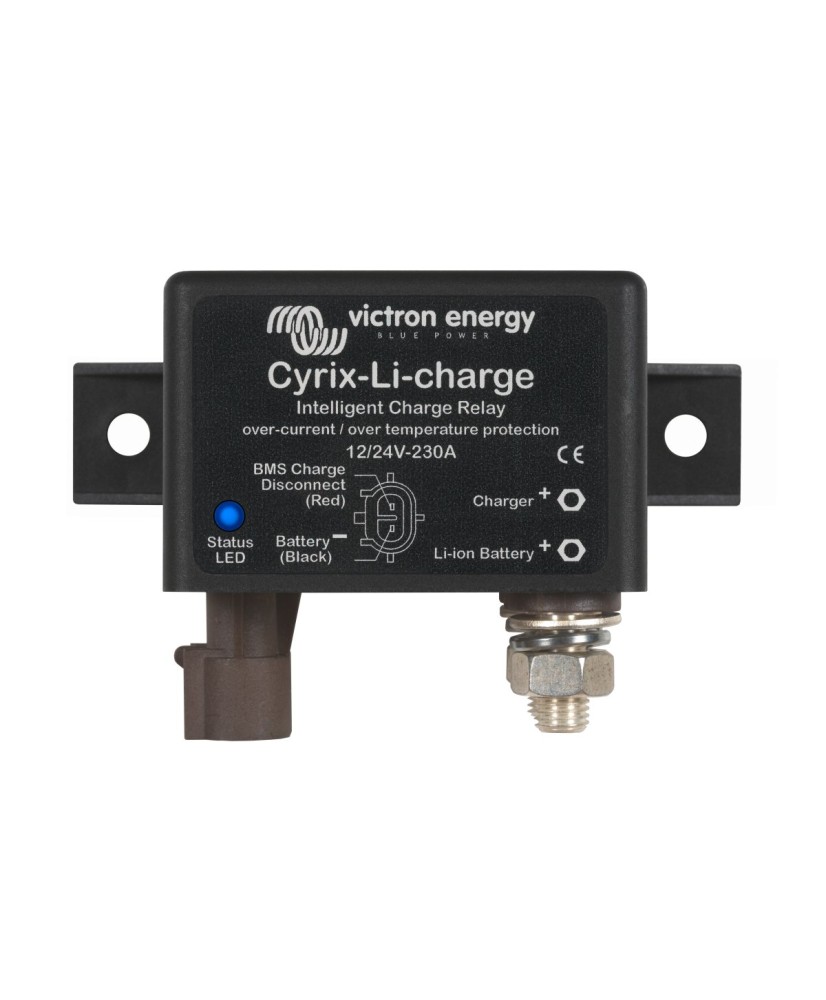

Cyrix-Li-charge 12/24V-230A is a microprocessor-controlled intelligent charge relay for 12 V or 24 V lithium battery systems. It engages when its control input is pulled high, to approximately battery voltage, and disengages when the input is left floating or pulled low, so the charging source can be disconnected from the battery by an external signal.
Victron Energy commercial warranty: 5 years for defects in materials and workmanship, handled through us as the seller. In addition to the legal guarantee. Conditions
Cyrix-Li-charge 12/24V-230A is a microprocessor-controlled intelligent charge relay for 12 V or 24 V lithium battery systems. It engages when its control input is pulled high, to approximately battery voltage, and disengages when the input is left floating or pulled low, so the charging source can be disconnected from the battery by an external signal.
The Cyrix Battery Combiner is a microprocessor controlled heavy duty relay that automatically connects batteries in parallel when one of them has reached a pre-set voltage (indicating that the battery is being charged), and disconnects when the voltage decreases below float level (indicating that one or more batteries are being discharged). Cyrix Battery Combiners are an excellent replacement for diode isolators. The main feature is that there is virtually no voltage loss so that the output voltage of alternators or battery chargers does not need to be increased.
| Nominal battery voltage | 12V or 24V (automatic detection) |
|---|---|
| Continuous current (12/24 V) | 230 A |
| Connection profiles | See our website |
| Control input | The Cyrix engages when the control input is high (appr. Battery voltage) The Cyrix disengages when the control input is left free floating or pulled low |
| Current consumption, open | 4 mA |
| LED status indication | Yes |
| Control cable included | Yes |
| Protection category | IP54 |
| Weight | 0.27 kg |
| Height | 65 mm |
| Width | 100 mm |
| Depth | 50 mm |
We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
Compatibility is calculated automatically from the manufacturers’ technical data and is for information only. For complex systems, we recommend having the configuration checked by a consultant before ordering. Details in the Terms and conditions
