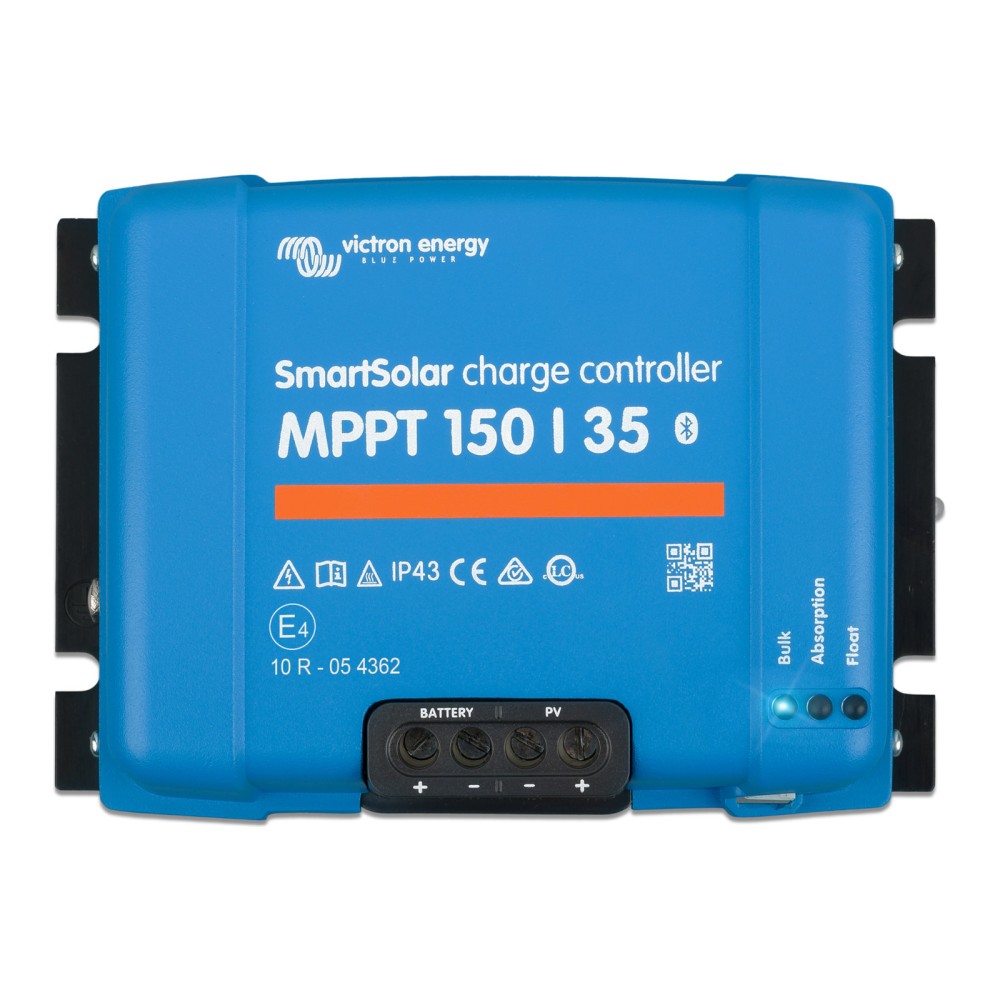

MPPT solar charge controller Victron Energy SmartSolar 150/35, 35 A

MPPT solar charge controller Victron Energy SmartSolar 150/35, 35 A

€236 Save €48
€188 Tax included

€157 Tax excluded

The SmartSolar MPPT 150/35 is an MPPT solar charge controller for 12/24/48 V batteries, with a charging current of 35 A, a maximum PV open-circuit voltage of 150 V and a maximum efficiency of 98%. Communication is via Bluetooth and VE.Direct, and the protection rating is IP43 for the electronics and IP22 for the connection area.

Reference SCC115035210

Victron Energy commercial warranty: 5 years for defects in materials and workmanship, handled through us as the seller. In addition to the legal guarantee. Conditions

Your legal guarantee rights

Legal guarantee

EU harmonised notice on the legal guarantee of conformity

More information: europa.eu/youreurope/guarantees
Open the notice at full size

SmartSolar MPPT 150/35 - MPPT solar charge controller for 12/24/48 V batteries

SmartSolar MPPT 150/35 is a solar charge controller with maximum power point tracking (MPPT) for 12/24/48 V batteries, with a charging current of 35 A and a maximum PV open-circuit voltage of 150 V. The built-in Bluetooth and the VE.Direct port allow configuration and monitoring with VictronConnect.

Key features:

  • Battery voltage: 12/24/48 V, automatic selection
  • Charging current: 35 A
  • Maximum PV voltage (Voc): 150 V
  • Maximum PV power: 500 W (12 V), 1000 W (24 V), 2000 W (48 V)
  • Maximum efficiency: 98%
  • Communication: Bluetooth, VE.Direct
  • Protection rating: IP43 electronics, IP22 connection area

MPPT technology continuously monitors the voltage and current of the solar panels (PV) and tracks the maximum power point; the benefit is most noticeable when the sky is partly cloudy and the light intensity changes continuously. The controller can also recharge a deeply discharged battery that is not permanently sulphated or otherwise damaged, and can operate from a battery voltage of 0 V.

With the built-in Bluetooth, the controller is configured and monitored remotely with a smartphone or another device via VictronConnect. If the installation is connected to the internet through a GX device, the Victron Remote Management (VRM) portal gives access to all the data; for locations without an internet connection, the GlobalLink 520 device can be used. VictronConnect and VRM are free.

Extensive electronic protection: over-temperature protection with power reduction at high temperature, protection against PV short circuit and PV reverse polarity, and protection against PV reverse current. The charging algorithm is fully programmable, and eight preprogrammed algorithms can be selected with a rotary switch.

Technical specifications

Battery voltage (automatic selection)12V / 24V / 48V (auto select)
Rated charging current35 A
Rated PV power (12 V)500 W
Rated PV power (24 V)1000 W
Rated PV power (36 V)1500 W
Rated PV power (48 V)2000 W
Absorption charging voltage14.4V / 28.8V / 57.6V (adjustable)
Float charging voltage13.8V / 27.6V / 55.2V (adjustable)
Charging algorithmAdaptive, multi-stage (adjustable)
Temperature sensorInternal
Temperature compensation (12 V)-16 mV/°C
Temperature compensation (24 V)-32 mV/°C
Temperature compensation (48 V)-64 mV/°C
Maximum efficiency98%
Self-consumption12V: 20mA, 24V: 15mA, 48V: 10mA
Maximum PV open-circuit voltage150 V
PV start-up voltageThe PV voltage must exceed Vbat + 5V for the controller to start. Afterwards, the minimum PV voltage is Vbat + 1V
Number of MPPT trackers1
Maximum PV short-circuit current40 A
ProtectionsOutput short circuit, excessive temperature, PV reverse polarity
Operating temperature range-30 … 60 °C
Maximum humidity95%
BluetoothYes
Data communicationBluetooth, VE.Direct
Battery connection terminalsScrew terminals 16 mm² (6 AWG)
PV connection terminalsScrew terminals 16 mm² (6 AWG)
ColourBlue (RAL 5012)
Protection ratingIP43 (electronic components), IP22 (connection area)
Weight1.25 kg
Height130 mm
Width186 mm
Depth70 mm
SafetyCSA C22.2, EN-IEC 62109-1, UL 1741
Data retention period46 days
Stored dataBattery voltage, battery current, battery temperature, PV voltage, PV current, load output current

Data sheet

Reference
SCC115035210
Brand
Victron Energy
Product type
MPPT controller
Maximum efficiency
98 %
Battery voltage
12 V
24 V
48 V
Charge current class
21-40 A
Max. charge current
35 A
Absorption charge voltage
14.4/28.8/57.6 V
Float charge voltage
13.8/27.6/55.2 V
Charge algorithm
Multi-stage adaptive (adjustable)
Max. PV voltage (Voc)
150 V
Max. PV short-circuit current
40 A
Max. PV power (by battery voltage)
500 W (12 V), 1000 W (24 V), 1500 W (36 V), 2000 W (48 V)
Bluetooth (app)
Yes
Communication interfaces
Bluetooth
VE.Direct
Protections
Output short-circuit, overtemperature, PV reverse polarity
Dimensions (H x W x D)
130 x 186 x 70 mm
Weight
1.25 kg
Ingress protection (IP)
IP43 (electronics), IP22 (connection area)
Operating temperature
-30 ... 60 °C
Max. relative humidity
95 %
Colour
Blue
Standards and compliance
CSA C22.2, EN-IEC 62109-1, UL 1741

We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
