€102 Tax excluded

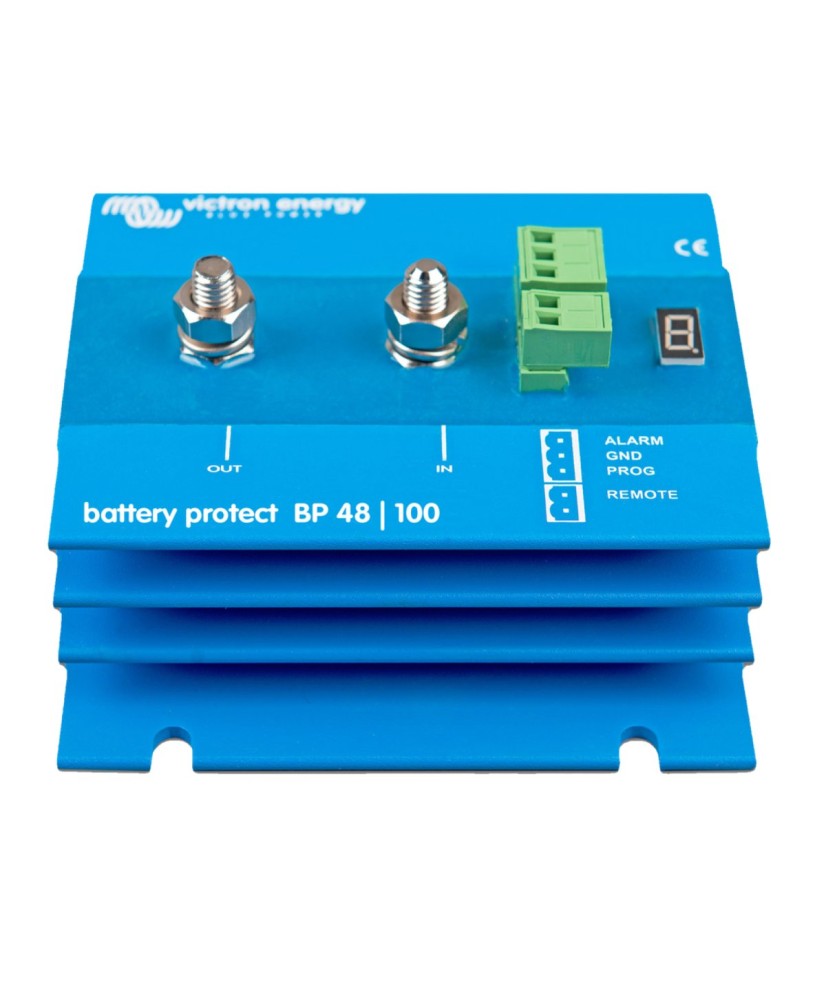

BatteryProtect 48V-100A is a battery protection device that disconnects non-essential loads before the battery is completely discharged or can no longer start the engine. It is designed for 48 V systems, supports 100 A continuous and 250 A peak, and connects via M8 terminals. It is unidirectional: it handles either the current to the loads or the current from a charger.
Victron Energy commercial warranty: 5 years for defects in materials and workmanship, handled through us as the seller. In addition to the legal guarantee. Conditions
BatteryProtect 48V-100A is a battery protection device that disconnects non-essential loads before the battery is completely discharged or can no longer start the engine. It is designed for 48 V systems, supports 100 A continuous and 250 A peak, and connects via M8 terminals. It is unidirectional: it handles either the current to the loads or the current from a charger.
BatteryProtect disconnects the battery from all non-essential loads before it is completely discharged (which can damage it) or before there is insufficient energy left to start the engine.
BatteryProtect is a unidirectional device. It can handle current in one direction only, either the current to a load or the current from a charger, but not both at the same time. In addition, current can only flow from the battery terminal to the load terminal. When used with a load, the battery is connected to the battery terminal, and when used with a charger, the charger is connected to the battery terminal.
| Nominal battery voltage | 48V |
|---|---|
| Operating voltage range | 24 … 64 V |
| Maximum continuous load current at 40 °C | 100 A |
| Maximum continuous load current at 60 °C | 60 A |
| Rated peak current | 250 A |
| Reverse current | No |
| Current draw when on | 2 mA |
| Current draw when off | 1.5 mA |
| Alarm output delay | 12 s |
| Maximum load on the alarm output | 50 mA |
| Load disconnect delay | 90 s |
| Load reconnect delay | 30 s |
| Default disconnect threshold | 42 |
| Default connect threshold | 48 |
| Remote on/off terminal | Yes |
| Bluetooth | No |
| Protections | Output short circuit |
| Operating temperature range | -40 … 50 °C |
| Battery and load terminals | M8 bolts |
| Remote control terminal | Two-pole screw terminal |
| Alarm terminal | Three-pole screw terminal |
| Protection rating (connection area) | IP00 |
| Protection rating (electronic components) | IP67 |
| Weight | 0.8 kg |
| Height | 62 mm |
| Width | 123 mm |
| Depth | 120 mm |
We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
