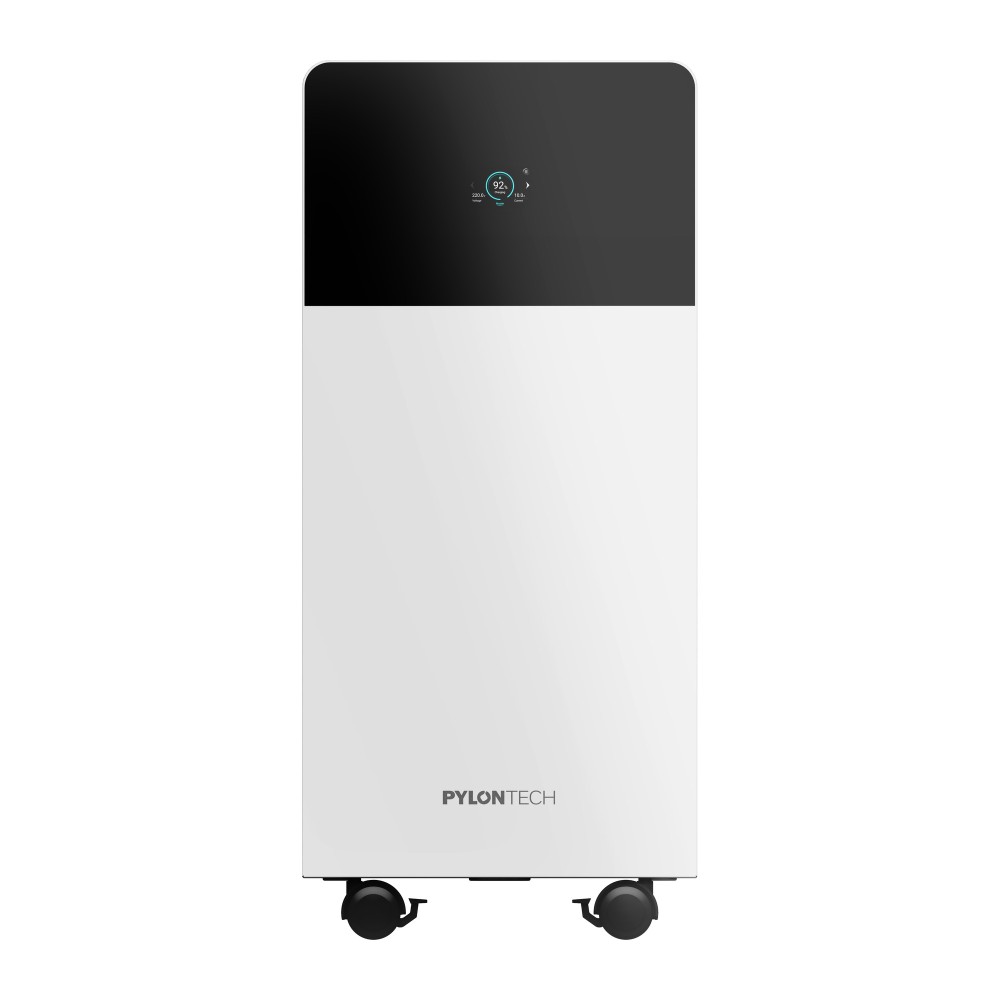

Battery Pylontech Fidus Plus 16.08 kWh, 51.2 V LiFePO4, self-heating, FB-L-16-Pro
  • Battery Pylontech Fidus Plus 16.08 kWh, 51.2 V LiFePO4, self-heating, FB-L-16-Pro
  • Battery Pylontech Fidus Plus 16.08 kWh, 51.2 V LiFePO4, self-heating, FB-L-16-Pro

Battery Pylontech Fidus Plus 16.08 kWh, 51.2 V LiFePO4, self-heating, FB-L-16-Pro

51.2 V
€2,633 Tax included

€2,194 Tax excluded

Pylontech Fidus Plus FB-L-16-Pro is a 51.2 V LiFePO4 battery with a nominal energy of 16.076 kWh, fully usable (100 % depth of discharge), and cell heating for low temperatures. Continuous current of 188 A for charging and 200 A for discharging, CAN and RS485 communication, IP65, weight 130 kg.

Reference FB-L-16-Pro

Your legal guarantee rights

Legal guarantee

EU harmonised notice on the legal guarantee of conformity

More information: europa.eu/youreurope/guarantees
Open the notice at full size

Pylontech Fidus Plus FB-L-16-Pro - heated LiFePO4 battery, 16.076 kWh, 51.2 V

Pylontech Fidus Plus FB-L-16-Pro is a low-voltage LiFePO4 battery (51.2 V, 16.076 kWh) with cell heating, for wall mounting or free-standing on the floor. It has a display, an app over Bluetooth and Wi-Fi, communicates over CAN or RS485 and has ingress protection IP65.

Main features:

  • Nominal energy: 16.076 kWh (100 % usable)
  • Nominal voltage: 51.2 V
  • Continuous current: 188 A charge, 200 A discharge
  • Heating: yes, from -20 °C
  • Communication: CAN, RS485
  • Ingress protection: IP65
  • Weight: 130 kg

The maximum continuous current is 188 A for charging and 200 A for discharging, and the peak current is 300 A for 15 seconds. One group can have up to 20 batteries (19 in multi-group setups) and the system up to 6 groups. For paralleling several groups, the datasheet requires an LV-HUB. The depth of discharge is 100 %, with the lower SOC limit set to 5 % by default, adjustable.

The heated version (Pro) allows charging and discharging between -20 and 55 °C: between -20 and 0 °C heating activates so that charging is possible above 0 °C, and the BMS limits the current at extreme temperatures. The enclosure has ingress protection IP65 and corrosion resistance class C5-M, and the design life is 15 years, with 8000 cycles at 25 °C, 0.2C and 5-95 % SOC. The interfaces include a display, Bluetooth and Wi-Fi. Aerosol fire suppression is an option of the model.

The official Pylontech list of compatible inverters (version 2.46, updated 7 July 2026) has one shared column for familia Fidus Plus (FB-L-16), which lists Victron Energy inverters (Multiplus and Quattro 48 V, via Venus OS, CAN communication), Solis (S6-EH1P-L, S6-EH1P-L-PLUS, S6-EH3P-NV-YD-L) and Deye (SUN-SG01LP1, SUN-SG03LP1, SUN-SG04LP1, SUN-SG04LP3 and SUN-SG05LP3 series), among other manufacturers. Firmware V1586 is stated for the Deye SG01LP1 and SG03LP1 series, and firmware 422 with Venus OS V2.15 or newer for Victron. In off-grid use with Victron, a Victron MPPT or another Victron-compatible PV inverter is required.

Technical specifications

Product typeBattery
Battery chemistryLiFePO4 (lithium iron phosphate)
Battery voltage class48 V
Nominal voltage51.2 V
Nominal energy16.076 kWh
Usable energy16.076 kWh
Capacity class12-20 kWh
Discharge voltage range40-56.8 V
Charge voltage range56-56.8 V
Max. continuous charge / discharge current188 A / 200 A
Peak charge / discharge current300 A (15 s)
Depth of discharge100 % (default lower SOC limit: 5 %, adjustable)
Cycle life8000 cycles (25 °C, 0.2C, SOC 5-95 %)
Design life15 years
Parallel connectionup to 20 units per group (19 with several groups), up to 6 groups
Communication interfacesCAN, RS485
Built-in BMSYes
Heating functionyes (activates between -20 and 0 °C)
Aerosol fire suppressionoptional
Display and connectivitydisplay, Bluetooth, Wi-Fi
Ingress protection (IP)IP65
Corrosion resistance classC5-M
Protection classI
Charging temperature-20 ... 55 °C
Discharging temperature-20 ... 55 °C
Storage temperature-20 ... 60 °C
Relative humidity5-95 % (non-condensing)
Max. operating altitude4000 m
Coolingnatural
Installationwall or free-standing on the floor
Standards and complianceIEC 62619, IEC 63056, UN 38.3, EMC/CE
Dimensions (height x width x depth)900 x 435 x 240 mm
Weight130 kg

Data sheet

Reference
FB-L-16-Pro
MPN
FB-L-16-Pro
Product type
Battery
Battery chemistry
LiFePO4 (lithium iron phosphate)
Battery voltage
48 V
Nominal voltage (exact)
51.2 V
Capacity class
6-20 kWh
Nominal energy
16.076 kWh
Max. continuous discharge current
200 A
Built-in BMS
Yes
Max. charge current
188 A
Communication interfaces
CAN-bus
RS485
Dimensions (H x W x D)
900 x 435 x 240 mm
Weight
130 kg
Ingress protection (IP)
IP65
Operating temperature
-20 ... 55 °C
Max. relative humidity
95 %
Standards and compliance
IEC 62619, IEC 63056, UN 38.3, EMC/CE

We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
