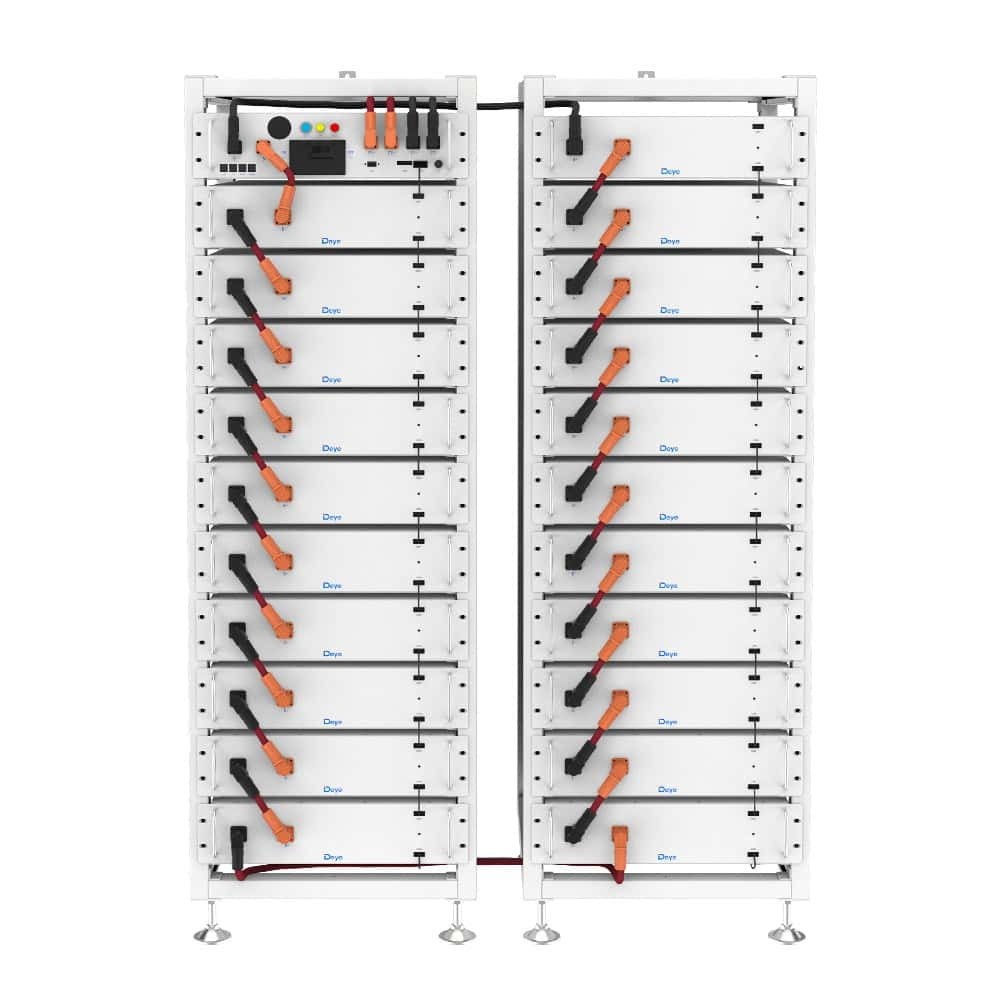

Deye HV control box, 200-1000 V, BOS-A-PDU-2

Deye HV control box, 200-1000 V, BOS-A-PDU-2

€1,310 Tax included

€1,092 Tax excluded

BOS-A-PDU-2 is the HV control box of the Deye BOS-A battery cluster. It operates from 200 to 1000 V DC, with a maximum charge and discharge current of 160 A, has two pairs of PCS terminals, a display for state of charge and fault codes, IP20 protection and a weight of 21 kg.

Reference BOS-A-PDU-2

Your legal guarantee rights

Legal guarantee

EU harmonised notice on the legal guarantee of conformity

More information: europa.eu/youreurope/guarantees
Open the notice at full size

BOS-A-PDU-2 - HV control box for BOS-A systems

BOS-A-PDU-2 is the high voltage control box of the battery cluster in the Deye BOS-A series. It operates from 200 to 1000 V DC and at charge and discharge currents up to 160 A, has two pairs of PCS terminals and shows the state of charge and fault codes.

Main features:

  • Operating voltage: 200 ... 1000 V DC
  • Maximum current: 160 A, charge and discharge
  • PCS terminals: two pairs, PCS1 and PCS2
  • Auxiliary supply: 12 V ± 2 %, 4.15 A
  • Operating temperature: -20 ... 65 °C
  • Ingress protection: IP20
  • Weight: 21 kg

The box has a display for the state of charge (SOC) and fault codes, high voltage and alarm indicators, an isolating switch for manually connecting the rack to external devices, a USB port for BMS upgrade and storage expansion, and Bluetooth for connecting the mobile app.

The box communicates with the inverter through the PCS COM port and uses the IN COM and OUT COM ports when several racks are connected in parallel. BOS-A systems can be connected to two DC interfaces of the inverter and can run with up to 16 racks in parallel.

Technical specifications

TypeHV battery cluster control box
Operating voltage200 ... 1000 V c.c.
Maximum charge/discharge current160 A
DC input rating12 V ± 2 %, 4.15 A
Operating temperature-20 ... 65 °C
Ingress protectionIP20
Dimensions (W x D x H)572 x 632 x 142.2 mm
Approximate weight21 kg

Data sheet

Reference
BOS-A-PDU-2
MPN
BOS-A-PDU-2
Product type
BMS and BMS accessories
Battery voltage
HV (high voltage)
Rated voltage
200 ... 1000 V DC
Communication interfaces
Bluetooth
Dimensions (H x W x D)
142.2 x 572 x 632 mm
Weight
21 kg
Ingress protection (IP)
IP20
Operating temperature
-20 ... 65 °C

We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
