10 kW Deye hybrid inverter, three-phase, HV, SUN-10K-SG01HP3-EU-AM2
  • 10 kW Deye hybrid inverter, three-phase, HV, SUN-10K-SG01HP3-EU-AM2
  • 10 kW Deye hybrid inverter, three-phase, HV, SUN-10K-SG01HP3-EU-AM2

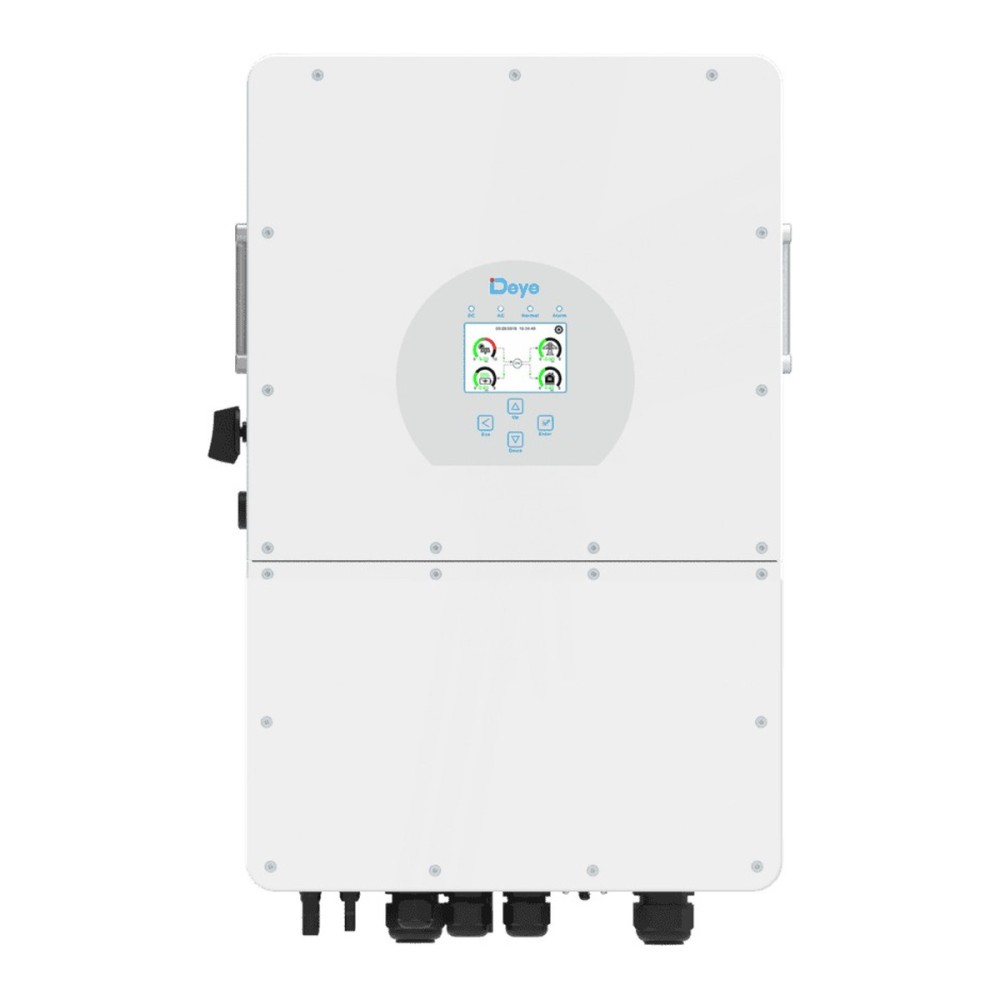

10 kW Deye hybrid inverter, three-phase, HV, SUN-10K-SG01HP3-EU-AM2

€1,516 Tax included

€1,263 Tax excluded

SUN-10K-SG01HP3-EU-AM2 is a 10 kW three-phase hybrid inverter with two MPPT inputs (150-850 V) and a high-voltage battery input of 160-700 V. Maximum efficiency 97.6 %, IP65 protection rating, parallel operation of up to 10 units. Suited to photovoltaic systems with storage, grid-connected or off-grid.

Reference SUN-10K-SG01HP3-EU-AM2

Your legal guarantee rights

Legal guarantee

EU harmonised notice on the legal guarantee of conformity

More information: europa.eu/youreurope/guarantees
Open the notice at full size

SUN-10K-SG01HP3-EU-AM2 - Three-phase hybrid inverter 10 kW for HV batteries

SUN-10K-SG01HP3-EU-AM2 is a 10 kW three-phase hybrid inverter with two MPPT inputs, designed for photovoltaic systems with storage in high-voltage lithium-ion batteries (160-700 V). It combines conversion of the panel energy, battery charging and supply of the loads in a single unit, and operates grid-connected or off-grid.

Main features:

  • Rated AC power: 10 kW
  • MPPT inputs: 2, range 150-850 V
  • Battery voltage: 160-700 V, lithium-ion HV
  • Charge/discharge current: 37 A
  • Maximum efficiency: 97,6 %
  • Parallel operation: up to 10 units
  • Protection rating: IP65

The photovoltaic input accepts up to 16000 W (maximum PV access power 20000 W) across two MPPT inputs, with a maximum voltage of 1000 V, a start-up voltage of 180 V and a maximum operating current of 20+20 A. The rated PV input voltage is 600 V.

The battery input is high voltage (160-700 V), for lithium-ion batteries with self-adaptation to the BMS, with a maximum charge and discharge current of 37 A. The unit supports 6 time periods for battery charging and discharging, AC coupling to retrofit an existing solar system, and storing energy from a diesel generator. The AC output supports 100 % unbalanced loads.

The AC output is three-phase (3L+N+PE, 220/380 V or 230/400 V), with a continuous AC pass-through from grid to load of 80 A and an off-grid peak power of 1.5 times the rated power for 10 s. Up to 10 units can be paralleled for grid-connected and off-grid operation, and several batteries can run in parallel. The IP65 enclosure covers temperatures of -40 ... +60 °C, with derating above 45 °C.

Technical specifications

Product typeInverter
Inverter typeHybrid (built-in MPPT)
PhasesThree-phase
Battery voltageHV (high voltage)
Power class6-10 kW
Continuous output power (W, 25 °C)10000 W
Peak power15000 W, 10 s
Maximum efficiency97,6 %
Number of MPPT trackers2
Max. PV input voltage1000 V
MPPT voltage range150-850 V
DC input voltage range160-700 V
Max. charge current37 A
Max. AC input current80 A
AC output voltage220/380 V, 230/400 V
Output frequency50/60 Hz
Parallel operationYes
Communication interfacesWi-Fi, RS485, CAN-bus
Ingress protection (IP)IP65
Operating temperature-40 ... 60 °C
Max. relative humidity100 %
ProtectionsDC reverse polarity, AC overcurrent, AC overvoltage, AC short circuit, thermal protection, anti-islanding, residual current
Standards and complianceIEC/EN 62109-1, IEC/EN 62109-2, IEC/EN 61000-6-1/2/3/4
Dimensions (H x W x D)638 x 408 x 237 mm
Weight30,5 kg

Data sheet

Reference
SUN-10K-SG01HP3-EU-AM2
MPN
SUN-10K-SG01HP3-EU-AM2
Product type
Inverter
Inverter type
Hybrid (built-in MPPT)
Phases
Three-phase
Power class
6-10 kW
Continuous output power (W, 25 °C)
10000 W
Peak power
15000 W, 10 s
Maximum efficiency
97,6 %
Battery voltage
HV (high voltage)
DC input voltage range
160-700 V
Max. charge current
37 A
Max. PV input voltage
1000 V
Number of MPPT trackers
2
MPPT voltage range
150-850 V
AC output voltage
220/380 V, 230/400 V
Output frequency
50/60 Hz
Max. AC input current
80 A
Parallel operation
Yes
Communication interfaces
CAN-bus
RS485
Wi-Fi
Protections
DC reverse polarity, AC overcurrent, AC overvoltage, AC short circuit, thermal protection, anti-islanding, residual current
Dimensions (H x W x D)
638 x 408 x 237 mm
Weight
30,5 kg
Ingress protection (IP)
IP65
Operating temperature
-40 ... 60 °C
Max. relative humidity
100 %
Standards and compliance
IEC/EN 62109-1, IEC/EN 62109-2, IEC/EN 61000-6-1/2/3/4

We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
