Inverter/charger Victron Energy MultiPlus-II 12/3000/120-32
  • Inverter/charger Victron Energy MultiPlus-II 12/3000/120-32
  • Inverter/charger Victron Energy MultiPlus-II 12/3000/120-32
  • Inverter/charger Victron Energy MultiPlus-II 12/3000/120-32
  • Inverter/charger Victron Energy MultiPlus-II 12/3000/120-32

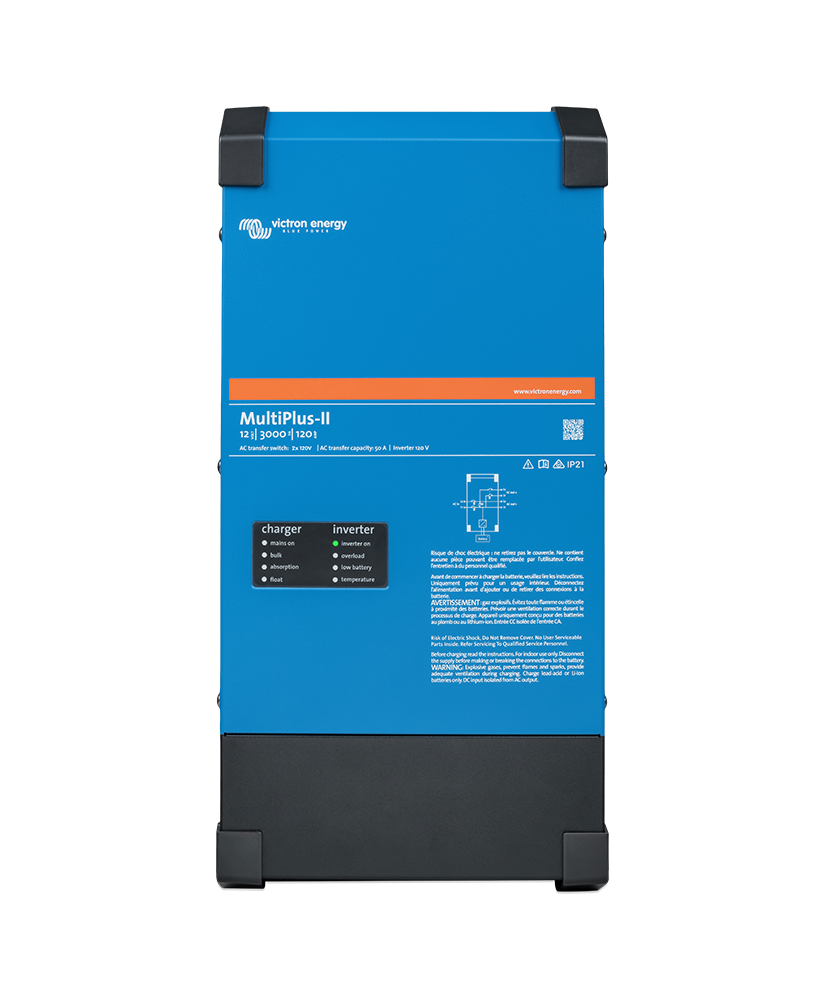

Inverter/charger Victron Energy MultiPlus-II 12/3000/120-32

€1,340 Save €268
€1,072 Tax included

€893 Tax excluded

The MultiPlus-II combines the functions of the original MultiPlus and MultiGrid into one compact and powerful device. It includes all the features of the MultiPlus, along with enhanced capabilities like external current sensing for PowerControl and PowerAssist, and optimization for self-consumption (up to 32A). It also carries the built-in anti-islanding feature and a growing list of country approvals from the MultiGrid series.

Reference PMP122305010

Victron Energy commercial warranty: 5 years for defects in materials and workmanship, handled through us as the seller. In addition to the legal guarantee. Conditions

Your legal guarantee rights

Legal guarantee

EU harmonised notice on the legal guarantee of conformity

More information: europa.eu/youreurope/guarantees
Open the notice at full size

Victron MultiPlus-II - Advanced Inverter/Charger

The MultiPlus-II combines the functions of the original MultiPlus and MultiGrid into one compact and powerful device. It includes all the features of the MultiPlus, along with enhanced capabilities like external current sensing for PowerControl and PowerAssist, and optimization for self-consumption (up to 32A). It also carries the built-in anti-islanding feature and a growing list of country approvals from the MultiGrid series.

PowerAssist

Prevents overloads on limited AC sources like generators or shore power. It first reduces battery charging to avoid overload, then boosts AC output by supplementing with battery power when needed.

Energy Storage System (ESS)

The MultiPlus-II is a core component in Victron ESS setups. It integrates seamlessly with MPPT solar chargers or grid-tied inverters for flexible energy storage. Detailed setup examples are available in the ESS manual.

Uninterrupted AC Power (UPS Function)

If the grid fails or shore/generator power is disconnected, the inverter instantly takes over (within 20 milliseconds), keeping sensitive electronics like computers running without interruption.

Remote Monitoring & Control

Pair with a GX device (e.g., Cerbo GX) to monitor and manage your system locally via LAN or remotely over the internet. Access the free VRM portal from any phone, tablet, or computer to view status and make adjustments, including automatic generator start and more.

Data sheet

Reference
PMP122305010
Product type
Inverter/charger
Inverter type
Inverter/charger
Off-grid (no grid)
Phases
Single-phase
Power class
2-3.5 kW
Continuous output power (VA, 25 °C)
3000 VA
Continuous output power (W, 25 °C)
2400 W
Peak power
5500 W
Maximum efficiency
93 %
Zero-load power
13 W
Output waveform
Pure sine wave
Battery voltage
12 V
DC input voltage range
9.5-17 V
Max. charge current
120 A
AC output voltage
230 V
Output frequency
50 Hz
AC input voltage range
187-265 V
Max. AC input current
32 A
Parallel operation
Yes
Communication interfaces
VE.Bus
Programmable relay
Yes
Protections
Output short-circuit, overload, overtemperature, high battery voltage, low battery voltage, excessive DC ripple, AC voltage on output
Dimensions (H x W x D)
546 x 275 x 147 mm
Weight
19 kg
Ingress protection (IP)
IP22
Operating temperature
-40 ... 65 °C
Max. relative humidity
95 %
Colour
Blue
Material
Steel
Standards and compliance
EN-IEC 60335-1, EN 55014-1, EN 55014-2, EN-IEC 61000-3-2

We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
