Inverter/charger Victron Energy MultiPlus-II 48/3000/35-32, 230 V
  • Inverter/charger Victron Energy MultiPlus-II 48/3000/35-32, 230 V
  • Inverter/charger Victron Energy MultiPlus-II 48/3000/35-32, 230 V
  • Inverter/charger Victron Energy MultiPlus-II 48/3000/35-32, 230 V
  • Inverter/charger Victron Energy MultiPlus-II 48/3000/35-32, 230 V

Inverter/charger Victron Energy MultiPlus-II 48/3000/35-32 GX, 230 V

€853 Save €171
€682 Tax included

€568 Tax excluded

An Inverter/Charger with device networking built-in, the MultiPlus-II 48/3000/35-32 GX communicates with a solar charger, batteries, and other devices to control a grid-connected, off-grid, or remote power installation.

Reference PMP482306000

Victron Energy commercial warranty: 5 years for defects in materials and workmanship, handled through us as the seller. In addition to the legal guarantee. Conditions

Your legal guarantee rights

Legal guarantee

EU harmonised notice on the legal guarantee of conformity

More information: europa.eu/youreurope/guarantees
Open the notice at full size

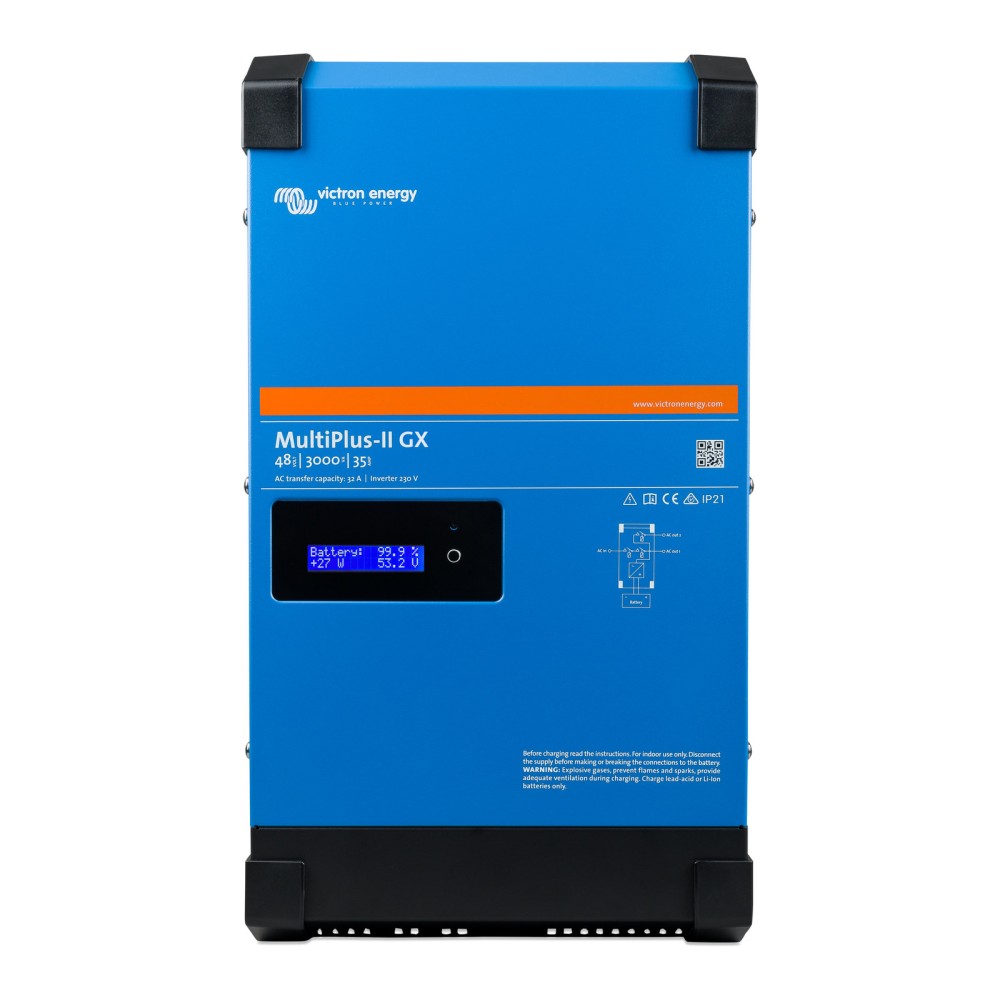

Victron Energy MultiPlus-II 48/3000/35-32 230V GX

An Inverter/Charger with device networking built-in, the MultiPlus-II 48/3000/35-32 GX communicates with a solar charger, batteries, and other devices to control a grid-connected, off-grid, or remote power installation. Capable of parallel operation for increased power output, or battery charge-rates, the MultiPlus-II GX can also be configured for three-phase supply. A host of advanced features - such as uninterrupted power supply, setting load limits, and supplementing limited grid-power availability with battery power - can all be controlled straight from your phone or smart device. Remote monitoring is also possible.

Features

A MultiPlus-II with LCD and GX functionality
The MultiPlus-II GX integrates a MultiPlus-II inverter/charger and a GX device with a 2 x 16 character display.

Display and Wi-Fi
The display reads battery, inverter and solar charge controller parameters. The same parameters can be accessed with a smartphone or other Wi-Fi enabled device.

GX device
The integrated GX device includes:
- A BMS-Can interface. This can be used to connect to a compatible CAN-bus managed battery. Note that this not a VE.Can compatible port.
- A USB port.
- A Ethernet port.
- A VE.Direct port.

Applications
The MultiPlus-II  GX is intended for applications where additional interfacing with other products and/or remote monitoring is required, such as on-grid or off-grid energy storage systems and certain mobile applications.

Specifications:
Voltage: 48V
Cont. Output Power at 25°C: 3000VA
Peak Power: 5500W
Output AC Voltage: 230V
Transfer Switch: 32A
Max. AC Input Current: 32A
Max. Battery Charge Current: 35A
Protection Category: IP22
Efficiency: 95%
Bluetooth Compatible: Yes
Dimensions: H506 x W275 x D147mm
Weight: 19Kg

Data sheet

Reference
PMP482306000
Brand
Victron Energy
Product type
Inverter/charger
Inverter type
Inverter/charger
Phases
Single-phase
Power class
2-3.5 kW
Continuous output power (VA, 25 °C)
3000 VA
Continuous output power (W, 25 °C)
2400 W
Peak power
5500 W
Maximum efficiency
95 %
Zero-load power
11 W
Output waveform
Pure sine wave
Battery voltage
48 V
DC input voltage range
38-66 V
Max. charge current
35 A
AC output voltage
230 V
Output frequency
50 Hz
AC input voltage range
187-265 V
Max. AC input current
32 A
Parallel operation
Yes
Communication interfaces
BMS-Can
Ethernet
VE.Bus
VE.Can
VE.Direct
Wi-Fi
Programmable relay
Yes
Protections
Output short-circuit, overload, overtemperature, high battery voltage, low battery voltage, excessive DC ripple, AC voltage on output
Dimensions (H x W x D)
506 x 275 x 147 mm
Weight
20 kg
Ingress protection (IP)
IP22
Operating temperature
-40 ... 65 °C
Max. relative humidity
95 %
Colour
Blue
Material
Steel
Standards and compliance
EN-IEC 60335-1, EN 55014-1, EN 55014-2, EN-IEC 61000-3-2

We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
