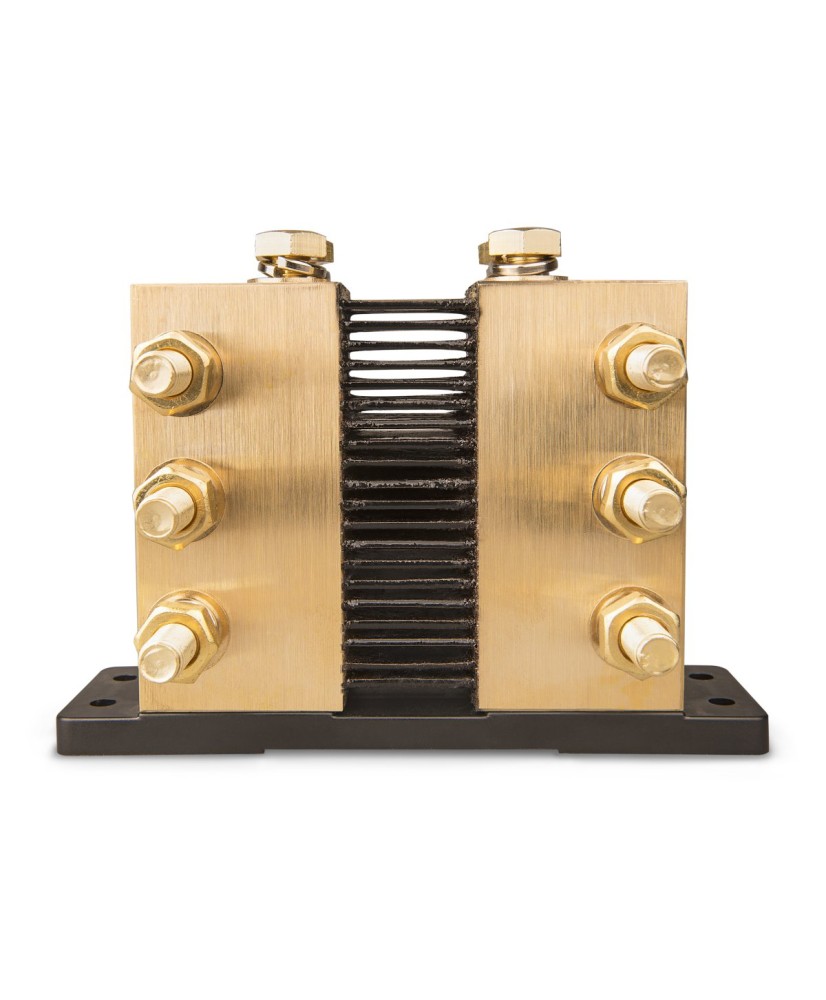

Shunt 6000A/50mV-0,5 / 5xM10 Victron Energy
  • Shunt 6000A/50mV-0,5 / 5xM10 Victron Energy
  • Shunt 6000A/50mV-0,5 / 5xM10 Victron Energy
  • Shunt 6000A/50mV-0,5 / 5xM10 Victron Energy
  • Shunt 6000A/50mV-0,5 / 5xM10 Victron Energy
  • Shunt 6000A/50mV-0,5 / 5xM10 Victron Energy
  • Shunt 6000A/50mV-0,5 / 5xM10 Victron Energy

Current shunt Victron Energy 6000A/50mV-0,5 / 5xM10

€261 Save €53
€208 Tax included

€173 Tax excluded

The 6000A/50mV-0,5 / 5xM10 shunt is a measurement shunt for very high-current DC systems, rated for 6000 A, with a voltage drop of 50 mV. It has five M10 terminals for connection.

Reference SHU602050200

Victron Energy commercial warranty: 5 years for defects in materials and workmanship, handled through us as the seller. In addition to the legal guarantee. Conditions

Your legal guarantee rights

Legal guarantee

EU harmonised notice on the legal guarantee of conformity

More information: europa.eu/youreurope/guarantees
Open the notice at full size

Shunt 6000A/50mV-0,5 / 5xM10 - Current measurement shunt 6000A

The 6000A/50mV-0,5 / 5xM10 shunt is a measurement shunt for very high-current DC systems, rated for 6000 A, with a voltage drop of 50 mV. It has five M10 terminals for connection.

Key features:

  • Rated current: 6000 A
  • Voltage drop: 50 mV
  • Connection terminals: 5 x M10

Victron shunts are used for accurate current measurement in high-power DC systems. These shunts are available in versions from 500 A to 6000 A, all with a voltage drop of 50 mV and all with M10 terminals. Available models:

  • 500A / 50 mV
  • 1000A / 50 mV
  • 2000A / 50 mV
  • 6000A / 50 mV

Data sheet

Reference
SHU602050200
EAN13
8719076035435
Brand
Victron Energy
Product type
Shunt and battery monitor
Rated current class
501+ A
Rated current (exact)
6000 A
Voltage drop
50 mV

We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the manufacturer’s datasheet.
