Deye battery module, 16.08 kWh, 51.2 V LiFePO4, BOS-B-Pack16-A3
  • Deye battery module, 16.08 kWh, 51.2 V LiFePO4, BOS-B-Pack16-A3
  • Deye battery module, 16.08 kWh, 51.2 V LiFePO4, BOS-B-Pack16-A3

Deye battery module, 16.08 kWh, 51.2 V LiFePO4, BOS-B-Pack16-A3

51.2 V
€2,610 Tax included

€2,175 Tax excluded

BOS-B-Pack16-A3 is a 51.2 V, 314 Ah, 16.08 kWh LiFePO4 battery pack for the Deye BOS-B Pro-A3 system. It has a maximum charge and discharge current of 180 A, IP20 protection, an integrated cooling fan and a weight of 126 kg. With one PDU, systems of 5 to 16 packs can be built.

Reference BOS-B-Pack16-A3

Your legal guarantee rights

Legal guarantee

EU harmonised notice on the legal guarantee of conformity

More information: europa.eu/youreurope/guarantees
Open the notice at full size

BOS-B-Pack16-A3 - LiFePO4 battery pack, 16.08 kWh

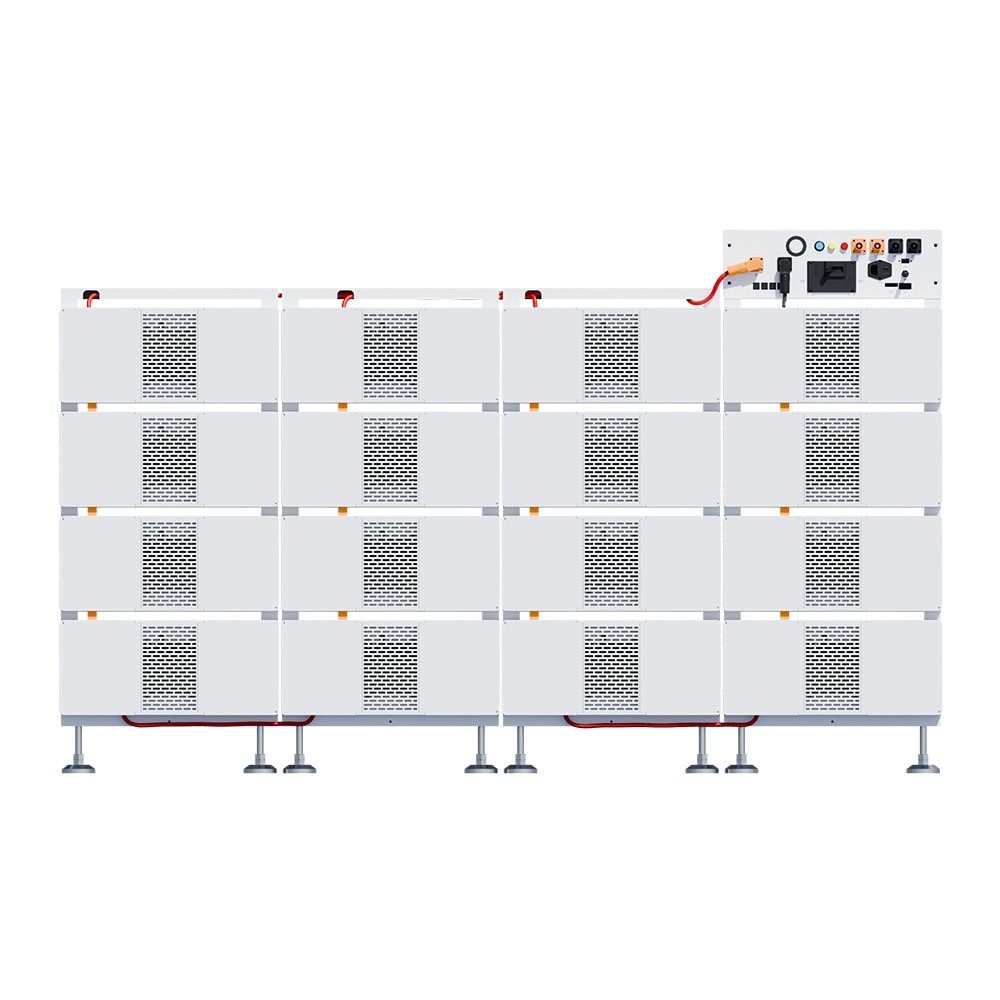

BOS-B-Pack16-A3 is a 51.2 V, 314 Ah, 16.08 kWh lithium iron phosphate (LiFePO4) battery pack for the Deye BOS-B Pro-A3 commercial and industrial storage system. The packs are stacked four per column, and a system can have between 5 and 16 packs, with an energy of up to 257.23 kWh.

Main features:

  • Nominal energy: 16.08 kWh
  • Nominal voltage: 51.2 V
  • Rated capacity: 314 Ah
  • Maximum current: 180 A, charge and discharge
  • Operating temperature: charge 0 ... 55 °C, discharge -20 ... 55 °C
  • Ingress protection: IP20
  • Weight: 126 kg

The pack has B+ and B- terminals (orange and black), COMM1 and COMM2 communication ports and a cooling fan. The pack box contains a copper bar, four M5 bolts, four M3 bolts, the documents and a communication cable.

In the BOS-B Pro-A3 system, 5 to 16 packs in series form a system with a maximum nominal voltage of 819.2 V and a maximum energy of 257.23 kWh. The cycle life is at least 6000 cycles at 25 ± 2 °C and 0.5C, down to 70 % of capacity, with a recommended depth of discharge of 90 %.

Technical specifications

Cell chemistryLiFePO4
Rated capacity314 Ah
Nominal energy16.08 kWh
Nominal voltage51.2 V
Maximum charge/discharge current180 A
Charging temperature0 ... 55 °C
Discharging temperature-20 ... 55 °C
Storage temperature0 ... 35 °C
Ingress protectionIP20
Dimensions (W x D x H)526 x 795.9 x 274.2 mm
Approximate weight126 kg

Data sheet

Reference
BOS-B-Pack16-A3
MPN
BOS-B-Pack16-A3
Product type
Battery
Battery chemistry
LiFePO4 (lithium iron phosphate)
Battery voltage
HV (high voltage)
Nominal voltage (exact)
51.2 V
Nominal capacity
314 Ah
Capacity class
6-20 kWh
Nominal energy
16.08 kWh
Max. continuous discharge current
180 A
Max. charge current
180 A
Dimensions (H x W x D)
274.2 x 526 x 795.9 mm
Weight
126 kg
Ingress protection (IP)
IP20
Operating temperature
charge 0 ... 55 °C, discharge -20 ... 55 °C
Standards and compliance
CE, IEC62619, IEC62040, UN38.3

We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
