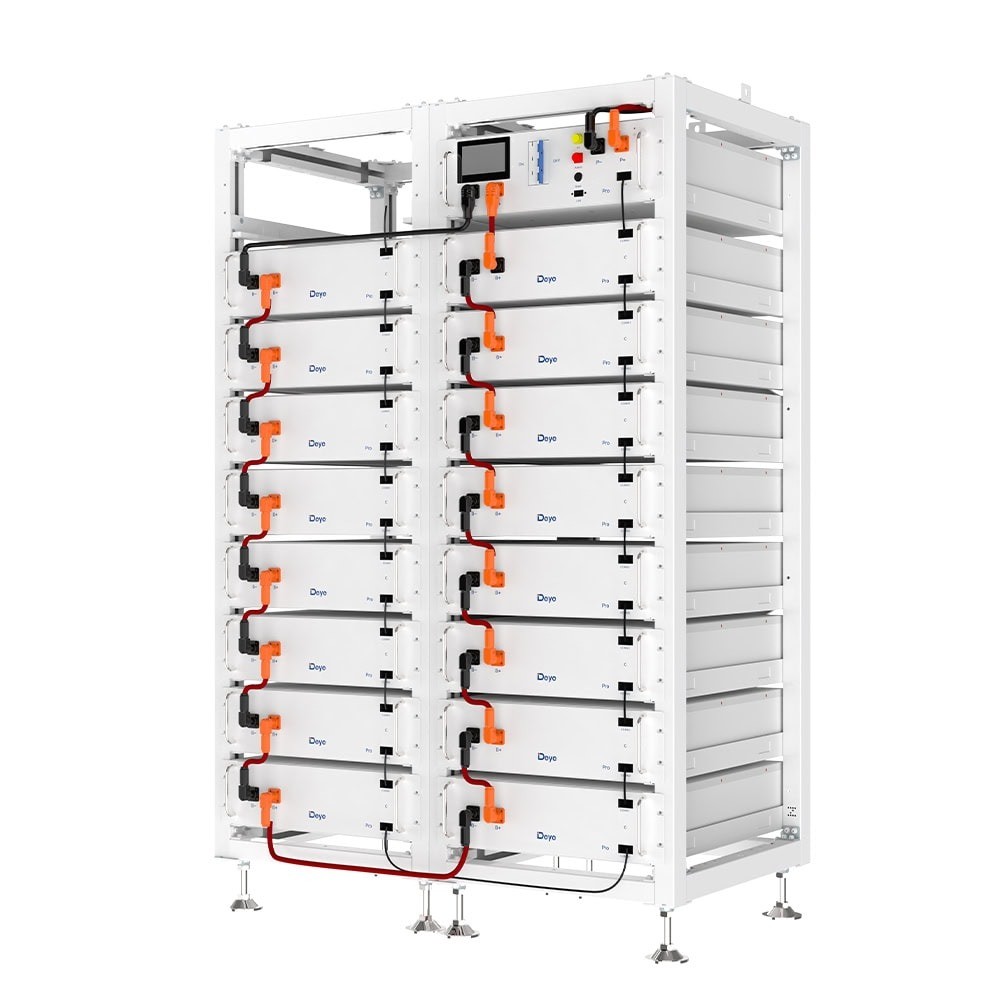

Deye HV control box, 200-1000 V, BOS-G-PDU-2

Deye HV control box, 200-1000 V, BOS-G-PDU-2

€945 Tax included

€788 Tax excluded

BOS-G-PDU-2 is the HV control box of the Deye BOS-G Pro battery cluster, conforming to European or British standards. It operates from 200 to 1000 V DC, with a nominal current of 100 A and a maximum current of 120 A, IP20 protection and a weight of 19 kg. It mounts in the 19 inch rack of the system.

Reference BOS-G-PDU-2

Your legal guarantee rights

Legal guarantee

EU harmonised notice on the legal guarantee of conformity

More information: europa.eu/youreurope/guarantees
Open the notice at full size

BOS-G-PDU-2 - HV control box for the BOS-G Pro battery cluster

BOS-G-PDU-2 is the high voltage control box of the battery cluster in the Deye BOS-G Pro series, conforming to European and British standards. It operates from 200 to 1000 V DC, with a nominal charge and discharge current of 100 A, and mounts in the 19 inch rack next to the battery modules.

Main features:

  • Operating voltage: 200 ... 1000 V DC
  • Nominal current: 100 A
  • Maximum current: 120 A
  • Auxiliary supply: 12 V ± 2 %, 4.15 A
  • Operating temperature: -20 ... 65 °C
  • Ingress protection: IP20
  • Weight: 19 kg

The control box manages the connection between the battery cluster and the external inverter (PCS). BOS-G Pro systems can run with up to 16 battery racks in parallel and up to 10 inverters in AC parallel.

The standard configuration includes a 120 ohm terminal resistor, a 250 mm communication cable, a 140 mm power cable, a 2.1 m power cable, 2 m power cables to the positive and negative poles of the external PCS (EPCable2.0 and ENCable2.0), a 1000 mm communication cable and a 1000 mm power cable between two racks, and a 140 mm ground wire.

Technical specifications

TypeHV battery cluster control box, compliant with European or British standards
Operating voltage200 ... 1000 V c.c.
Nominal charge/discharge current100 A
Maximum charge/discharge current120 A
DC input rating12 V ± 2 %, 4.15 A
Operating temperature-20 ... 65 °C
Ingress protectionIP20
Dimensions (W x D x H)440 x 570 x 150 mm
Approximate weight19 kg

Data sheet

Reference
BOS-G-PDU-2
MPN
BOS-G-PDU-2
Product type
BMS and BMS accessories
Battery voltage
HV (high voltage)
Rated current (exact)
100 A
Rated voltage
200 ... 1000 V DC
Dimensions (H x W x D)
150 x 440 x 570 mm
Weight
19 kg
Ingress protection (IP)
IP20
Operating temperature
-20 ... 65 °C
Standards and compliance
conforming to European or British standards

We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
