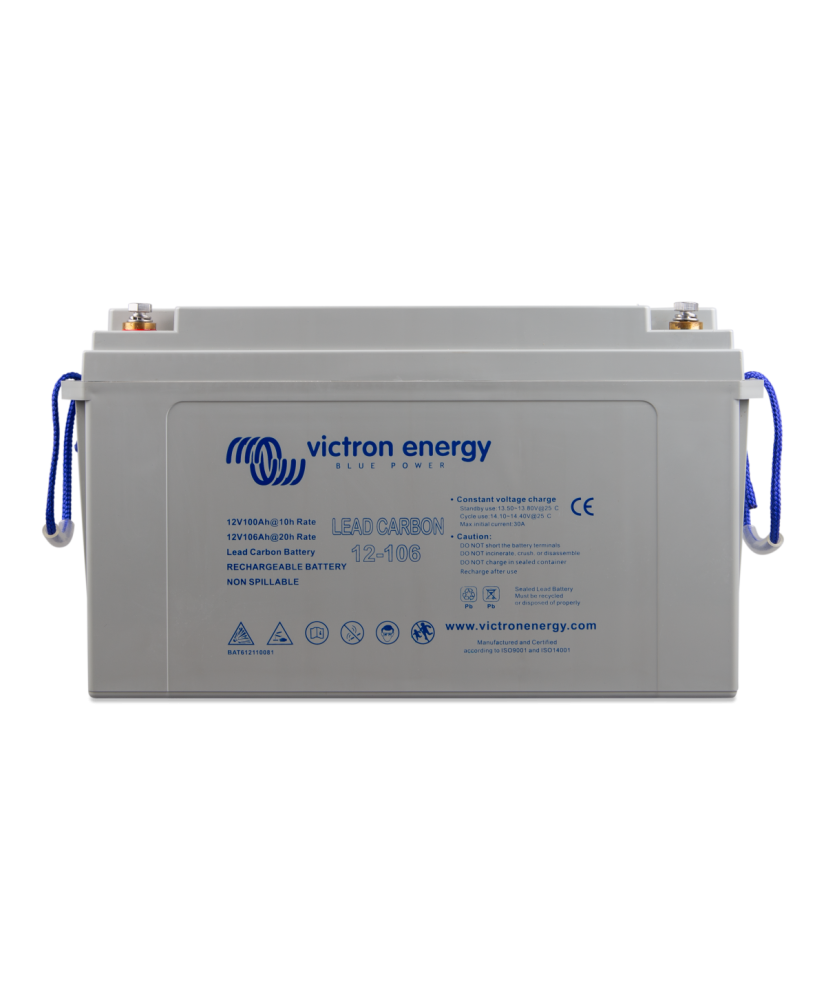

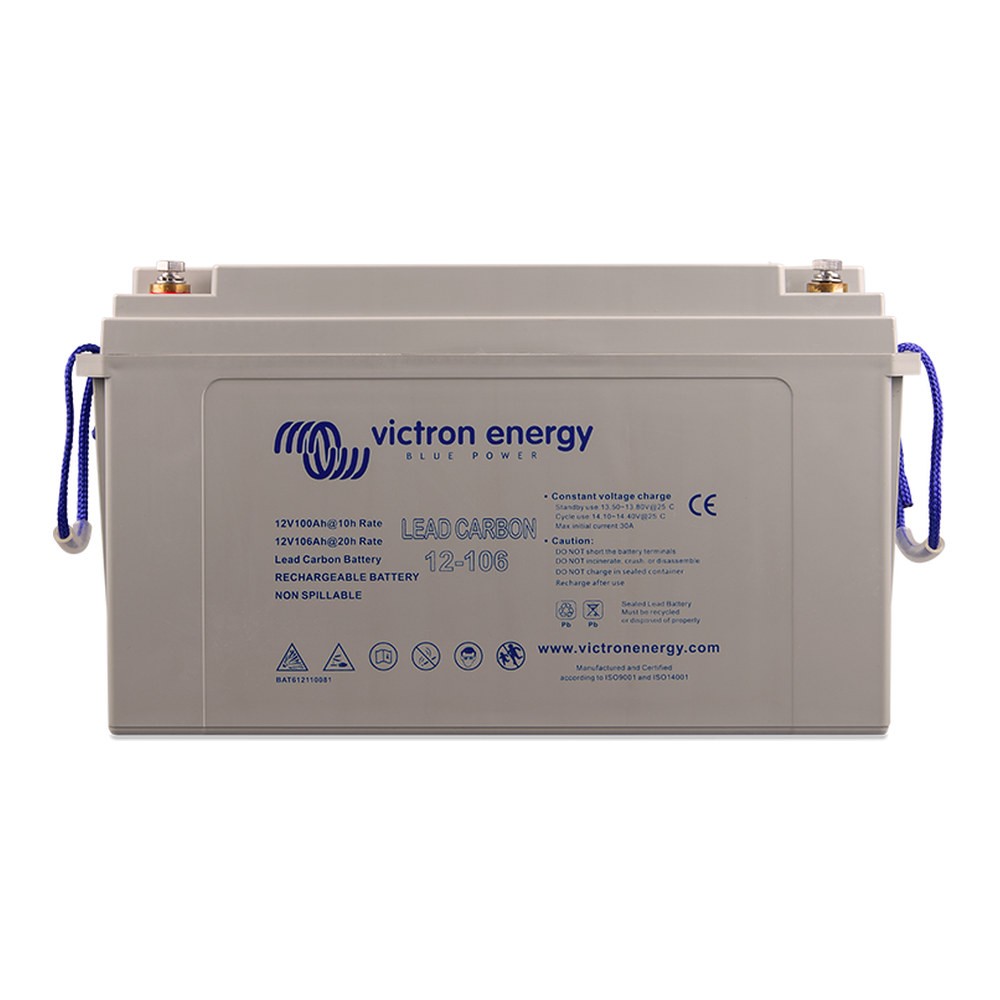

Lead Carbon Battery 12V/106Ah (M8) Victron Energy

Lead Carbon 12V/106Ah (M8) - Deep cycle lead carbon battery

Lead Carbon 12V/106Ah (M8) is a battery in which the active material of the negative plate is replaced by a lead carbon composite. This reduces sulfation, allows a lower charge voltage with higher efficiency and less corrosion, and improves cycle life. It suits off-grid solar systems and boats where the battery often operates at partial state of charge.

Main features:

• Voltage and capacity: 12 V, 106 Ah (C20), 100 Ah (C10), 92 Ah (C5)
• Cycles at 100% DoD: 500 cycles
• Partial discharge cycles: 1,000 at 60% DoD, 1,400 at 40% DoD
• Cold cranking amps (CCA): 500 A
• Absorption voltage: 14.1-14.6 V
• Dimensions and weight: 410 × 172 × 225 mm, 36 kg

Replacing the active material of the negative plate by a lead carbon composite potentially reduces sulfation and improves charge acceptance of the negative plate.

The advantages of lead carbon therefore are:

• Less sulfation in case of partial state-of-charge operation.
• Lower charge voltage and therefore higher efficiency and less corrosion of the positive plate.
• And the overall result is improved cycle life.

Technical specifications
