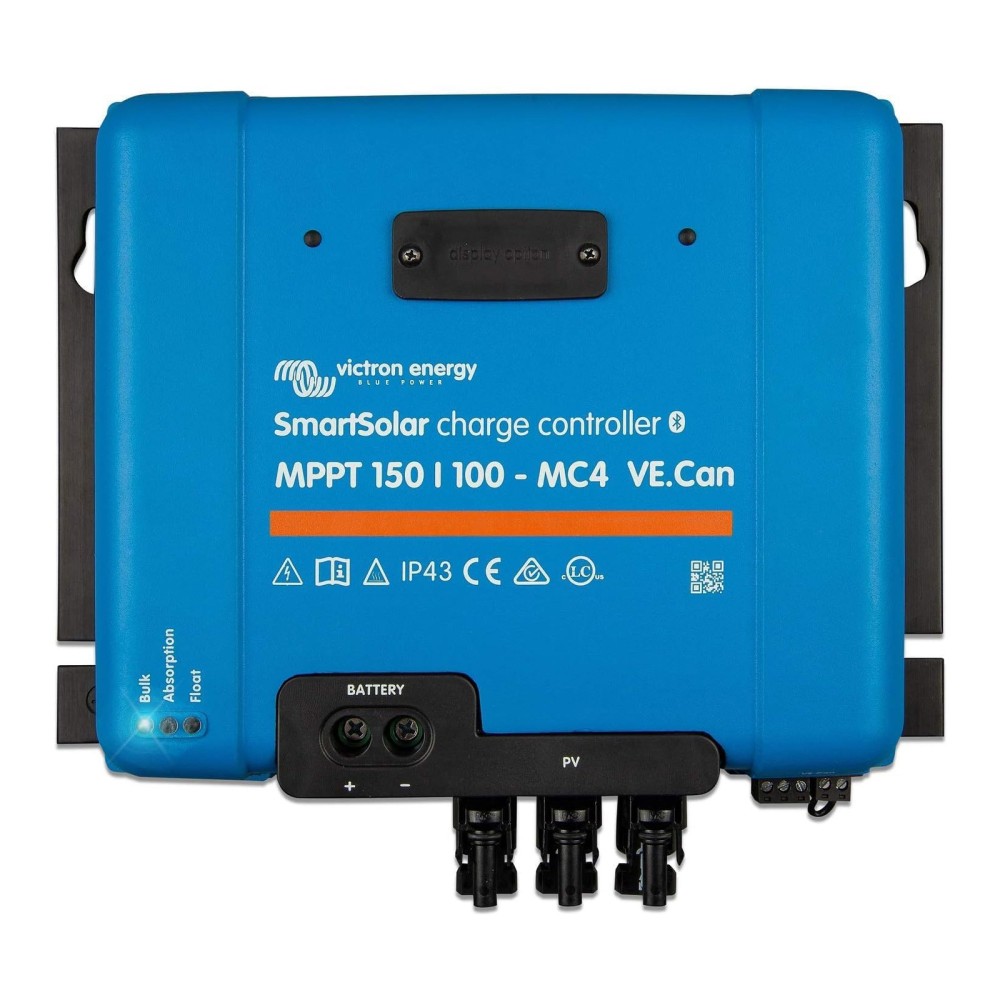

Victron SmartSolar MPPT 150/100-MC-4 VE.Can

MPPT solar charge controller SmartSolar MPPT 150/100-MC-4 VE.Can

€674 Save €135
€539 Tax included

€449 Tax excluded

SmartSolar MPPT 150/100-MC-4 VE.Can is an MPPT solar charge controller for 12/24/48 V batteries, with a charge current of 100 A, a maximum PV open-circuit voltage of 150 V and a maximum efficiency of 98 %. Communication is via Bluetooth, VE.Direct, VE.Can, and the protection rating is IP22 connection area, IP43 electronic components.

Reference SCC115110511

Victron Energy commercial warranty: 5 years for defects in materials and workmanship, handled through us as the seller. In addition to the legal guarantee. Conditions

Your legal guarantee rights

Legal guarantee

EU harmonised notice on the legal guarantee of conformity

More information: europa.eu/youreurope/guarantees
Open the notice at full size

SmartSolar MPPT 150/100-MC-4 VE.Can - MPPT solar charge controller for 12/24/48 V batteries

SmartSolar MPPT 150/100-MC-4 VE.Can is a solar charge controller with maximum power point tracking (MPPT) for 12/24/48 V batteries, with a charge current of 100 A and a maximum PV open-circuit voltage of 150 V. The built-in Bluetooth, the VE.Direct port and VE.Can allow configuration via VictronConnect and connection to a GX device.

Key features:

  • Battery voltage: 12/24/48 V, automatic selection
  • Charge current: 100 A
  • Maximum PV voltage (Voc): 150 V
  • Maximum PV power: 1450 W (12 V), 2900 W (24 V), 5800 W (48 V)
  • Maximum efficiency: 98 %
  • Communication: Bluetooth, VE.Direct, VE.Can
  • Protection rating: IP22 connection area, IP43 electronic components

MPPT technology continuously monitors the voltage and current of the solar panels (PV) and tracks the maximum power point; the benefit is most visible when the sky is partly cloudy and the light intensity changes constantly. The controller can also recharge a deeply discharged battery that is not permanently sulfated or otherwise damaged, and can operate with a battery voltage from 0 V.

With built-in Bluetooth, the controller is configured and monitored remotely with a smartphone or another device via VictronConnect. If the installation is connected to the internet through a GX device, the Victron Remote Management (VRM) portal gives access to all the data, and for locations without an internet connection the GlobalLink 520 device can be used. VictronConnect and VRM are free of charge. The controller has CAN bus ports for communication with other VE.Can SmartSolar chargers: the units are daisy-chained with a single RJ45 cable between them, synchronize their charging stages, and can send their data, through a single cable, to a GX monitoring device.

The PV connection uses MC4 connectors (three pairs), with a maximum PV current of 30 A per connector. Selecting a 36 V battery voltage requires a software tool.

Technical specifications

Battery voltage (automatic selection)12V / 24V / 48V automatic selection (a software tool is required to select 36V)
Rated charge current100 A
Rated PV power (12 V)1450 W
Rated PV power (24 V)2900 W
Rated PV power (36 V)4350 W
Rated PV power (48 V)5800 W
Absorption charge voltage14.4V / 28.8V / 57.6V (adjustable)
Float charge voltage13.8V / 27.6V / 55.2V (adjustable)
Charge algorithmAdaptive multi-stage (adjustable)
Temperature sensorInternal
Temperature compensation (12 V)-16 mV/°C
Temperature compensation (24 V)-32 mV/°C
Temperature compensation (48 V)-64 mV/°C
Maximum efficiency98 %
Self-consumptionLess than 35mA @ 12V / 20mA @ 48V
Maximum PV open-circuit voltage150 V
PV start-up voltageThe PV voltage must exceed Vbat + 5V for the controller to start. After that, the minimum PV voltage is Vbat + 1V
Number of MPPT trackers1
Maximum PV current per MC4 connector30 A
Maximum PV short-circuit current70 A
ProtectionsOutput short circuit, Over-temperature, Reverse PV polarity
Operating temperature range-30 … 60 °C
Maximum humidity95 %
Maximum altitude5000
Environmental conditionsIndoor, non-climate-controlled
Pollution degreePD3
BluetoothYes
Data communicationBluetooth, VE.Direct, VE.Can
Remote on/off terminalYes
Programmable relayDPST, AC ratings: 240VAC / 4A, DC ratings: 4A up to 35VDC, 1A up to 60VDC
Maximum number of units in synchronized parallel operation25
Maximum number of units in synchronized parallel operation (Bluetooth)10
Battery terminalsScrew terminals 35 mm² (2 AWG)
PV terminalsMC4 connectors (three pairs)
Remote on/off terminal connectionTwo-pole screw terminal
Relay terminal connectionThree-pole screw terminal
ColourBlue (RAL 5012)
Protection ratingIP22 (connection area), IP43 (electronic components)
Weight4.5 kg
Height246 mm
Width295 mm
Depth103 mm
SafetyCSA C22.2, EN-IEC 62109-1, UL 1741
Data retention period46 days
Stored dataBattery voltage, Battery current, Battery temperature, PV voltage, PV current, Load output current

Data sheet

Reference
SCC115110511
Brand
Victron Energy
Product type
MPPT controller
Maximum efficiency
98 %
Battery voltage
12 V
24 V
48 V
Charge current class
71+ A
Max. charge current
100 A
Absorption charge voltage
14.4/28.8/57.6 V
Float charge voltage
13.8/27.6/55.2 V
Charge algorithm
Multi-stage adaptive (adjustable)
Max. PV voltage (Voc)
150 V
Max. PV short-circuit current
70 A
Max. PV power (by battery voltage)
1450 W (12 V), 2900 W (24 V), 4350 W (36 V), 5800 W (48 V)
Bluetooth (app)
Yes
Communication interfaces
Bluetooth
VE.Can
VE.Direct
Programmable relay
Yes
Protections
Output short-circuit, overtemperature, PV reverse polarity
Dimensions (H x W x D)
246 x 295 x 103 mm
Weight
4.5 kg
Ingress protection (IP)
IP22 (connection area), IP43 (electronics)
Operating temperature
-30 ... 60 °C
Max. relative humidity
95 %
Colour
Blue
Standards and compliance
CSA C22.2, EN-IEC 62109-1, UL 1741

We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
