€77 Tax excluded

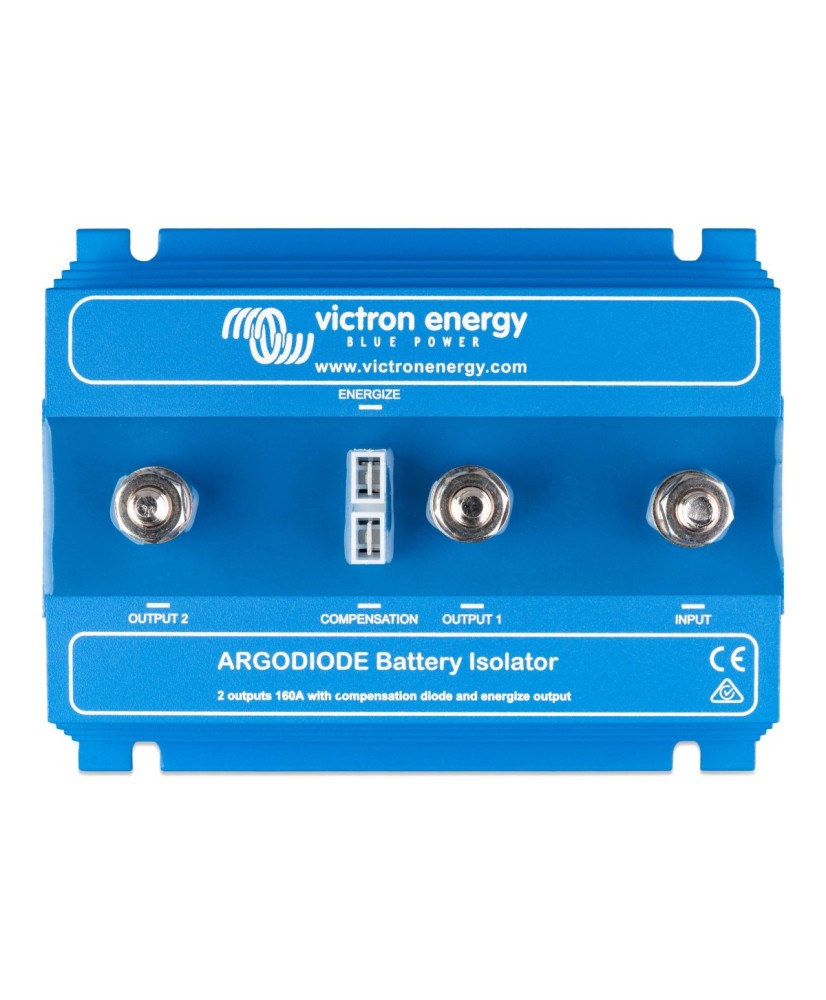

Argodiode 160-2AC is a battery isolator with Schottky diodes that allows two batteries to be charged simultaneously from a single alternator, without the batteries being connected to each other. Discharging the service battery does not discharge the starter battery, and the voltage drop stays low. It supports up to 160 A in 12 V or 24 V systems.
Victron Energy commercial warranty: 5 years for defects in materials and workmanship, handled through us as the seller. In addition to the legal guarantee. Conditions
Argodiode 160-2AC is a battery isolator with Schottky diodes that allows two batteries to be charged simultaneously from a single alternator, without the batteries being connected to each other. Discharging the service battery does not discharge the starter battery, and the voltage drop stays low. It supports up to 160 A in 12 V or 24 V systems.
Argo diode isolators allow two or more batteries to be charged simultaneously from a single alternator, without connecting the batteries to each other. For example, discharging the service battery does not cause the starter battery to discharge. Thanks to the use of Schottky diodes, the voltage drop across the diodes is low.
| Maximum charge current | 160 A |
|---|---|
| Maximum alternator current | 160 A |
| Number of batteries | 2 |
| Nominal battery voltage | 12V or 24V |
| Alternator excitation input | Yes |
| Battery terminals | M8 bolts |
| Alternator terminal | M8 bolts |
| Compensation diode terminal | Faston 6.3 mm |
| Excitation terminal | Faston 6.3 mm |
| Weight | 1.1 kg |
| Height | 60 mm |
| Width | 120 mm |
| Depth | 150 mm |
We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
Compatibility is calculated automatically from the manufacturers’ technical data and is for information only. For complex systems, we recommend having the configuration checked by a consultant before ordering. Details in the Terms and conditions
