€90 Tax excluded

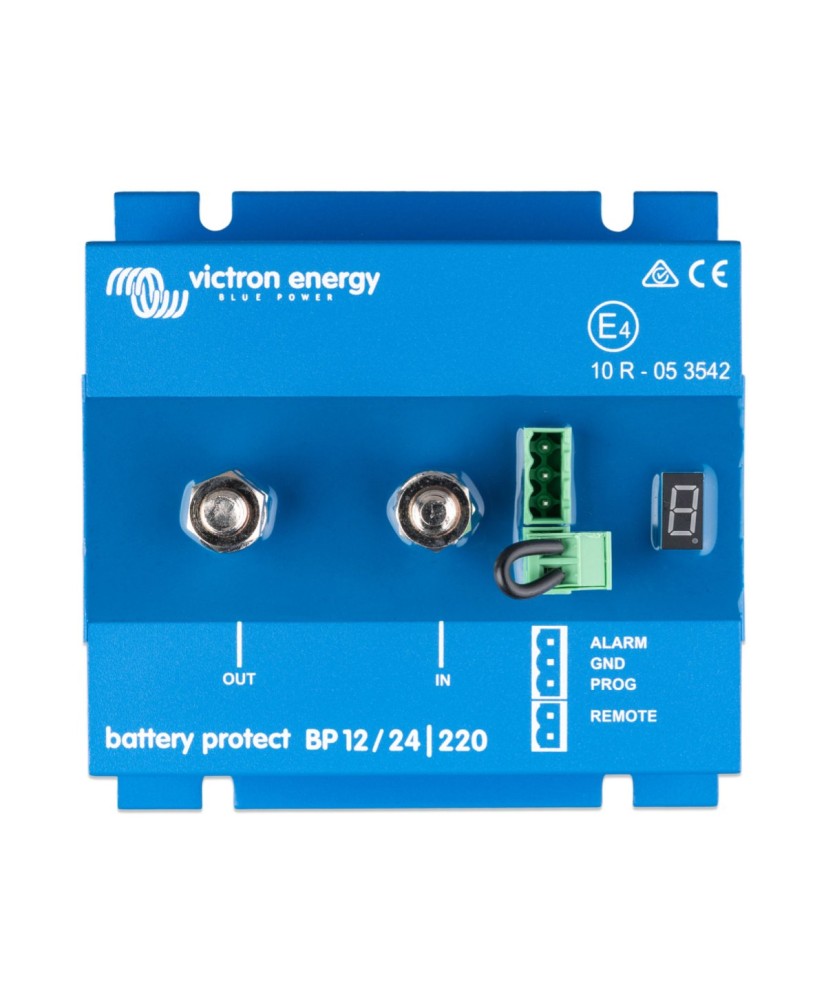

Smart BatteryProtect 12/24V-220A is a battery protection device that disconnects non-essential loads before the battery is completely discharged or can no longer start the engine. The connect and disconnect thresholds are set via Bluetooth, or one of the nine preset levels is selected with the programming pin. It supports 220 A continuous and 600 A peak.
Victron Energy commercial warranty: 5 years for defects in materials and workmanship, handled through us as the seller. In addition to the legal guarantee. Conditions
Smart BatteryProtect 12/24V-220A is a battery protection device that disconnects non-essential loads before the battery is completely discharged or can no longer start the engine. The connect and disconnect thresholds are set via Bluetooth, or one of the nine preset levels is selected with the programming pin. It supports 220 A continuous and 600 A peak.
Smart BatteryProtect disconnects the battery from non-essential loads before it is completely discharged (which would damage the battery) or before it is left with insufficient power to start the engine.
You can set any of the required connect/disconnect levels when using Bluetooth to program the Smart BatteryProtect. Alternatively, one of the nine predefined connect/disconnect levels can be set with the programming pin (see the manual).
If necessary, Bluetooth can be disabled.
Smart BatteryProtect is a unidirectional device. It can handle current in one direction only, either the current to a load or the current from a charger, but not both at the same time. In addition, current can only flow from the IN (input) terminal to the OUT (output) terminal. When used with a load, the battery is connected to the IN terminal, and when used with a charger, the charger is connected to the IN terminal.
| Nominal battery voltage | 12V or 24V (automatic detection) |
|---|---|
| Operating voltage range | 6 … 35 V |
| Maximum continuous load current at 40 °C | 220 A |
| Maximum continuous load current at 60 °C | 132 A |
| Rated peak current | 600 A |
| Reverse current | No |
| Current draw when on (Bluetooth disabled) | 1.2 mA |
| Current draw when on (Bluetooth enabled) | 1.4 mA |
| Current draw when off (Bluetooth disabled) | 0.7 mA |
| Current draw when off (Bluetooth enabled) | 0.9 mA |
| Alarm output delay | 12 s |
| Maximum load on the alarm output | 50 mA |
| Load disconnect delay | 90 s |
| Load reconnect delay | 30 s |
| Default disconnect threshold (12 V) | 10.5 V |
| Default disconnect threshold (24 V) | 21 V |
| Default connect threshold (12 V) | 12 V |
| Default connect threshold (24 V) | 24 V |
| Remote on/off terminal | Yes |
| Bluetooth | Yes |
| Protections | Output short circuit |
| Operating temperature range | -40 … 50 °C |
| Battery and load terminals | M8 bolts |
| Remote control terminal | Two-pole screw terminal |
| Alarm terminal | Three-pole screw terminal |
| Protection rating (connection area) | IP00 |
| Protection rating (electronic components) | IP67 |
| Weight | 0.8 kg |
| Height | 60 mm |
| Width | 123 mm |
| Depth | 121 mm |
We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
Compatibility is calculated automatically from the manufacturers’ technical data and is for information only. For complex systems, we recommend having the configuration checked by a consultant before ordering. Details in the Terms and conditions
