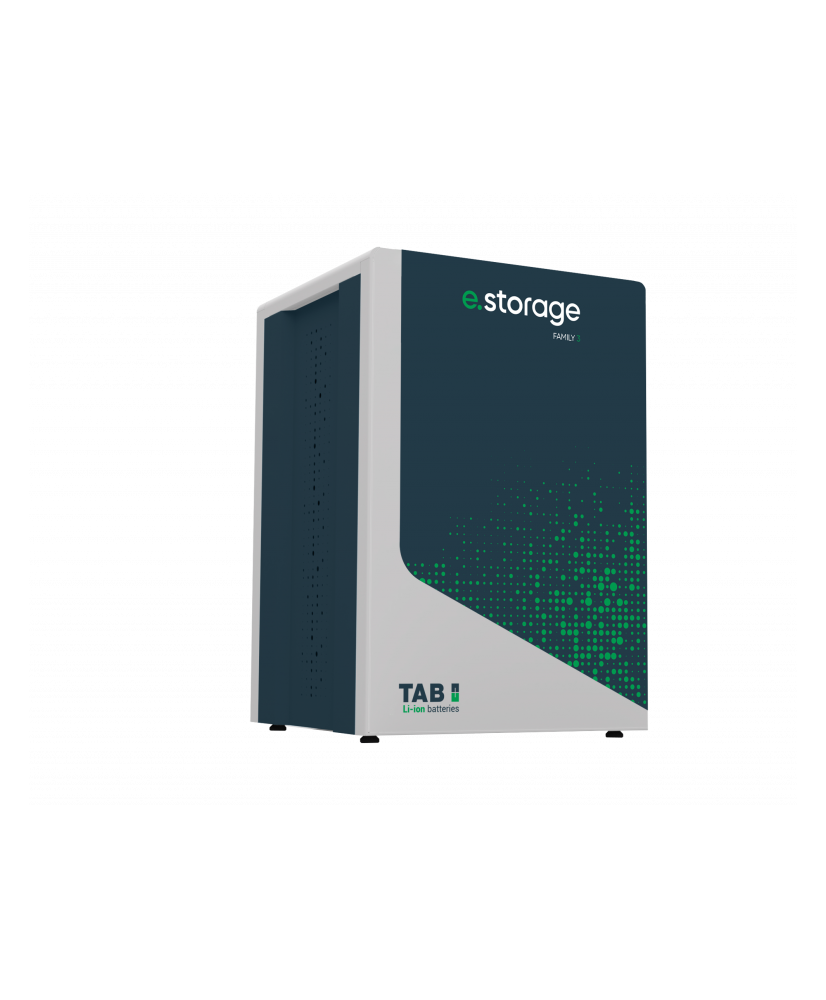

LiFePO4 battery TAB e.storage FAMILY 25.6kWh

LiFePO4 battery TAB e.storage FAMILY 25.6kWh

51.2 V
€7,200 Tax included

€6,000 Tax excluded

The TAB e.storage FAMILY battery is an efficient solution for energy management in homes or businesses. With a modular design, it allows for capacity expansion up to 25 kWh, adapting to your needs.

Reference TAB-1026520

Your legal guarantee rights

Legal guarantee

EU harmonised notice on the legal guarantee of conformity

More information: europa.eu/youreurope/guarantees
Open the notice at full size

LiFePO4 battery TAB e.storage FAMILY 25.6kWh

The TAB e.storage FAMILY battery is an efficient solution for energy management in homes or businesses. With a modular design, it allows for capacity expansion up to 25 kWh, adapting to your needs.

The product consists of 5 modules, each with a capacity of 5.12 kWh.

Main features:

  • Nominal voltage: 51.2V
  • Usable capacity: from 5 kWh to 25
  • LiFePO4 technology for long life and increased safety
  • Compact and robust design
  • Integrated fuses for additional protection
  • Compatible with leading inverters such as Victron, Deye and SMA Sunny Island
  • Made in the European Union

Advantages:

  • Savings on your electricity bill
  • Storing solar energy for later use
  • Customizable system according to needs
  • Easy installation and minimal maintenance

Choose TAB e.storage FAMILY for a safe, efficient and adaptable energy storage solution to your needs.

Data sheet

Reference
TAB-1026520
Product type
Battery
Battery chemistry
LiFePO4 (lithium iron phosphate)
Battery voltage
48 V
Nominal voltage (exact)
51.2 V
Capacity class
20+ kWh
Nominal energy
25.6 kWh
Max. continuous discharge current
500 A
Built-in BMS
Yes
Max. charge current
500 A
Communication interfaces
CAN-bus
RS485
Dimensions (H x W x D)
1220 x 470 x 550 mm
Weight
279.5 kg
Operating temperature
0-45 °C
Max. relative humidity
95 %
Standards and compliance
IEC62619, IEC63056, UN38.3
Warranty
5 years

We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
