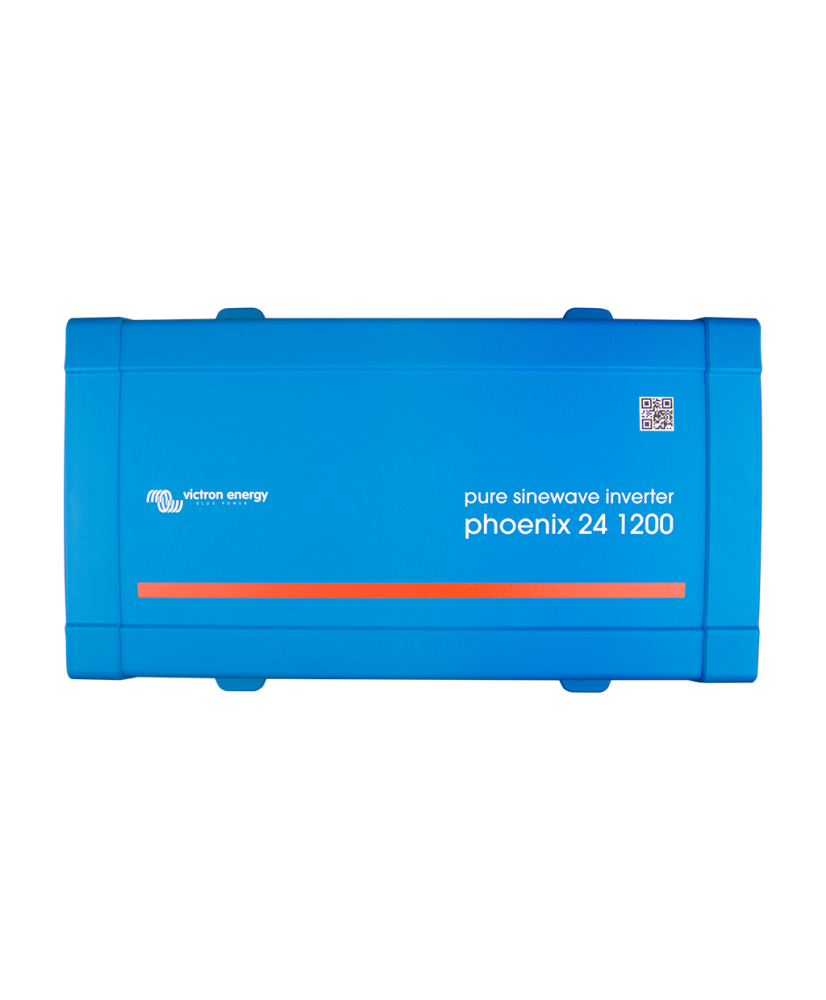

Victron Phoenix Inverter 1200VA with SinusMAX Technology – 24V

The Victron Phoenix 1200VA inverter is designed for professional use where reliability, efficiency, and consistent performance are required. It uses SinusMAX technology, which allows it to start heavy loads such as power tools or devices with high inrush currents.

Main Features:

• Rated Power: 1200VA (1000W at 25°C / 850W at 40°C)
• Peak Power: 2200W
• Input Voltage: 24V DC (operating range: 18.4 – 34V)
• Output Voltage: 110V or 230V AC ±3% / 50Hz or 60Hz ±0.1%
• Max Efficiency: 91%
• No-load Power Consumption: only 8W
• Dimensions: 117 x 232 x 327 mm
• Weight: 7.4 kg

SinusMAX Technology:

Provides reliable startup even for difficult loads. Unlike standard high-frequency inverters, the Phoenix model can easily power devices such as computers, tools, or other sensitive electronics.

Useful Functions:

• Status LED for quick diagnostics
• Remote on/off switch input – available on all models
• Compatible with Filax automatic transfer switch: Less than 20 ms switch time – ideal for sensitive electronics

Build and Protection:

• Protection rating: IP20
• Active cooling: fan-cooled
• Operating temperature range: -40°C to +65°C
• Max humidity: 95% (non-condensing)

Certifications:

EN-IEC 60335-1, EN-IEC 62109-1, UL 458, EN 55014-1/2, IEC 61000-6-1/2/3

The Phoenix 1200VA inverter is a solid choice for solar systems that need dependable performance in a wide range of conditions.
