The Victron Inverter RS 48/6000 230V Smart Solar combines a 48 V sine-wave inverter (4800 W continuous, 9000 W peak for 3 s) with an MPPT solar charger of up to 450 V and 4000 W. The maximum efficiency is 96.5% and the maximum charging current is 100 A.
Victron Energy commercial warranty: 5 years for defects in materials and workmanship, handled through us as the seller. In addition to the legal guarantee. Conditions

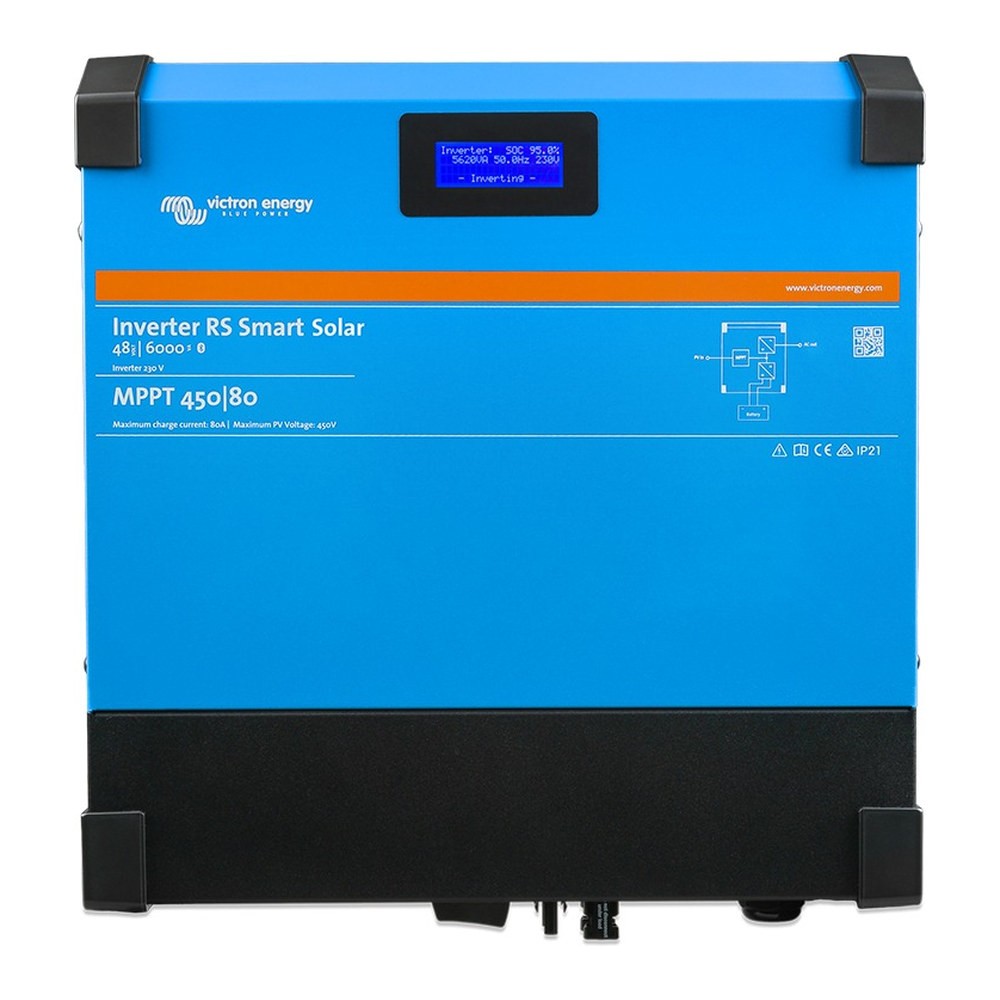

Victron Inverter RS 48/6000 230V Smart Solar is a combination of a 48 V DC, 6 kVA sine-wave inverter at 230 V AC and a high-voltage MPPT solar charger with a maximum solar charging power of 4000 W. It has a display, Bluetooth, VE.Can and VE.Direct.
The inverter produces a perfect sine wave, capable of supplying high-power appliances. It is powered by a bidirectional DC-DC converter, which can charge the battery when surplus solar energy is available or convert energy from the battery when needed. The MPPT operating voltage range is 65-450 V, with a PV start-up voltage of 120 V. Thanks to high-frequency technology, the inverter weighs only 11 kg and offers excellent efficiency, low standby power and very quiet operation.
The parameters can be read on the display or, via Bluetooth, with a smartphone or another compatible device; settings are changed with VictronConnect. The VE.Can port is used to connect to a GX device for system monitoring, data logging and remote firmware updates, and the VE.Direct port to connect to the GlobalLink 520. Both parallel PV strings connected to the MC4 connectors can be isolated with the PV isolator built into the bottom of the unit.
The I/O connections include a programmable relay, a temperature sensor and a voltage sensor; the remote input can also be configured for the Victron smallBMS. Up to 12 units can be connected in parallel and, in a three-phase configuration, up to 4 units per phase.
| Includes MPPT | Yes |
|---|---|
| Nominal battery voltage | 48 V |
| DC input voltage range | 38 … 62 V |
| AC output voltage | 230 V |
| Maximum continuous inverter current | 25 A |
| Frequency | 50 Hz |
| Continuous output power at 25 °C (W) - A | 4800 W |
| Continuous output power at 25 °C (W) - B | 5300 W |
| Continuous output power at 40 °C | 4500 W |
| Continuous output power at 65 °C | 3000 W |
| Peak power (3 s) | 9000 W |
| Peak power (4 min) | 7000 W |
| Short-circuit current | 45 A |
| Maximum efficiency | 96.5% |
| No-load consumption | 20 W |
| Shutdown at low battery | 37.2 V |
| Restart after low battery | 43.6 V |
| Maximum DC voltage | 450 V |
| Nominal DC voltage | 300 V |
| Start-up voltage | 120 V |
| MPPT operating voltage range | 65 … 450 V |
| Maximum PV operating current | 18 A |
| Maximum PV short-circuit current (reverse polarity) | 20 A |
| Maximum solar charging power | 4000 W |
| Maximum PV short-circuit current | 30 A |
| Leakage current trip threshold | 30 mA |
| Insulation fault threshold | 100 kΩ |
| Charging voltage range | 36 … 60 V |
| Absorption charging voltage | 57.6 V |
| Float charging voltage | 55.2 V |
| Maximum AC-coupled PV power | 5000 W |
| Maximum charging current | 100 A |
| Battery temperature sensor | Included |
| Battery voltage measurement (voltage sense) | Yes |
| Parallel and three-phase operation | Supports 12 units in parallel; in three-phase operation, 4 units per phase |
| Programmable relay | DC ratings: 4A up to 35VDC and 1A up to 70VDC |
| Protections | Output short circuit, overload, battery voltage too high, battery voltage too low, over-temperature, AC voltage at the inverter output, earth leakage on the solar side |
| Communication port | Bluetooth, VE.Direct, VE.Can |
| Bluetooth | Yes, -4dBm, 2402 - 2480 MHz |
| General-purpose port | Yes, 2x |
| Remote on/off | Yes |
| Fully programmable | Yes |
| Operating temperature range | -40 … 60 °C |
| Cooling | Yes |
| Maximum altitude | 2000 m |
| Maximum humidity | 95% |
| AC connection | Screw terminals 10 mm² (8 AWG) |
| Battery connection | M8 screws |
| Colour | Blue (RAL 5012) and black (RAL 9017) |
| Material | Steel |
| Protection rating | IP21 |
| Weight | 11 kg |
| Height | 425 mm |
| Width | 440 mm |
| Depth | 125 mm |
| Safety | EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2 |
| Emission and immunity | EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3 |
