Deye energy storage system, 99.84 kWh, HV, BOS-A95

Name: Deye energy storage system, 99.84 kWh, HV, BOS-A95
Brand: Deye
SKU: BOS-A95
Price: 22220.00 EUR
Availability: InStock

499.2 V

€22,220 Tax included

€18,517 Tax excluded

BOS-A95 is a Deye BOS-A HV storage system with 99.84 kWh of nominal energy and 89.85 kWh of usable energy, made of 13 LiFePO4 modules in series. The nominal voltage is 499.2 V, the maximum charge and discharge current is 160 A, the protection rating is IP20 and the weight is approximately 934 kg.

Reference BOS-A95

Your legal guarantee rights

BOS-A95 - HV LiFePO4 energy storage system, 99.84 kWh

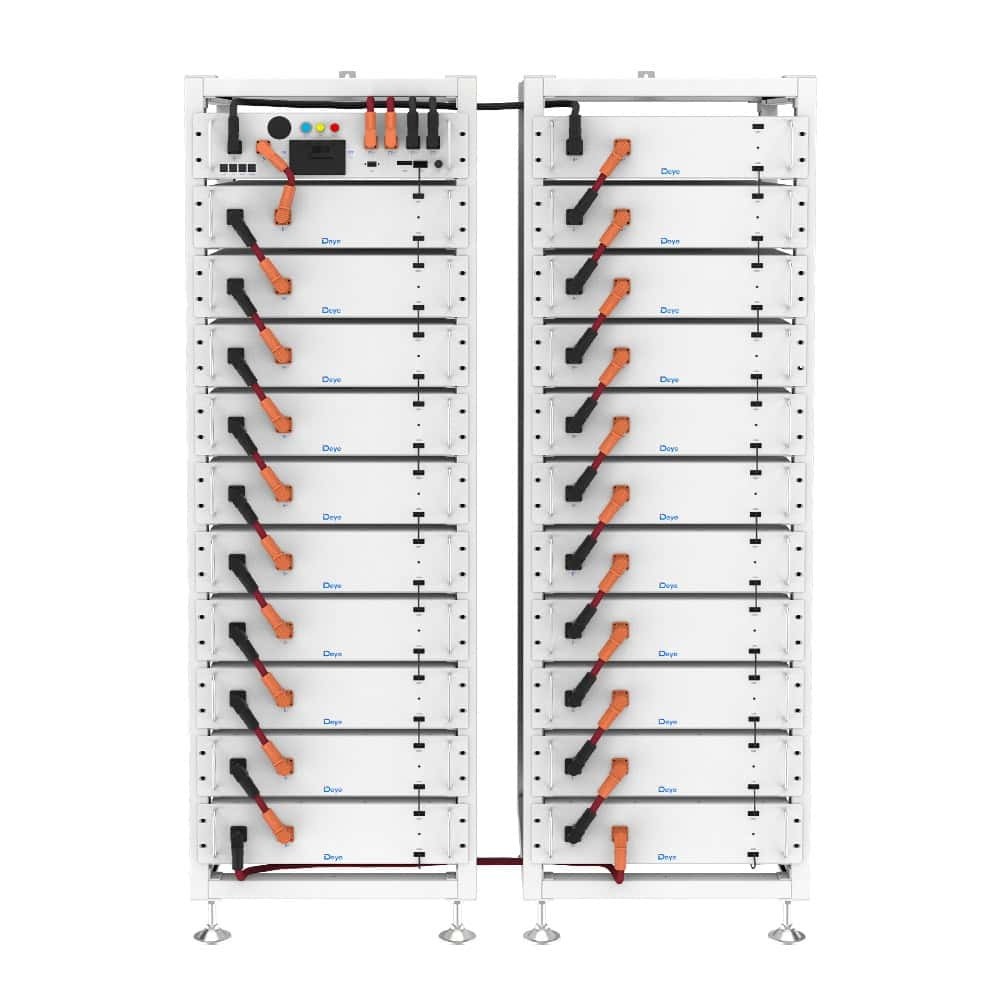

BOS-A95 is a high voltage energy storage system with lithium iron phosphate (LiFePO4) batteries from the Deye BOS-A series for small-scale commercial and industrial applications. It has 13 BOS-A-Pack7.68 modules in series, a BOS-A-PDU-2 control box and a BOS-A-Rack14 rack, with a nominal energy of 99.84 kWh and a nominal voltage of 499.2 V.

Main features:

Nominal energy: 99.84 kWh
Usable energy: 89.85 kWh (90 % DoD)
Nominal voltage: 499.2 V
Voltage range: 436.8 ... 569.4 V
Maximum current: 160 A, charge and discharge
Communication: CAN2.0
Ingress protection: IP20

The system consists of 13 BOS-A-Pack7.68 modules of 7.68 kWh, a BOS-A-PDU-2 control box and a BOS-A-Rack14 rack. The maximum continuous discharge rate is 79.87 kW, and the usable energy refers to a 90 % depth of discharge, with charge and discharge at 0.3C at 25 °C.

The BOS-A series is designed for inverters of 50 to 100 kW and offers a cycle life of at least 6000 cycles at 25 ± 2 °C and 0.5C, down to 70 % of capacity. Up to 16 battery racks can be connected in parallel, together with up to 10 inverters in AC parallel.

Technical specifications

Cell chemistry	LiFePO4
Battery modules in series	13
System nominal voltage	499.2 V
System operating voltage	436.8 ... 569.4 V
System energy	99.84 kWh
System usable energy	89.85 kWh (90 % DoD)
Maximum continuous discharge rate	79.87 kW
Recommended charge/discharge current	100 A
Maximum charge/discharge current	160 A
Charging temperature	0 ... 55 °C
Discharging temperature	-20 ... 55 °C
Storage temperature	0 ... 35 °C
Communication port	CAN2.0
Humidity	5 ... 85 % RH
Maximum altitude	3000 m
Ingress protection	IP20
Installation	Rack mounted
Recommended depth of discharge	90 %
Cycle life	≥ 6000 (25 ± 2 °C, 0.5C / 0.5C, EOL 70 %)
Certification	CE, IEC 62619, IEC 62040, UN38.3, VDE-2510
Dimensions (W x D x H)	610 x 610 x 2350 mm
Approximate weight	934 kg

Data sheet

Reference: BOS-A95
MPN: BOS-A95
Product type: Battery
Battery chemistry: LiFePO4 (lithium iron phosphate)
Battery voltage: HV (high voltage)
Nominal voltage (exact): 499.2 V
Nominal capacity: 200 Ah
Capacity class: 20+ kWh
Nominal energy: 99.84 kWh
Max. continuous discharge current: 160 A
Built-in BMS: Yes
Max. charge current: 160 A
Communication interfaces: CAN-bus
Dimensions (H x W x D): 2350 x 610 x 610 mm
Weight: 934 kg
Ingress protection (IP): IP20
Operating temperature: charge 0 ... 55 °C, discharge -20 ... 55 °C
Max. relative humidity: 85 %
Standards and compliance: CE, IEC 62619, IEC 62040, UN38.3, VDE-2510

We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
