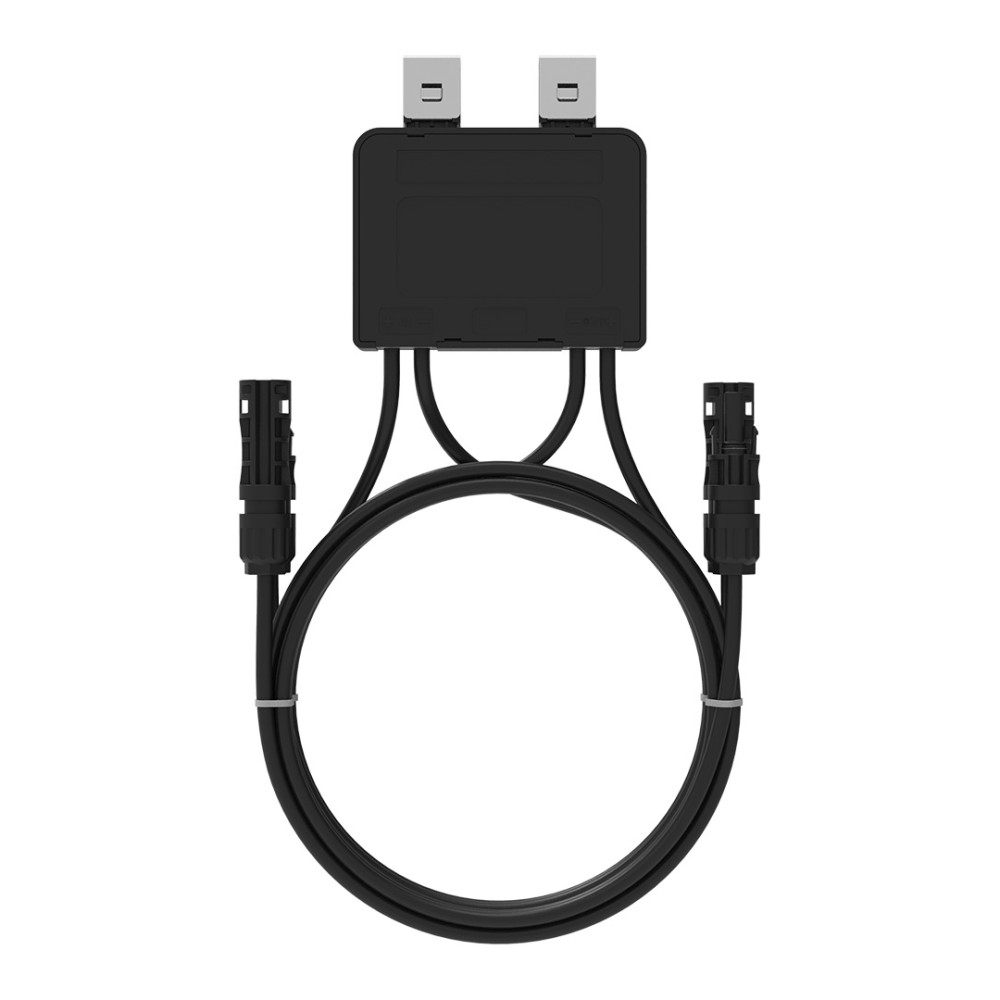

Deye PV module optimizer, 700 W, 80 V, 15 A, SUN-XL02-B

SUN-XL02-B - Module-level photovoltaic optimizer, 700 W

SUN-XL02-B is a Deye photovoltaic optimizer for module-level installation, with a maximum input power of 700 W, a maximum input voltage of 80 V and a maximum current of 15 A. Module-level MPPT tracking can increase energy production by 5-25%.

Main features:

• Maximum input power: 700 W
• Maximum input voltage: 80 V
• MPPT voltage range: 12-80 V
• Maximum input current: 15 A
• Peak efficiency: 99.5%
• Protection degree: IP68
• Communication: PLC, over the PV cables

Maximum power point tracking (MPPT) at module level can increase energy production by 5-25%. The operating status of each photovoltaic module can be monitored in real time to detect problems quickly, and communication over the PV cables removes the need for extra communication cables.

The rapid shutdown function, which quickly brings the DC voltage of the PV array down to a safe range, and the monitoring are only available when the optimizer is used with an optimizer concentrator. The cables have a 4.0 mm² cross-section, with 70 cm on the input and 100 cm on the output, and the connectors are MC4 or compatible.

Technical specifications
