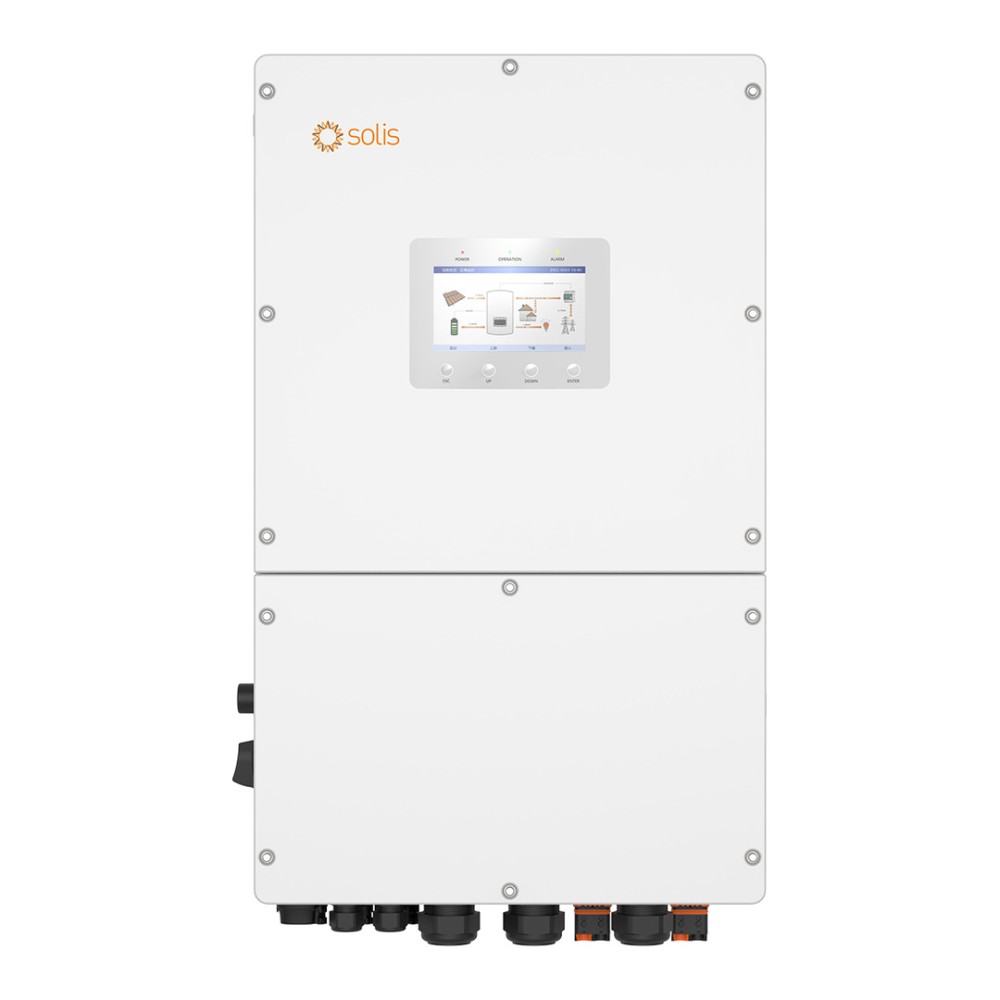

30 kW Solis hybrid inverter, three-phase, HV, S6-EH3P30K-H
  • 30 kW Solis hybrid inverter, three-phase, HV, S6-EH3P30K-H
  • 30 kW Solis hybrid inverter, three-phase, HV, S6-EH3P30K-H
  • 30 kW Solis hybrid inverter, three-phase, HV, S6-EH3P30K-H
  • 30 kW Solis hybrid inverter, three-phase, HV, S6-EH3P30K-H

30 kW Solis hybrid inverter, three-phase, HV, S6-EH3P30K-H

€5,233 Tax included

€4,361 Tax excluded

S6-EH3P30K-H is a 30 kW three-phase hybrid inverter for high-voltage lithium-ion batteries (150-800 V), with 4 MPPT (150-850 V), two battery ports, a maximum charge and discharge current of 140 A (2 x 70 A) and a maximum efficiency of 97.8%. It has IP66 protection, a 7-inch LCD and CAN, RS485 and Ethernet communication.

Reference S6-EH3P30K-H

Your legal guarantee rights

Legal guarantee

EU harmonised notice on the legal guarantee of conformity

More information: europa.eu/youreurope/guarantees
Open the notice at full size

S6-EH3P30K-H - Three-phase hybrid inverter 30 kW for HV batteries

S6-EH3P30K-H is a 30 kW three-phase hybrid inverter for high-voltage lithium-ion batteries (150-800 V), with 4 MPPT inputs, two independent battery ports and a 7-inch LCD. It combines solar conversion, battery charging and load supply in one unit and can run in parallel, in grid-connected or off-grid systems.

Main features:

  • AC rated power: 30000 W
  • HV battery: 150-800 V, 2 ports, maximum 2 x 70 A
  • PV input: 4 MPPT, 150-850 V, maximum 60000 W
  • Maximum efficiency: 97.8%
  • Communication: CAN, RS485, Ethernet, Bluetooth
  • Protection and cooling: IP66, intelligent fans
  • Parallel operation: Up to 6 units

The inverter connects to high-voltage lithium-ion batteries in the 150-800 V range through two independent 70 A ports (total current up to 140 A), is compatible with 100-280 Ah battery modules and communicates with the battery over CAN or RS485. The maximum charge and discharge power is 33 kW (maximum 33 kW per port). Up to 60 kW of PV power can be used, on 4 MPPT inputs with up to 2 strings each (maximum string current 20 A), with a maximum voltage of 1000 V and a start-up voltage of 180 V.

In off-grid mode it withstands 1.6 times the rated power for 2 s, and the switchover from grid to backup supply takes less than 10 ms; the backup output accepts unbalanced loads. Both DC and AC coupling are supported, with an adjustable battery reserve and intelligent load prioritisation, and the generator can be connected to a dedicated port, in a range of 20-100% of the rated power.

The system can be expanded in parallel, up to 500 kW in total (for more than 6 units the Solis STS cabinet is recommended), and remote monitoring and control are done through the SolisCloud platform. The package includes 3 current transformers (CT) and a data logging stick; the meter is optional. The IP66 enclosure operates from -25 °C to +60 °C and at altitudes up to 4000 m. The weight is 73 kg.

Technical specifications

Inverter typeThree-phase hybrid inverter, for high-voltage (HV) batteries
Battery typeLi-ion
Battery voltage range150-800 V
Max. charge/discharge current70 A x 2 (140 A parallel)
Max. charge/discharge power33 kW
Max. charge/discharge power per port33 kW
Number of battery ports2
Battery communicationCAN / RS485
Recommended max. PV array size60 kW
Max. usable PV input power60000 W
Max. input voltage1000 V
Rated voltage600 V
Start-up voltage180 V
MPPT voltage range150-850 V
Max. input current4 x 40 A
Max. string current20 A
Max. short-circuit current4 x 60 A
MPPT number / max. number of strings4/8
Rated output power30000 W
Max. apparent output power30000 VA
Rated grid voltage3/N/PE, 220/380 V, 230/400 V
Rated grid frequency50 Hz / 60 Hz
Rated grid output current45.6 A / 43.3 A
Power factor> 0.99 (0.8 leading - 0.8 lagging)
THDi< 3%
Max. AC passthrough current91.2 A / 86.6 A
Rated output power (back-up)30000 W
Max. apparent output power (back-up)1.6 x rated power, 2 s
Back-up switch time< 10 ms
Rated output current (back-up)45.6 A / 43.3 A
THDv (linear load)< 2%
Generator max. input power30000 W
Generator rated input current45.6 A / 43.3 A
Max. efficiency97.8%
EU efficiency97.4%
BAT charged by PV max. efficiency98.5%
BAT charged/discharged to AC max. efficiency97.5%
Integrated protectionsAnti-islanding protection, output overcurrent protection, short-circuit protection, integrated DC switch, DC reverse-polarity protection, DC type II and AC type II surge protection, integrated AFCI 2.0 (optional)
Dimensions (W x H x D)530 x 880 x 290 mm
Weight73 kg
Inverter topologyTransformerless
Self-consumption (night)< 35 W
Operating temperature range-25 ... +60 °C
Relative humidity0-100%
Ingress protectionIP66
Cooling conceptIntelligent fan-cooling
Max. operation altitude4000 m
Grid connection and safety / EMC standardsG99, VDE-AR-N 4105, VDE V 0124, EN 50549-1, EN 50549-10, VDE 0126, UTE C 15, NTS 631, RD 1699, RD 244, UNE 206006, UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, TOR, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA; IEC/EN 62109-1/-2, IEC/EN 61000-6-2/-4, EN 55011
PV connectionMC4 quick connection plug
Battery connectionTerminal connector
AC connectionTerminal block
Display7.0" LCD display & Bluetooth + APP
Communication interfaceCAN, RS485, Ethernet, Optional: Wi-Fi, Cellular, LAN

Data sheet

Reference
S6-EH3P30K-H
Product type
Inverter
Inverter type
Hybrid (built-in MPPT)
Phases
Three-phase
Power class
20+ kW
Continuous output power (VA, 25 °C)
30000 VA
Continuous output power (W, 25 °C)
30000 W
Peak power
1.6 x rated power, 2 s
Maximum efficiency
97.8 %
Zero-load power
under 35 W
Battery voltage
HV (high voltage)
DC input voltage range
150-800 V
Max. charge current
140 A (2 x 70 A)
Max. PV input voltage
1000 V
Max. PV short-circuit current
3 x 60 A
Number of MPPT trackers
3
MPPT voltage range
150-850 V
AC output voltage
220/380 V, 230/400 V
Output frequency
50/60 Hz
Max. AC input current
91.2 A
Parallel operation
Yes
Communication interfaces
Bluetooth
CAN-bus
Ethernet
RS485
Protections
Anti-islanding protection, output overcurrent protection, short-circuit protection, integrated DC switch, DC reverse-polarity protection, DC type II and AC type II surge protection, integrated AFCI 2.0 (optional)
Dimensions (H x W x D)
880 x 530 x 290 mm
Weight
73 kg
Ingress protection (IP)
IP66
Operating temperature
-25 ... 60 °C
Max. relative humidity
100 %
Standards and compliance
G99, VDE-AR-N 4105, VDE V 0124, EN 50549-1, EN 50549-10, VDE 0126, UTE C 15, NTS 631, RD 1699, RD 244, UNE 206006, UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, TOR, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA

We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
