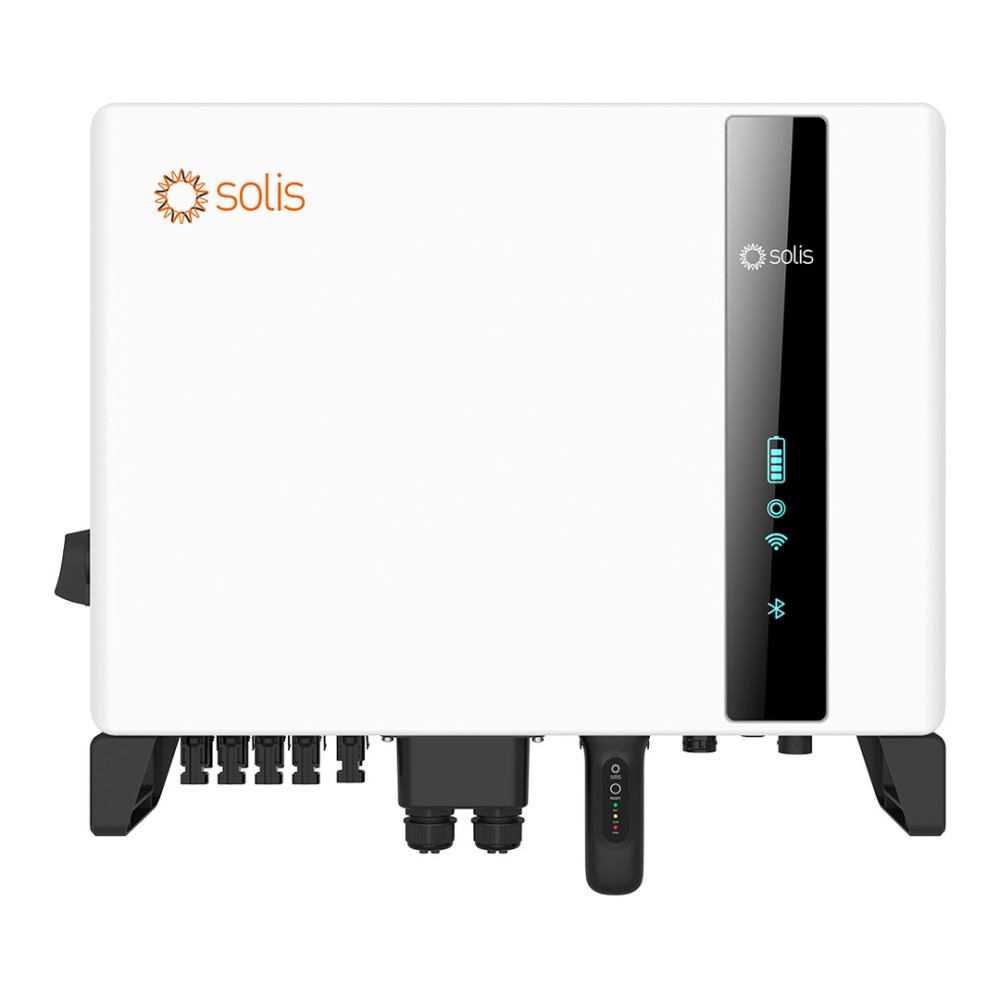

5 kW Solis hybrid inverter, three-phase, HV, S6-EH3P5K2-H
  • 5 kW Solis hybrid inverter, three-phase, HV, S6-EH3P5K2-H
  • 5 kW Solis hybrid inverter, three-phase, HV, S6-EH3P5K2-H
  • 5 kW Solis hybrid inverter, three-phase, HV, S6-EH3P5K2-H
  • 5 kW Solis hybrid inverter, three-phase, HV, S6-EH3P5K2-H

5 kW Solis hybrid inverter, three-phase, HV, S6-EH3P5K2-H

€1,677 Tax included

€1,398 Tax excluded

S6-EH3P5K2-H is a 5 kW three-phase hybrid inverter for high-voltage lithium-ion batteries (120-600 V), with 2 MPPT (200-850 V), a maximum charge and discharge current of 25 A and a maximum efficiency of 96.5%. It has IP66 protection, natural cooling and CAN and RS485 communication, and parallel operation allows up to 6 units.

Reference S6-EH3P5K2-H

Your legal guarantee rights

Legal guarantee

EU harmonised notice on the legal guarantee of conformity

More information: europa.eu/youreurope/guarantees
Open the notice at full size

S6-EH3P5K2-H - Three-phase hybrid inverter 5 kW for HV batteries

S6-EH3P5K2-H is a 5 kW three-phase hybrid inverter for high-voltage lithium-ion batteries (120-600 V), with 2 MPPT inputs, no fans, and an LED indicator and app access over Bluetooth. It combines solar conversion, battery charging and load supply in one unit and can run in parallel, up to 6 units, in grid-connected or off-grid systems.

Main features:

  • AC rated power: 5000 W
  • HV battery: 120-600 V, lithium-ion, max. current 25 A
  • PV input: 2 MPPT, 200-850 V, maximum 8000 W
  • Maximum efficiency: 96.5%
  • Communication: CAN, RS485, Bluetooth
  • Protection and cooling: IP66, natural cooling
  • Parallel operation: Up to 6 units

The inverter connects to high-voltage lithium-ion batteries in the 120-600 V range (battery voltages up to 700 V are supported), communicates with the battery over CAN or RS485 and is compatible with the HV batteries of the brands in the manufacturer compatibility list, for example BYD, Dyness or Pylontech. The recommended PV array size is up to 10 kW, of which a maximum of 8000 W can be used, with one string per MPPT, a maximum input voltage of 1000 V and a start-up voltage of 160 V.

The three-phase output (3/N/PE, 380/400 V) accepts unbalanced loads, with up to 50% of the rated power on each phase, and the maximum power on the battery input is 5 kW. The backup output withstands 1.6 times the rated power for 60 s, and the switchover from grid to backup supply takes less than 10 ms. The inverter can run on solar energy alone, without a grid, can be coupled to an existing grid-connected PV installation with export control, and a generator can be connected on the grid side.

Up to 6 units can be connected in parallel, and remote monitoring and control are done through the SolisCloud platform, with an optional data module (Wi-Fi, cellular or LAN). The package includes an Eastron meter with 3 current transformers (CT). The IP66 enclosure, with natural cooling and noise below 46.9 dB(A), operates from -25 °C to +60 °C and at altitudes up to 4000 m.

Technical specifications

Inverter typeThree-phase hybrid inverter, for high-voltage (HV) batteries
Battery typeLi-ion
Battery voltage range120-600 V
Max. supported battery voltage700 V
Max. charge/discharge current25 A
Max. charge/discharge power5 kW
Battery communicationCAN / RS485
Recommended max. PV array size10 kW
Max. usable PV input power8000 W
Max. input voltage1000 V
Rated voltage600 V
Start-up voltage160 V
MPPT voltage range200-850 V
Max. input current16 A / 16 A
Max. short-circuit current24 A / 24 A
MPPT number / max. number of strings2/2
Rated output power5000 W
Max. apparent output power5000 VA
Rated grid voltage3/N/PE, 380 V / 400 V
Rated grid frequency50 Hz / 60 Hz
Rated grid output current7.6 A / 7.2 A
Power factor> 0.99 (0.8 leading - 0.8 lagging)
THDi< 3%
Input voltage range (grid side)304-437 V / 320-460 V
Max. input current (grid side)11.4 A / 10.9 A
Frequency range45-55 Hz / 55-65 Hz
Rated output power (back-up)5000 W
Max. apparent output power (back-up)1.6 x rated power, 60 s
Back-up switch time< 10 ms
Rated output current (back-up)7.6 A / 7.2 A
THDv (linear load)< 2%
Max. power per phase50% of rated power
Max. allowable phase imbalance100%
Max. efficiency96.5%
EU efficiency96.77%
BAT charged by PV max. efficiency98.37%
BAT charged/discharged to AC max. efficiency97.32%
Integrated protectionsAnti-islanding protection, output overcurrent protection, short-circuit protection, integrated DC switch, DC reverse-polarity protection, PV overvoltage protection, battery reverse protection, integrated AFCI 2.0 (optional)
Dimensions (W x H x D)600 x 500 x 210 mm
Weight27.6 kg
Inverter topologyTransformerless
Self-consumption (night)< 25 W
Operating temperature range-25 ... +60 °C
Relative humidity0-100%
Ingress protectionIP66
Noise emission (typical)< 46.9 dB(A)
Cooling conceptNatural cooling
Max. operation altitude4000 m
Grid connection and safety / EMC standardsG98, G99, VDE-AR-N 4105, VDE V 0124, EN 50549-1, VDE 0126, UTE C 15:2019, RD 1699, RD 244, UNE 206006, UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, TOR, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA, EK18; IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-3
PV connectionMC4 connector
Battery connectionQuick connection plug
AC connectionQuick connection plug
DisplayLED indicator & Bluetooth + APP
Communication interfaceCAN, RS485, Optional: Wi-Fi, Cellular, LAN

Data sheet

Reference
S6-EH3P5K2-H
Product type
Inverter
Inverter type
Hybrid (built-in MPPT)
Phases
Three-phase
Power class
3.5-6 kW
Continuous output power (VA, 25 °C)
5000 VA
Continuous output power (W, 25 °C)
5000 W
Peak power
1.6 x rated power, 60 s
Maximum efficiency
96.5 %
Zero-load power
under 25 W
Battery voltage
HV (high voltage)
DC input voltage range
120-600 V
Max. charge current
25 A
Max. PV input voltage
1000 V
Max. PV short-circuit current
24 A / 24 A
Number of MPPT trackers
2
MPPT voltage range
200-850 V
AC output voltage
380/400 V
Output frequency
50/60 Hz
AC input voltage range
304-437 V / 320-460 V
Max. AC input current
11.4 A
Parallel operation
Yes
Communication interfaces
Bluetooth
CAN-bus
RS485
Protections
Anti-islanding protection, output overcurrent protection, short-circuit protection, integrated DC switch, DC reverse-polarity protection, PV overvoltage protection, battery reverse protection, integrated AFCI 2.0 (optional)
Dimensions (H x W x D)
500 x 600 x 210 mm
Weight
27.6 kg
Ingress protection (IP)
IP66
Operating temperature
-25 ... 60 °C
Max. relative humidity
100 %
Standards and compliance
G98, G99, VDE-AR-N 4105, VDE V 0124, EN 50549-1, VDE 0126, UTE C 15:2019, RD 1699, RD 244, UNE 206006, UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, TOR, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA, EK18; IEC/EN 62109-1/-2

We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.

Compatibility

Compatibility is calculated automatically from the manufacturers’ technical data and is for information only. For complex systems, we recommend having the configuration checked by a consultant before ordering. Details in the Terms and conditions
