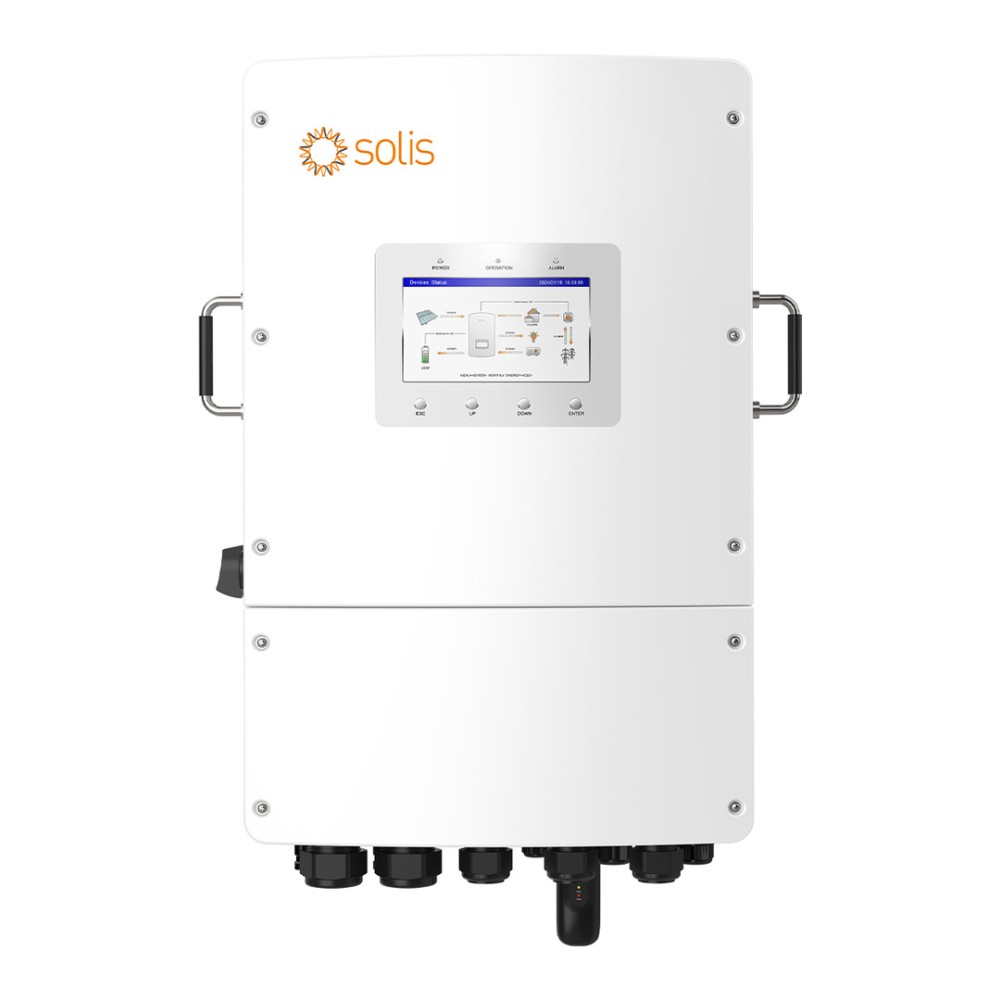

10 kW Solis hybrid inverter, three-phase, 48 V, S6-EH3P10K02-NV-YD-L

Name: 10 kW Solis hybrid inverter, three-phase, 48 V, S6-EH3P10K02-NV-YD-L
Brand: Solis
SKU: S6-EH3P10K02-NV-YD-L
Price: 2306.00 EUR
Availability: InStock

€2,306 Tax included

€1,922 Tax excluded

S6-EH3P10K02-NV-YD-L is a 10 kW three-phase hybrid inverter for low-voltage batteries (40-60 V), with 2 MPPT (200-850 V), two battery ports, a maximum charge and discharge current of 220 A and a maximum efficiency of 97.5%. It has IP66 protection, a 7-inch LCD and Wi-Fi, LAN and Bluetooth communication, and parallel operation allows up to 6 units.

Reference S6-EH3P10K02-NV-YD-L

Your legal guarantee rights

S6-EH3P10K02-NV-YD-L - Three-phase hybrid inverter 10 kW for low-voltage batteries

S6-EH3P10K02-NV-YD-L is a 10 kW three-phase hybrid inverter from the Solarator series, for low-voltage batteries (40-60 V range), with 2 MPPT inputs, two battery ports and a 7-inch LCD. It combines solar conversion, battery charging and load supply in one unit and can run in parallel, up to 6 units, in grid-connected or off-grid systems.

Main features:

AC rated power: 10000 W
Battery: 40-60 V, max. current 220 A
PV input: 2 MPPT, 200-850 V, maximum 16000 W
Maximum efficiency: 97.5%
Communication: Wi-Fi, LAN, Bluetooth, CAN, RS485
Protection and cooling: IP66, intelligent fans
Parallel operation: Up to 6 units

The inverter works with lithium-ion or lead-acid batteries in the 40-60 V range, has two battery ports (150 A each) and one battery communication port over CAN or RS485, and is compatible with the low-voltage batteries of the brands in the manufacturer compatibility list, for example Dyness, Pylontech or Shoto. The recommended PV array size is up to 20 kW, of which a maximum of 16000 W can be used; the maximum input current on the two MPPT inputs is 20 A / 40 A, and 20 A per DC input.

The three-phase output accepts unbalanced loads, with up to 50% of the rated power on each phase (5000 W), and in off-grid mode the inverter withstands a 200% overload for 10 s, useful for starting motors, pumps and air conditioners. The switchover from grid to backup supply takes less than 10 ms. Both DC and AC coupling are supported, to expand an existing PV installation, and the Smart Load function prioritises essential loads. The three-phase generator connects to the AC Gen / Smart port, with a maximum input power of 10 kW.

Up to 6 units of the same model can be connected in parallel, and remote monitoring and control are done through the SolisCloud platform. The package contains 3 current transformers (CT) and a Wi-Fi stick for data transmission; the meter is optional. The inverter has IP66 protection, operates from -25 °C to +60 °C and can be installed up to an altitude of 4000 m.

Technical specifications

Inverter type	Three-phase hybrid inverter, for low-voltage (LV) batteries
Battery type	Li-ion / lead-acid
Battery voltage range	40-60 V
Max. charge/discharge current	220 A
Number of battery ports / BMS ports	2 / 1
Max. charge/discharge current per port	150 A
Battery communication	CAN / RS485
Recommended max. PV array size	20 kW
Max. usable PV input power	16000 W
Max. input voltage	1000 V
Rated voltage	550 V
Start-up voltage	160 V
MPPT voltage range	200-850 V
Max. input current	20 A / 40 A
Max. current per DC input	20 A
Max. short-circuit current	30 A / 50 A
MPPT number / max. number of strings	2/3
Rated output power	10000 W
Max. apparent output power	10000 VA
Rated grid voltage	3/N/PE, 220/380 V, 230/400 V
Rated grid frequency	50 Hz / 60 Hz
Rated grid output current	15.2 A / 14.4 A
Power factor	> 0.99 (0.8 leading - 0.8 lagging)
THDi	< 3%
Max. input power (grid side)	15 kW
Input voltage range (grid side)	323-437 V / 340-460 V
Max. input current (grid side)	22.8 A / 21.7 A
Rated output power (back-up)	10000 W
Max. apparent output power (back-up)	2 x rated power, 10 s
Back-up switch time	< 10 ms
Rated output current (back-up)	15.2 A / 14.4 A
Max. AC passthrough current	50 A
THDv (linear load)	< 3%
Generator max. input power	10 kW
Generator rated input current	15.2 A / 14.4 A
Max. power per phase	50% of rated power
Max. efficiency	97.5%
EU efficiency	97.0%
BAT charged by PV / AC max. efficiency	95.0% / 94.4%
Battery discharged efficiency	94.5%
Integrated protections	DC type II and AC type II surge protection (optional), output overcurrent protection, insulation resistance monitoring, residual current detection, integrated PV switch, DC reverse-polarity protection, integrated AFCI 2.0 (optional), anti-islanding protection
Protection class / Over voltage category	I / II (PV and BAT), III (MAINS and BACKUP and GEN)
Dimensions (W x H x D)	430 x 660 x 305 mm
Weight	42 kg
Inverter topology	Non-isolated (PV), isolated (battery)
Self-consumption	< 30 W
Operating temperature range	-25 ... +60 °C
Relative humidity	0-100%
Ingress protection	IP66
Noise emission (typical)	< 65 dB(A)
Cooling concept	Intelligent fan-cooling
Max. operation altitude	4000 m
Grid connection and safety / EMC standards	EN 50549-1/-10, VDE 4105 & VDE 0124, NRS 097-2-1, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, SriLanka, EN 50438L, Vietnam, MEA, PEA, CEI 0-21; IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4
PV connection	MC4 quick connection plug
Battery connection	Screw terminal
AC connection	Screw terminal
Display	7.0" LCD display & Bluetooth + APP
Communication interface	Standard: WIFI+LAN+Bluetooth, CAN-BMS, CAN-Parallel x2, RS485-Meter, RS485, DRM, DI, DO x4; Optional: 2G/3G/4G

Data sheet

Reference: S6-EH3P10K02-NV-YD-L
Product type: Inverter
Inverter type: Hybrid (built-in MPPT)
Phases: Three-phase
Power class: 6-10 kW
Continuous output power (VA, 25 °C): 10000 VA
Continuous output power (W, 25 °C): 10000 W
Peak power: 2 x rated power, 10 s
Maximum efficiency: 97.5 %
Battery voltage: 48 V
DC input voltage range: 40-60 V
Max. charge current: 220 A
Max. PV input voltage: 1000 V
Max. PV short-circuit current: 30 A / 50 A
Number of MPPT trackers: 2
MPPT voltage range: 200-850 V
AC output voltage: 220/380 V, 230/400 V
Output frequency: 50/60 Hz
AC input voltage range: 323-437 V / 340-460 V
Max. AC input current: 22.8 A
Parallel operation: Yes
Communication interfaces: Bluetooth
CAN-bus
Ethernet
RS485
Wi-Fi
Protections: DC type II and AC type II surge protection (optional), output overcurrent protection, insulation resistance monitoring, residual current detection, integrated PV switch, DC reverse-polarity protection, integrated AFCI 2.0 (optional)
Dimensions (H x W x D): 660 x 430 x 305 mm
Weight: 42 kg
Ingress protection (IP): IP66
Operating temperature: -25 ... 60 °C
Max. relative humidity: 100 %
Standards and compliance: EN 50549-1/-10, VDE 4105 & VDE 0124, NRS 097-2-1, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, SriLanka, EN 50438L, Vietnam, MEA, PEA, CEI 0-21; IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4

We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
