€4,000 Tax excluded

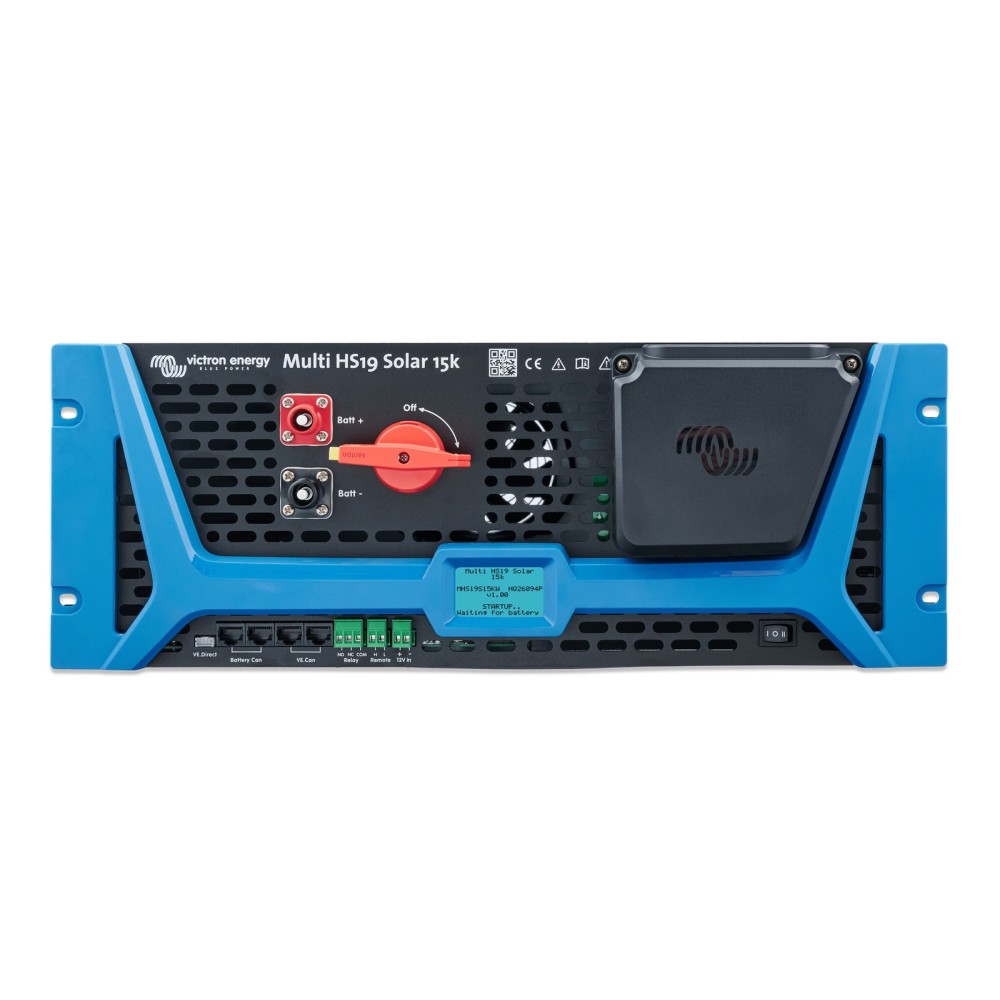

Multi HS19 Solar 15k is an inverter/charger for high-voltage batteries of 650-1000 V, with an integrated MPPT solar charger and a 400 V AC output. It has a continuous power of 15,000 VA, a maximum efficiency of 98% and communication via VE.Can, BMS-Can, VE.Direct and Bluetooth, and is intended for high-power storage systems. It is suitable for off-grid applications, peak-shaving, backup or grid feed-in.
Victron Energy commercial warranty: 5 years for defects in materials and workmanship, handled through us as the seller. In addition to the legal guarantee. Conditions
Multi HS19 Solar 15k is an inverter/charger for high-voltage batteries of 650-1000 V, with an integrated MPPT solar charger and a 400 V AC output. It has a continuous power of 15,000 VA, a maximum efficiency of 98% and communication via VE.Can, BMS-Can, VE.Direct and Bluetooth, and is intended for high-power storage systems. It is suitable for off-grid applications, peak-shaving, backup or grid feed-in.
Multi HS19 Solar 15k is an inverter/charger with an integrated MPPT solar charge controller, in 19″ format (width 482.6 mm), intended for high-voltage batteries with a nominal voltage of 800 V. It delivers a continuous power of 15,000 VA at a 400 V AC output (50 Hz) and supports the PowerControl and PowerAssist functions.
| PowerControl | Yes |
|---|---|
| PowerAssist | Yes |
| Parallel operation | No |
| Includes MPPT | Yes |
| Number of AC inputs | 1 |
| Transfer switch rated current | 32 A |
| Nominal battery voltage | 800 V |
| DC input voltage range | 650 … 1000 V |
| AC output voltage | 400 V |
| Maximum continuous inverter current | 22 A |
| Frequency | 50 |
| Continuous output power at 25 °C (VA) | 15000 VA |
| Continuous output power at 40 °C | 15000 W |
| Peak power (5 s, with the unit cold; depends on the initial heat sink temperature) | 22000 W |
| Short-circuit current | 32 A |
| Maximum efficiency | 98 % |
| No-load consumption | 50 W |
| Maximum DC voltage | 600 V |
| Start-up voltage | 300 V |
| MPPT operating voltage range | 100 … 600 V |
| Maximum PV operating current | 13.5 A |
| Maximum PV short-circuit current (reverse polarity) | 13.5 A |
| Maximum solar charging power | 32000 W |
| Maximum PV short-circuit current | 20 A per string |
| Charge voltage range | 650 … 1000 V |
| Maximum battery charge current | 41 A |
| Battery voltage measurement (voltage sense) | Yes |
| Protections | Overcurrent, Earth leakage on the solar side |
| Communication port | VE.Can, BMS-Can, VE.Direct, Bluetooth |
| Bluetooth | Yes, -4 dBm, 2402 - 2480 MHz |
| Remote on/off | Yes |
| Fully programmable ports | No |
| Operating temperature range | 0-60 °C |
| Fan-assisted cooling | Yes |
| Maximum altitude | 2000 m |
| Maximum humidity | 95 % |
| Maximum AC input current | 32 A |
| AC input frequency range | 45 … 65 Hz |
| Pollution degree | 2 |
| Auxiliary output | Yes |
| Number of AC outputs | 2 |
| AC connection terminals | Solid cable 0.2 mm² - 10 mm² / Flexible cable 0.25 mm² - 6 mm² |
| Battery connection | Amphenol SurLok 5.7 mm |
| Colour | Blue (RAL 5012) and black (RAL 9017) |
| Material | Steel |
| Ingress protection | IP20 |
| Weight | 26.5 kg |
| Height | 177.8 mm |
| Width | 482.6 mm |
| Depth | 700 mm |
| Safety | EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1 |
| Emission and immunity | EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3 |
We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
