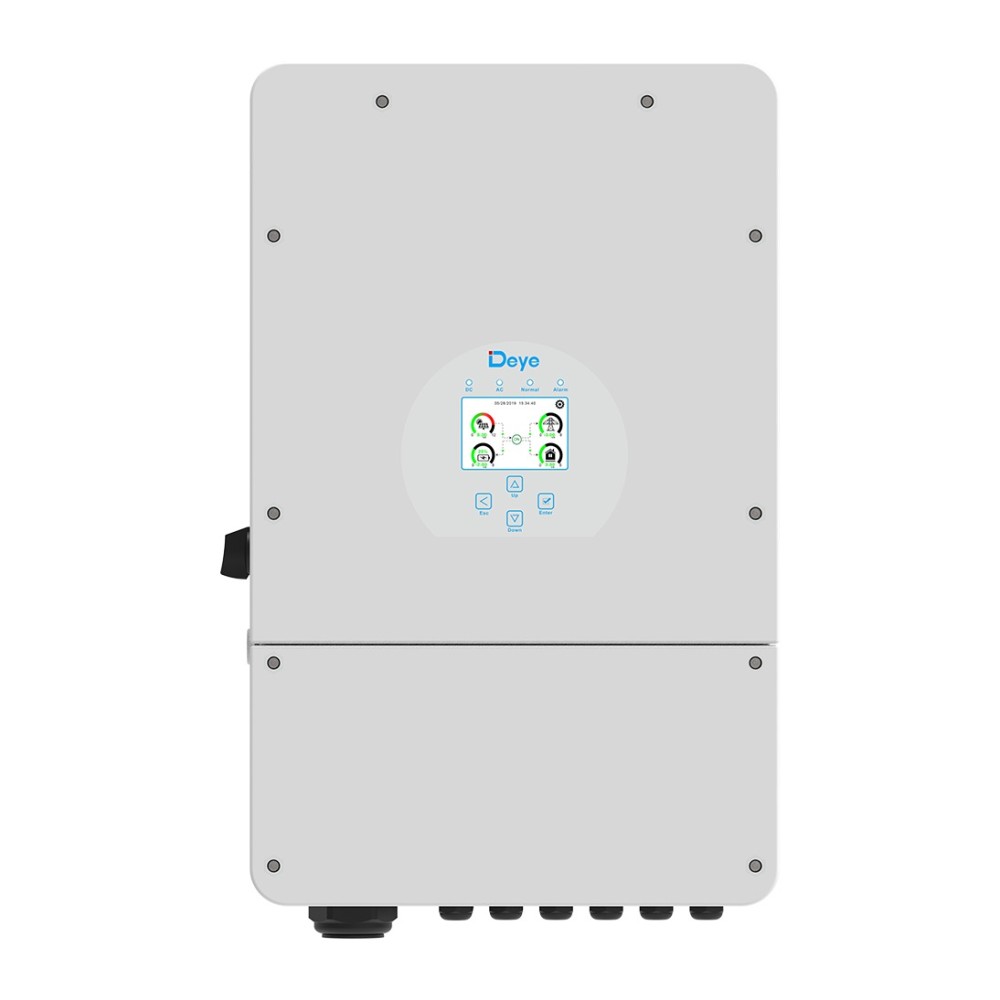

10 kW Deye hybrid inverter, single-phase, 48 V, SUN-10K-SG02LP1-EU-AM3-P

Name: 10 kW Deye hybrid inverter, single-phase, 48 V, SUN-10K-SG02LP1-EU-AM3-P
Brand: Deye
SKU: SUN-10K-SG02LP1-EU-AM3-P
Price: 1867.00 EUR
Availability: InStock

€1,867 Tax included

€1,556 Tax excluded

SUN-10K-SG02LP1-EU-AM3-P is a 10 kW single-phase hybrid inverter for low-voltage batteries (40-60 V), with 3 MPPT (150-425 V), a maximum charge current of 220 A and a maximum efficiency of 97.6%. It has a colour LCD, IP65 protection and Wi-Fi, RS485 and CAN communication; parallel operation allows up to 16 units.

Reference SUN-10K-SG02LP1-EU-AM3-P

Your legal guarantee rights

SUN-10K-SG02LP1-EU-AM3-P - Single-phase hybrid inverter 10 kW for low-voltage batteries

SUN-10K-SG02LP1-EU-AM3-P is a 10 kW single-phase hybrid inverter for low-voltage batteries (40-60 V range), with 3 MPPT and a colour touch LCD. It combines solar conversion, battery charging and load supply in one unit and can run in parallel, up to 16 units, in on-grid and off-grid systems.

Main features:

AC rated power: 10000 W
Battery: 40-60 V, max. charge current 220 A
PV input: 3 MPPT, 150-425 V, maximum 16000 W
Maximum efficiency: 97.6%
Communication: Wi-Fi, RS485, CAN
Protection and cooling: IP65, intelligent air cooling
Parallel operation: Up to 16 units

The inverter works with lead-acid or lithium-ion batteries and adapts automatically to the BMS of a lithium battery. It offers 6 programmable time periods for charging and discharging the battery and can store energy from a diesel generator.

It can be AC-coupled to an existing solar installation to retrofit it; in off-grid mode the peak power is twice the rated power, for 10 s. Up to 16 units can be connected in parallel, together with several batteries in parallel.

The integrated protections include DC reverse polarity, AC output overcurrent, short circuit and overvoltage, thermal protection, DC component monitoring, anti-islanding, insulation impedance and residual current detection; AFCI is optional.

Technical specifications

Inverter type	Single-phase hybrid inverter
Battery type	Lead-acid or lithium-ion
Battery voltage range	40-60 V
Max. charging/discharging current	220 A
Charging strategy for lithium-ion batteries	Self-adaptation to the BMS
Number of battery inputs	1
Max. PV access power	20000 W
Max. PV input power	16000 W
Max. PV input voltage	500 V
Start-up voltage	125 V
MPPT voltage range	150-425 V
Rated PV input voltage	370 V
Max. operating PV input current	32+32+32 A
Max. input short-circuit current	60+60+60 A
Number of MPP trackers (strings per tracker)	3 (2+2+2)
Rated AC active power	10000 W
Max. AC apparent power	11000 VA
Rated AC current (input/output)	45.5/43.5 A
Max. AC current (input/output)	50/47.9 A
Max. continuous AC passthrough (grid to load)	60 A
Peak power (off-grid)	2 x rated power, 10 s
Power factor range	0.8 leading to 0.8 lagging
Rated AC voltage	220/230 V, 0.85 Un-1.1 Un, L+N+PE
Rated frequency and range	50/45-55 Hz, 60/55-65 Hz
Total current harmonic distortion THDi	<3% of nominal power
DC injection current	<0.5% of In
Max. efficiency	97.6%
Euro efficiency	96.5%
MPPT efficiency	>99%
Integrated protections	DC reverse polarity, AC output overcurrent, short circuit and overvoltage, thermal protection, DC component monitoring, anti-islanding, insulation impedance and residual current detection, optional AFCI
Surge protection level	Type II (DC), Type II (AC)
Display	LCD
Communication interfaces	Wi-Fi, RS485, CAN
Operating temperature range	-40 ... 60 °C, derating above 45 °C
Permissible ambient humidity	0-100%
Permissible altitude	2000 m
Noise	<45 dB
Ingress protection (IP) rating	IP65
Inverter topology	Non-isolated (solar), isolated (battery)
Overvoltage category	OVC II (DC), OVC III (AC)
Parallel operation	Yes, up to 16 units
Dimensions (height x width x depth)	670 x 420 x 233 mm
Weight	35.6 kg
Type of cooling	Intelligent air cooling
Grid regulation	IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G98, G99, VDE-AR-N 4105
Safety and EMC standards	IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

Data sheet

Reference: SUN-10K-SG02LP1-EU-AM3-P
MPN: SUN-10K-SG02LP1-EU-AM3-P
Product type: Inverter
Inverter type: Hybrid (built-in MPPT)
Phases: Single-phase
Power class: 6-10 kW
Continuous output power (W, 25 °C): 10000 W
Peak power: 2 x rated power, 10 s
Maximum efficiency: 97,6 %
Battery voltage: 48 V
DC input voltage range: 40-60 V
Max. charge current: 220 A
Max. PV input voltage: 500 V
Number of MPPT trackers: 3
MPPT voltage range: 150-425 V
AC output voltage: 220/230 V
Output frequency: 50/60 Hz
Max. AC input current: 50 A
Parallel operation: Yes
Communication interfaces: CAN-bus
RS485
Wi-Fi
Protections: DC reverse polarity, AC output overcurrent, short circuit and overvoltage, thermal protection, DC component monitoring, anti-islanding, insulation impedance and residual current detection, optional AFCI
Dimensions (H x W x D): 670 x 420 x 233 mm
Weight: 35,6 kg
Ingress protection (IP): IP65
Operating temperature: -40 ... 60 °C
Max. relative humidity: 100 %
Standards and compliance: IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G98, G99, VDE-AR-N 4105; IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.

Datasheet (EN)
Download (286.06KB)
