  • New
8 kW Deye hybrid inverter, single-phase, 48 V, SUN-8K-SG05LP1-EU-AM2-P
  • 8 kW Deye hybrid inverter, single-phase, 48 V, SUN-8K-SG05LP1-EU-AM2-P
  • 8 kW Deye hybrid inverter, single-phase, 48 V, SUN-8K-SG05LP1-EU-AM2-P

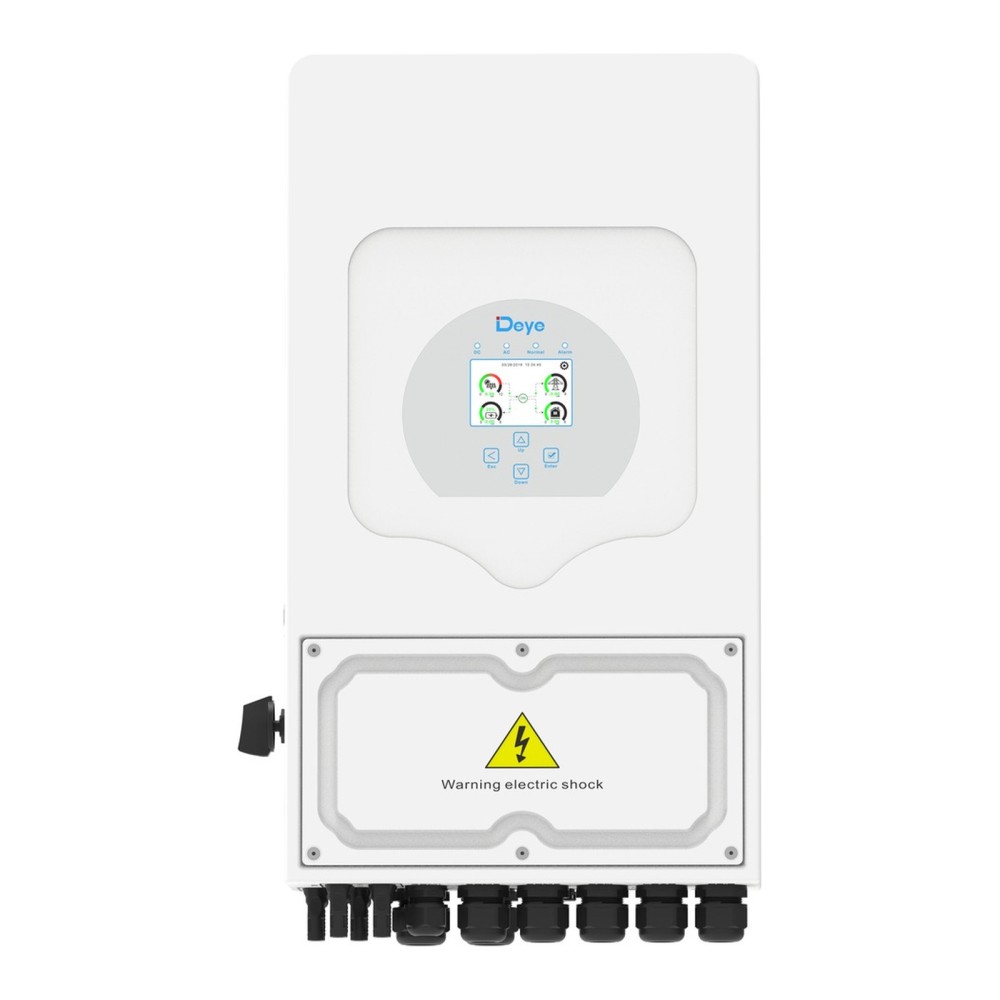

8 kW Deye hybrid inverter, single-phase, 48 V, SUN-8K-SG05LP1-EU-AM2-P

€1,327 Tax included

€1,106 Tax excluded

SUN-8K-SG05LP1-EU-AM2-P is a 8 kW single-phase hybrid inverter for low-voltage batteries (40-60 V), with 2 MPPT (150-425 V), a maximum charge current of 190 A and a maximum efficiency of 97.6%. It has a colour LCD, IP65 protection and Wi-Fi, RS485 and CAN communication; parallel operation allows up to 16 units.

Reference SUN-8K-SG05LP1-EU-AM2-P

Your legal guarantee rights

Legal guarantee

EU harmonised notice on the legal guarantee of conformity

More information: europa.eu/youreurope/guarantees
Open the notice at full size

SUN-8K-SG05LP1-EU-AM2-P - Single-phase hybrid inverter 8 kW for low-voltage batteries

SUN-8K-SG05LP1-EU-AM2-P is a 8 kW single-phase hybrid inverter for low-voltage batteries (40-60 V range), with 2 MPPT and a colour touch LCD. It combines solar conversion, battery charging and load supply in one unit and can run in parallel, up to 16 units, in on-grid and off-grid systems.

Main features:

  • AC rated power: 8000 W
  • Battery: 40-60 V, max. charge current 190 A
  • PV input: 2 MPPT, 150-425 V, maximum 12800 W
  • Maximum efficiency: 97.6%
  • Communication: Wi-Fi, RS485, CAN
  • Protection and cooling: IP65, intelligent air cooling
  • Parallel operation: Up to 16 units

The inverter works with lead-acid or lithium-ion batteries and adapts automatically to the BMS of a lithium battery. It offers 6 programmable time periods for charging and discharging the battery and can store energy from a diesel generator.

It can be AC-coupled to an existing solar installation to retrofit it; in off-grid mode the peak power is twice the rated power, for 10 s. Up to 16 units can be connected in parallel, together with several batteries in parallel.

The integrated protections include DC reverse polarity, AC output overcurrent, short circuit and overvoltage, thermal protection, DC component monitoring, anti-islanding, insulation impedance and residual current detection; AFCI is optional.

Technical specifications

Inverter typeSingle-phase hybrid inverter
Battery typeLead-acid or lithium-ion
Battery voltage range40-60 V
Max. charging/discharging current190 A
Charging strategy for lithium-ion batteriesSelf-adaptation to the BMS
Number of battery inputs1
Max. PV access power16000 W
Max. PV input power12800 W
Max. PV input voltage500 V
Start-up voltage125 V
MPPT voltage range150-425 V
Rated PV input voltage370 V
Max. operating PV input current32+32 A
Max. input short-circuit current48+48 A
Number of MPP trackers (strings per tracker)2 (2+2)
Rated AC active power8000 W
Max. AC apparent power8800 VA
Rated AC current (input/output)36.4/34.8 A
Max. AC current (input/output)40/38.3 A
Max. continuous AC passthrough (grid to load)50 A
Peak power (off-grid)2 x rated power, 10 s
Power factor range0.8 leading to 0.8 lagging
Rated AC voltage220/230 V, 0.85 Un-1.1 Un, L+N+PE
Rated frequency and range50/45-55 Hz, 60/55-65 Hz
Total current harmonic distortion THDi<3% of nominal power
DC injection current<0.5% of In
Max. efficiency97.6%
Euro efficiency96.5%
MPPT efficiency>99%
Integrated protectionsDC reverse polarity, AC output overcurrent, short circuit and overvoltage, thermal protection, DC component monitoring, anti-islanding, insulation impedance and residual current detection, optional AFCI
Surge protection levelType II (DC), Type II (AC)
DisplayLCD
Communication interfacesWi-Fi, RS485, CAN
Operating temperature range-40 ... 60 °C, derating above 45 °C
Permissible ambient humidity0-100%
Permissible altitude2000 m
Noise<45 dB
Ingress protection (IP) ratingIP65
Inverter topologyNon-isolated (solar), isolated (battery)
Overvoltage categoryOVC II (DC), OVC III (AC)
Parallel operationYes, up to 16 units
Dimensions (height x width x depth)580 x 330 x 232 mm
Weight24.9 kg
Type of coolingIntelligent air cooling
Grid regulationIEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105
Safety and EMC standardsIEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

Data sheet

Reference
SUN-8K-SG05LP1-EU-AM2-P
MPN
SUN-8K-SG05LP1-EU-AM2-P
Product type
Inverter
Inverter type
Hybrid (built-in MPPT)
Phases
Single-phase
Power class
6-10 kW
Continuous output power (W, 25 °C)
8000 W
Peak power
2 x rated power, 10 s
Maximum efficiency
97,6 %
Battery voltage
48 V
DC input voltage range
40-60 V
Max. charge current
190 A
Max. PV input voltage
500 V
Number of MPPT trackers
2
MPPT voltage range
150-425 V
AC output voltage
220/230 V
Output frequency
50/60 Hz
Max. AC input current
40 A
Parallel operation
Yes
Communication interfaces
CAN-bus
RS485
Wi-Fi
Protections
DC reverse polarity, AC output overcurrent, short circuit and overvoltage, thermal protection, DC component monitoring, anti-islanding, insulation impedance and residual current detection, optional AFCI
Dimensions (H x W x D)
580 x 330 x 232 mm
Weight
24,9 kg
Ingress protection (IP)
IP65
Operating temperature
-40 ... 60 °C
Max. relative humidity
100 %
Standards and compliance
IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105; IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
