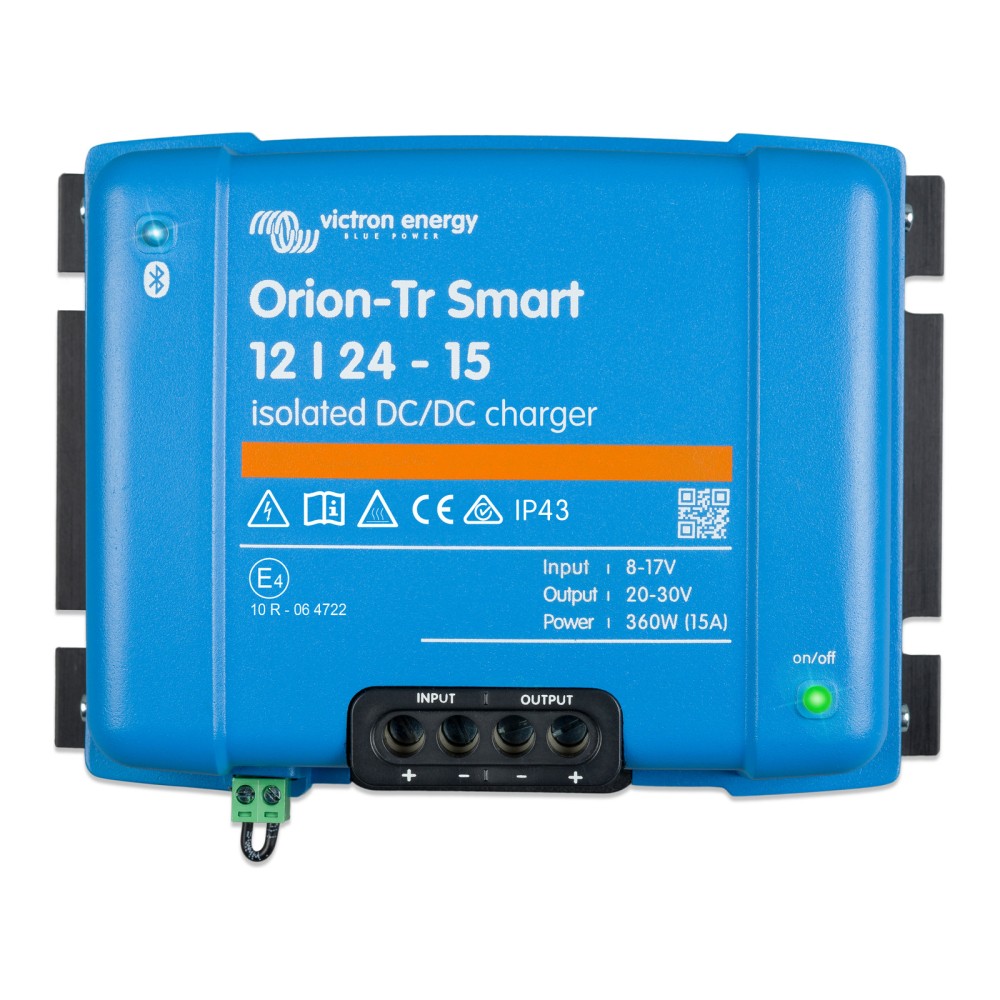

Victron Orion-Tr Smart 12/24-15A Isolated DC-DC
  • Victron Orion-Tr Smart 12/24-15A Isolated DC-DC
  • Isolated DC-DC charger Victron Energy Orion-Tr Smart 12/24-15A (360 W)
  • Isolated DC-DC charger Victron Energy Orion-Tr Smart 12/24-15A (360 W)
  • Victron Orion-Tr Smart 12/24-15A Isolated DC-DC

Isolated DC-DC charger Victron Energy Orion-Tr Smart 12/24-15A (360 W)

€282 Save €57
€225 Tax included

€188 Tax excluded

Orion-Tr Smart 12/24-15A isolated is an isolated, adaptive 3-stage DC-DC charger with built-in Bluetooth and the VictronConnect app. It has an 8-17 V input, a 24.2 V output, a continuous current of 15 A at 40 °C (maximum 25 A), a maximum efficiency of 88 %, a programmable output and parallel connection.

Reference ORI122436120

Victron Energy commercial warranty: 5 years for defects in materials and workmanship, handled through us as the seller. In addition to the legal guarantee. Conditions

Your legal guarantee rights

Legal guarantee

EU harmonised notice on the legal guarantee of conformity

More information: europa.eu/youreurope/guarantees
Open the notice at full size

Orion-Tr Smart 12/24-15A isolated - Isolated DC-DC charger with Bluetooth

Orion-Tr Smart 12/24-15A isolated is a professional isolated, adaptive 3-stage DC-DC charger with built-in Bluetooth. It has an input voltage of 8-17 V, an output voltage of 24.2 V and a continuous output current of 15 A at 40 °C, and is intended for dual-battery systems.

Key features:

  • Input voltage: 8-17 V
  • Output voltage: 24.2 V, range 20-30 V
  • Continuous output current: 15 A at 40 °C
  • Maximum output current: 25 A
  • Continuous power: 360 W at 40 °C
  • Communication: Bluetooth, VictronConnect
  • Ingress protection: IP22 connections, IP43 electronics

The converter can be monitored and programmed via Bluetooth and controlled remotely with a remote on/off switch. Any phone, tablet or other Bluetooth-compatible device can be used for monitoring, changing settings and updating the charger when new features become available. The battery charging algorithm is configurable, or a fixed output can be selected.

The adaptive 3-stage charging algorithm (bulk, absorption, float) shortens the absorption time after shallow discharges of lead-acid batteries to prevent overcharging, and extends it automatically after a deep discharge. For lithium batteries the absorption time is fixed, 2 hours by default. The engine-running detection mechanism ensures compatibility with the smart alternator.

The charger is used in dual-battery systems in vehicles or on boats, where the alternator and the starter battery charge the service battery, and it is suitable for lead-acid and lithium batteries. An unlimited number of units can be connected in parallel; full rated power is available up to 40 °C, and the maximum operating temperature is 55 °C. A remote on/off switch or a relay contact connects to a two-pole connector.

Technical specifications

Input voltage range8 … 17 V
Undervoltage shutdown7 V
Restart after undervoltage7.5 V
Output voltage24.2 V
Output voltage range20 … 30 V
Output voltage tolerance200 mVrms
Output voltage ripple2 mVrms
Maximum output current25 A
Continuous output current at 40 °C15 A
Output derating above 40 °C3 %
Maximum short-circuit current40 A
Continuous output power at 25 °C430 W
Continuous output power at 40 °C360 W
No-load current consumption100 mA
Standby current consumption1 mA
Maximum efficiency88 %
Use as power supplyYes
Can be connected in parallelYes
Galvanic isolationYes
ProgrammableYes
Remote on/off terminalYes
BluetoothYes
VictronConnect appYes
Data communicationBluetooth
ProtectionsOver-temperature, Short-circuit protected
Insulation200 VDC
Operating temperature range-20 … 55 °C
Maximum humidity95 %
DC connection terminalsScrew terminals 16 mm² (6 AWG)
Remote on/off terminal connectionTwo-pole screw terminal
ColourBlue (RAL 5012)
Ingress protectionIP22 (connection area), IP43 (electronics)
Weight1.8 kg
Height130 mm
Width186 mm
Depth80 mm
SafetyEN 60950
EmissionEN 55014-1, EN-IEC 61000-6-3
ImmunityEN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Automotive directiveECE R10-5

Data sheet

Reference
ORI122436120
Brand
Victron Energy
Product type
DC-DC charger (alternator)
Maximum efficiency
88 %
DC input voltage range
8-17 V
Input voltage
12 V
Output voltage
24 V
DC output voltage range
20-30 V
Rated output current
15 A
Charge current class
11-20 A
Galvanic isolation
Yes (isolated)
Bluetooth (app)
Yes
Communication interfaces
Bluetooth
Protections
Output short-circuit, overtemperature
Dimensions (H x W x D)
130 x 186 x 80 mm
Weight
1.8 kg
IP rating class
IP43
Ingress protection (IP)
IP22 (connection area), IP43 (electronics)
Operating temperature
-20 ... 55 °C
Max. relative humidity
95 %
Colour
Blue
Standards and compliance
EN 60950, ECE R10-5, EN 55014-1, EN-IEC 61000-6-3

We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
