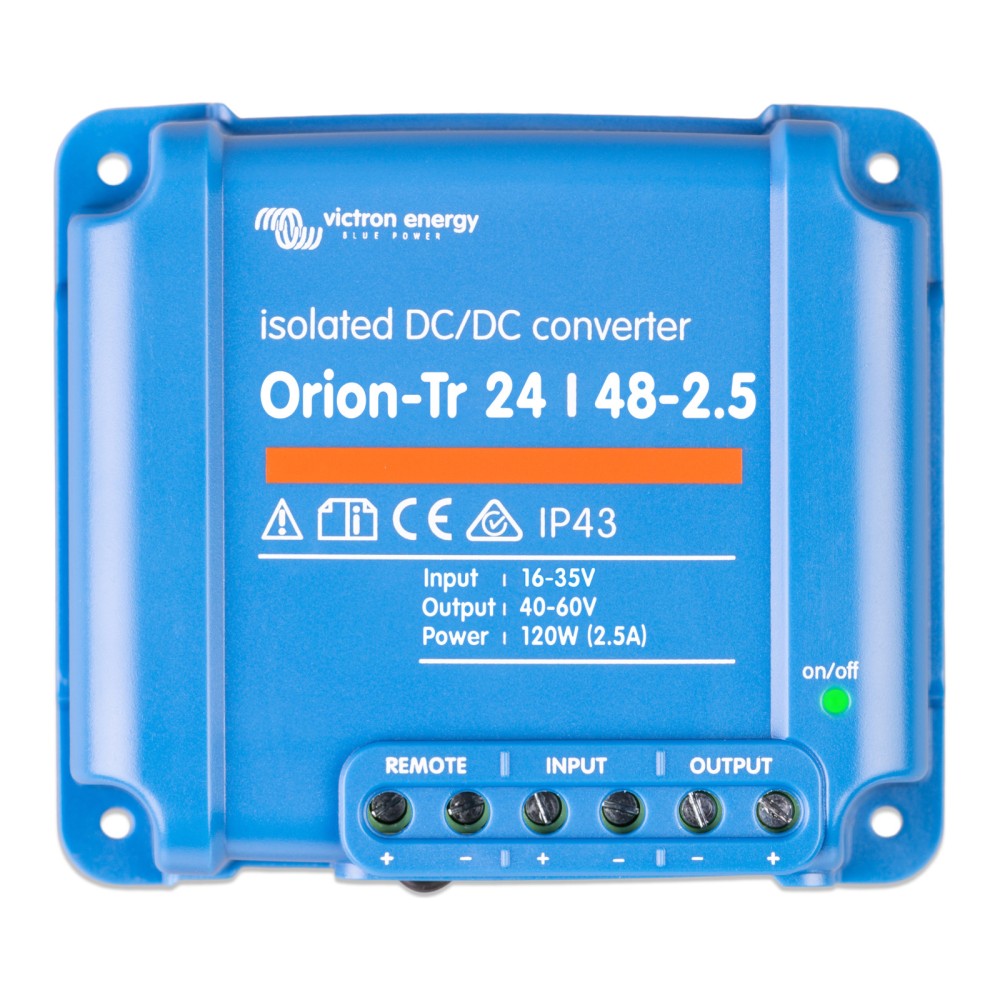

Orion-Tr 24/48-2,5A (120W) is a galvanically isolated DC-DC converter from 24 V to 48 V, with a continuous output current of 2.5 A and a continuous power of 120 W at 25 °C. The input voltage range is 16-35 V, the maximum efficiency 88 % and the protection rating IP43.
Victron Energy commercial warranty: 5 years for defects in materials and workmanship, handled through us as the seller. In addition to the legal guarantee. Conditions
Orion-Tr 24/48-2,5A (120W) is a galvanically isolated DC-DC converter that converts the 24 V input voltage to 48 V and delivers a continuous output current of 2.5 A. It has a terminal for remote on/off control, is short-circuit protected and can be connected in parallel to increase the output current.
Remote on/off control eliminates the need for a high-current switch in the input wiring and can be operated with a low-power switch or, for example, with the engine's on/off switch (see the manual).
All models are short-circuit proof and can be connected in parallel to increase the output current; the number of units connected in parallel is unlimited. The output current is reduced at high ambient temperatures. The IP43 protection rating applies when the converter is installed with the screw terminals facing down. The screw terminals do not require special tools for installation. The output voltage is adjustable, but the product is not intended for charging batteries; an Orion-Tr Smart is recommended for charging.
| Input voltage range | 16 … 35 V |
|---|---|
| Undervoltage shutdown | 14 V |
| Restart after undervoltage | 15 V |
| Output voltage | 48.2 V |
| Output voltage range | 40 … 60 V |
| Output voltage tolerance | 200 mVrms |
| Output voltage noise | 2 mVrms |
| Maximum output current | 3 A |
| Continuous output current at 25 °C | 2.5 A |
| Maximum short-circuit current | 19 A |
| Continuous output power at 25 °C | 120 W |
| Continuous output power at 40 °C | 115 W |
| No-load current draw | 120 mA |
| Standby current draw | 0.2 mA |
| Maximum efficiency | 88 |
| Can be connected in parallel | Yes |
| Galvanic isolation | Yes |
| Remote on/off terminal | Yes |
| Protections | Overtemperature, short-circuit protected |
| Isolation voltage | 200 VDC |
| Operating temperature range | -20 … 55 °C |
| Maximum humidity | 95 % |
| DC connection terminals | Screw terminals 6 mm² (10 AWG) |
| Remote on/off terminal connection | Two-pole screw terminal |
| Color | Blue (RAL 5012) |
| Protection rating | IP43 |
| Weight | 0.42 kg |
| Height | 100 mm |
| Width | 113 mm |
| Depth | 47 mm |
| Safety | EN 60950 |
| Emissions | EN 55014-1, EN-IEC 61000-6-3 |
| Immunity | EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2 |
| Automotive directive | ECE R10-5 |
We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
