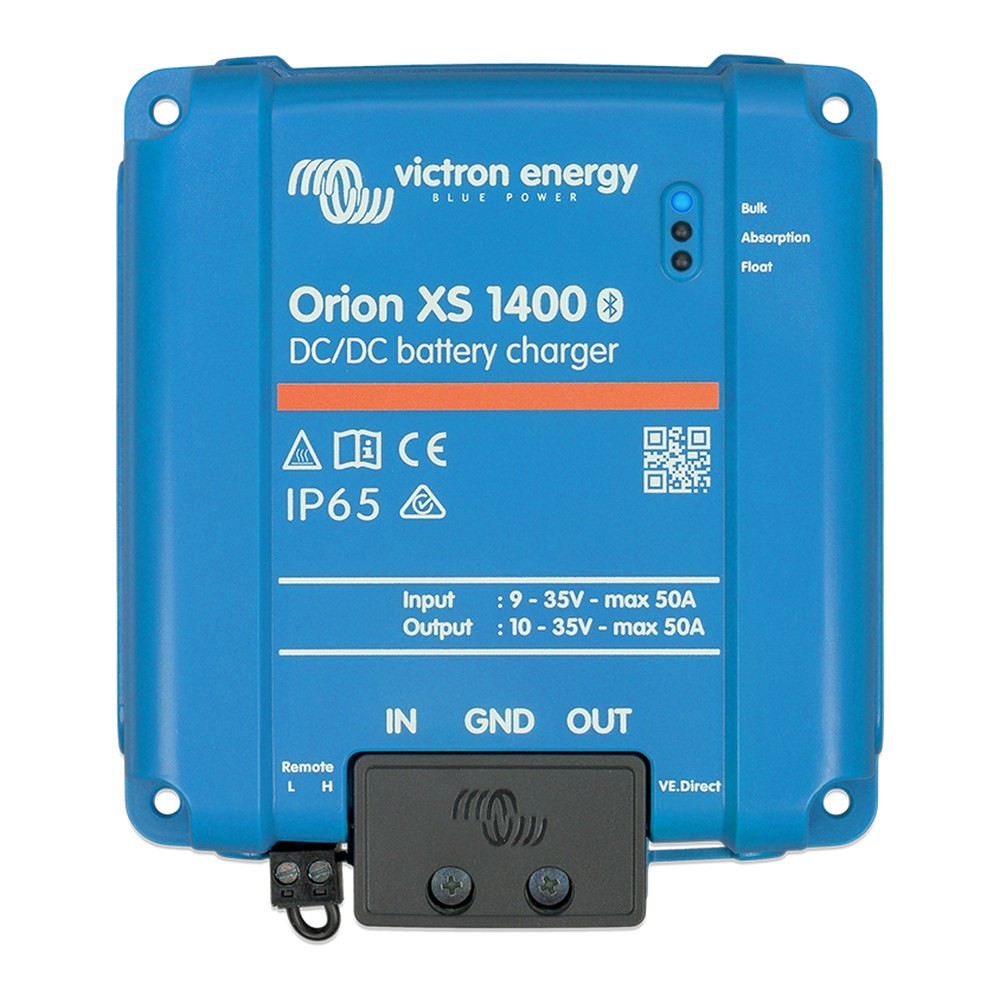

Orion XS 1400 DC-DC battery charger Victron Energy
  • Orion XS 1400 DC-DC battery charger Victron Energy
  • Orion XS 1400 DC-DC battery charger Victron Energy
  • Orion XS 1400 DC-DC battery charger Victron Energy
  • Orion XS 1400 DC-DC battery charger Victron Energy
  • Orion XS 1400 DC-DC battery charger Victron Energy

Non-isolated DC-DC charger Victron Energy Orion XS 1400

€456 Save €92
€364 Tax included

€303 Tax excluded

Orion XS 1400 is a 1,400 W DC-DC battery charger for dual battery systems fed by an alternator, including intelligent alternators. It accepts 9-35 V input and delivers 10-35 V output, with current configurable up to 50 A and up to 98.5 % efficiency without a fan, and is set up via Bluetooth.

Reference ORI242417040

Victron Energy commercial warranty: 5 years for defects in materials and workmanship, handled through us as the seller. In addition to the legal guarantee. Conditions

Your legal guarantee rights

Legal guarantee

EU harmonised notice on the legal guarantee of conformity

More information: europa.eu/youreurope/guarantees
Open the notice at full size

Orion XS 1400 - DC-DC battery charger 1400 W, 50 A

Orion XS 1400 is a 1,400 W DC-DC battery charger for dual battery systems fed by an alternator, including intelligent alternators. It accepts 9-35 V input and delivers 10-35 V output, with current configurable up to 50 A and up to 98.5 % efficiency without a fan, and is set up via Bluetooth.

Main features:

  • Input/output voltage: 9-35 V / 10-35 V
  • Charge current: 1-50 A, adjustable in 0.1 A steps
  • Power and efficiency: 1,400 W at 40 °C, up to 98.5 % efficiency
  • Charge algorithm: adaptive, 4-stage, 8 pre-programmed battery settings
  • Connectivity: Bluetooth, VE.Direct, VE.Smart Networking, DVCC
  • Protection rating: IP65
Engineered from the ground up, the Orion XS redefines adaptive DC-DC charging. For use in dual battery systems charged with an (intelligent) alternator. This device not only ensures top-tier performance but also guarantees the safety of your system.
Stay in charge with configurable input and output currents, and rest assured that your Orion XS will run at full capacity up to 40°C. The innovative aluminium circuit board cooling technology delivers an astonishing 98% efficiency without the need for fans.
As an integral part of your Victron system, the Orion XS offers full (remote) monitoring and control capabilities, giving you complete command of your device and system.
  • Fully configurable
  • Engine shutdown detection
  • Intelligent charge algorithms
  • Works with VictronConnect
  • Remote monitoring optional

Technical specifications

Input voltage range9 … 35 V
Input current setting range1 … 50 A
Output voltage range10 … 35 V
Output current setting range1 … 50 A
Output voltage tolerance0.25 %
Output voltage noise10 mVrms
Continuous output current at 40 °C50 A
Output derating above 40 °C1.5 %
Maximum short-circuit current50 A
Power rating1400 W
Continuous output power at 40 °C1400 W
No-load current consumption100 mA
Standby current consumption1.5 mA
Maximum efficiency98.5
Use as power supplyYes
Can be connected in parallelYes
Galvanic isolationNo
ProgrammableYes
Remote on/off terminalYes
BluetoothYes
VictronConnect appYes
VE.Smart NetworkingYes
DVCC compatibilityYes
Data communicationVE.Direct, Bluetooth
ProtectionsLow battery voltage, Over temperature, Overload, Short-circuit proof
Operating temperature range-20 … 60 °C
Maximum humidity95 %
DC connection terminalsScrew terminals 21.2 mm² (4 AWG)
Remote on/off terminal connectionPluggable screw terminals (included)
ColourBlue (RAL 5012)
MaterialABS
Protection categoryIP65
Weight0.52 kg
Height138.1 mm
Width124.4 mm
Depth53 mm
SafetyIEC 62477-1
EmissionEN 300328, EN 3011489-1, FCC 15B, ICES-003, all pending
Automotive directiveECE R10-6

Data sheet

Reference
ORI242417040
EAN13
8719076064848
Brand
Victron Energy
Product type
DC-DC charger (alternator)
Maximum efficiency
98.5 %
DC input voltage range
9-35 V
Input voltage
12 V
24 V
Output voltage
12 V
24 V
DC output voltage range
10-35 V
Rated output current
50 A
Charge current class
41-70 A
Galvanic isolation
No (non-isolated)
Bluetooth (app)
Yes
Communication interfaces
Bluetooth
VE.Direct
Protections
Output short-circuit, overload, overtemperature, low battery voltage
Dimensions (H x W x D)
138.1 x 124.4 x 53 mm
Weight
0.52 kg
IP rating class
IP65
Ingress protection (IP)
IP65
Operating temperature
-20 ... 60 °C
Max. relative humidity
95 %
Colour
Blue
Material
ABS plastic
Standards and compliance
IEC 62477-1, ECE R10-6, EN 300328, EN 301 489-1

We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
