€38 Tax excluded

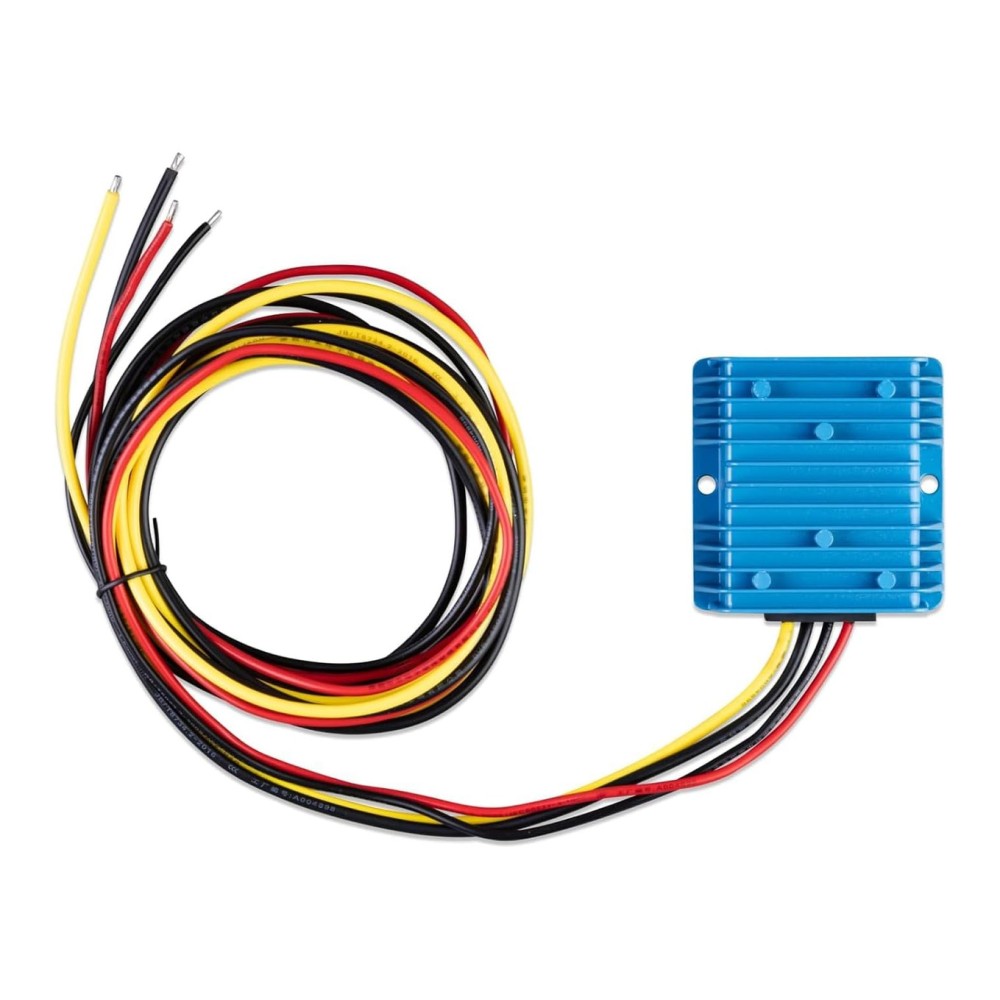

The Orion IP67 24/12-20 (240W) is an IP67 encapsulated DC-DC converter from 24 V to 12 V, with a power of 240 W, an input range of 15-40 V and a maximum efficiency of 95 %. The die-cast aluminium housing with resin-potted electronics makes it waterproof, shockproof and ignition protected. It operates between -40 and 70 °C.
Victron Energy commercial warranty: 5 years for defects in materials and workmanship, handled through us as the seller. In addition to the legal guarantee. Conditions
Orion IP67 24/12-20 (240W) is a fully encapsulated DC-DC converter with IP67 protection rating that converts 24 V to 12 V. The housing is die-cast aluminium and the electronics are potted in resin, so water, oil or dirt cannot damage the converter.
The converter is fully encapsulated: waterproof, shockproof and ignition protected. The housing is die-cast aluminium and the electronics are potted in resin. The Orion IP67 range includes the models 24/12-5, 24/12-10, 24/12-20, 24/12-100 and 12/24-50.
Protections include overload, short circuit, reverse polarity (fuse) and overtemperature. Connection is made with two input and output cables of 1.8 m, and the output is reduced by 3 % above 40 °C.
| Input voltage range | 15 … 40 V |
|---|---|
| Undervoltage shutdown | 13 V |
| Restart after undervoltage | 14 V |
| Output voltage | 12 V |
| Output voltage tolerance | 3 % |
| Ripple and noise | 0.075 Vmpp |
| Output derating above 40 °C | 3 % |
| No-load current draw | 50 mA |
| Maximum efficiency | 95 |
| Protections | Short-circuit protection, overload, reverse polarity (fuse), overtemperature |
| Operating temperature range | -40 … 70 °C |
| DC connection terminals | Two input and output cables of 1.8 m, 2.6 mm² (13 AWG) |
| Colour | Blue (RAL 5012) |
| Material | Aluminium |
| Protection rating | IP67 |
| Weight | 0.3 kg |
| Height | 74 mm |
| Width | 74 mm |
| Depth | 32 mm |
| Safety | EN 60950 |
| Emissions | EN 55014-1, EN-IEC 61000-6-3 |
| Immunity | EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2 |
| Vibration | IEC68-2-6:10-150Hz/1.0G |
We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
