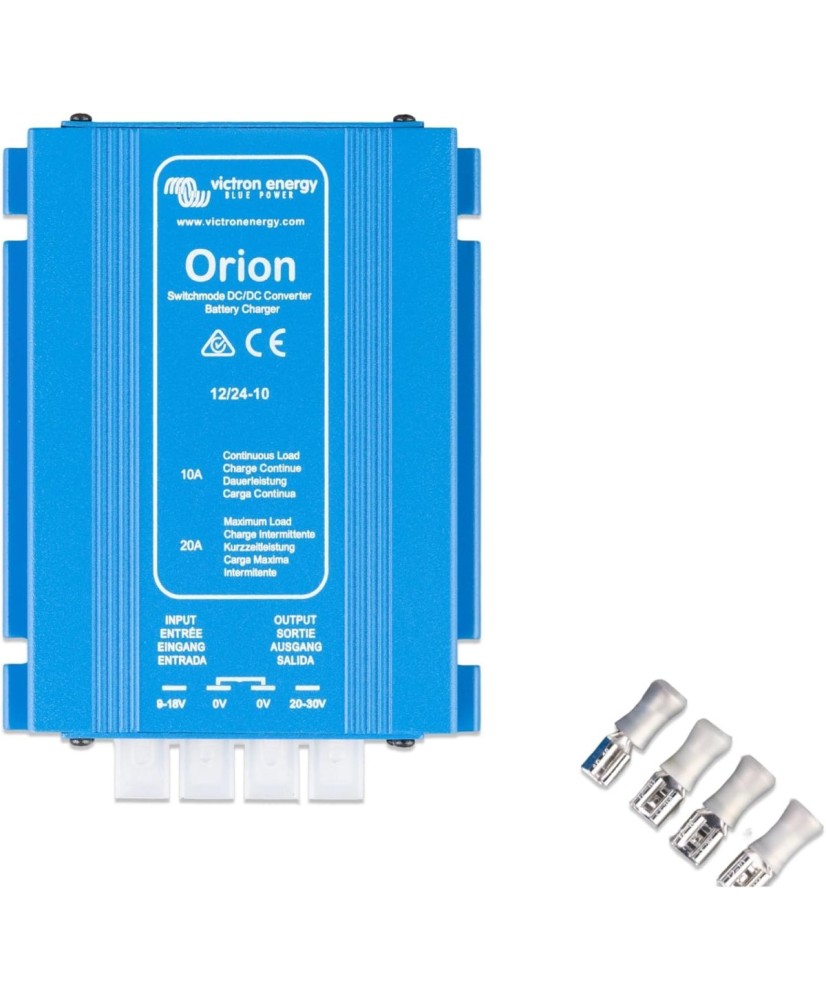

Orion 12/24-10 DC-DC converter IP20 Victron Energy

Name: Orion 12/24-10 DC-DC converter IP20 Victron Energy
Brand: VICTRON ENERGY
SKU: ORI122410020
Price: 66 EUR
Availability: PreOrder

€66.00

Tax excluded

Orion 12/24-10 IP20 is a non-isolated DC-DC converter that converts 12 V to 24 V, with output adjustable between 20 and 30 V and a current of 10 A. Thanks to the adjustable output it can also be used as a battery charger, and up to five units can be paralleled to increase the available current.

Brand : VICTRON ENERGY

Orion 12/24-10 IP20 - DC-DC converter 12 V to 24 V

Main features:

Input voltage: 9-18 V
Output voltage: 26.4 V, adjustable 20-30 V
Output current: 10 A
Maximum efficiency: 95 %
Parallel connection: up to 5 units
Remote on/off: via low-power switch or engine run/stop switch

Remote on/off connector
The remote on/off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by the engine run/stop switch (see manual).

All models with adjustable output can also be used as a battery charger
For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.

All models with adjustable output can be paralleled to increase output current
Up to five units can be connected in parallel.

Technical specifications

Input voltage range	9 … 18 V
Under-voltage shutdown	8 V
Under-voltage restart	10 V
Output voltage	26.4 V
Output voltage range	20 … 30 V
Continuous output current	10 A
Output derating above 40 °C	3 %
No-load current consumption	15 mA
Maximum efficiency	95
Buffer charge	Yes
Can be connected in parallel	Yes
Operating temperature range	-20 … 55 °C
DC connection terminals	Faston tab 6.3 x 0.8 mm
Colour	Blue (RAL 5012)
Material	Aluminium
Protection category	IP20
Weight	0.4 kg
Height	45 mm
Width	90 mm
Depth	125 mm
Safety	EN 60950
Emission	EN 55014-1, EN-IEC 61000-6-3
Immunity	EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Automotive directive	ECE R10-4
