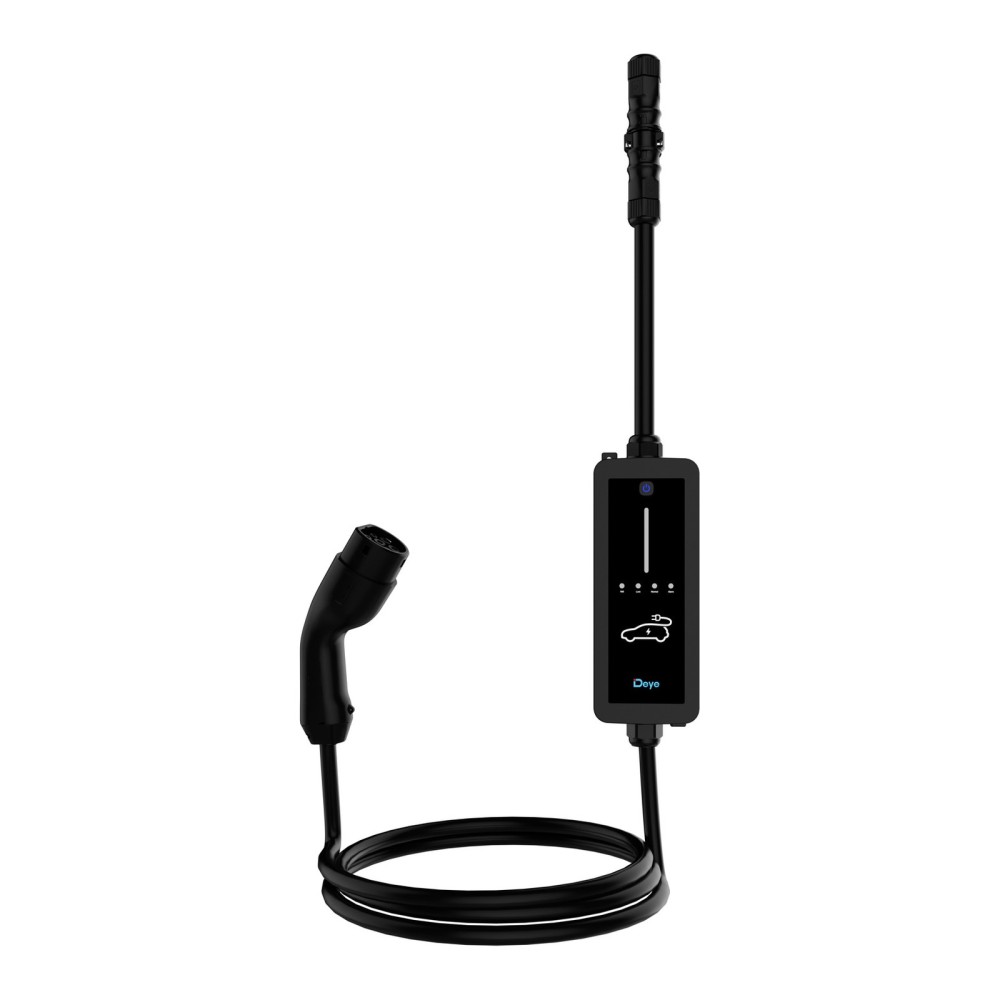

Deye EV charger, 22 kW, three-phase, IP66, SUN-EVSE22K01-EU-AC
  • Deye EV charger, 22 kW, three-phase, IP66, SUN-EVSE22K01-EU-AC
  • Deye EV charger, 22 kW, three-phase, IP66, SUN-EVSE22K01-EU-AC

Deye EV charger, 22 kW, three-phase, IP66, SUN-EVSE22K01-EU-AC

€576 Tax included

€480 Tax excluded

SUN-EVSE22K01-EU-AC is a Deye EV charger with a maximum output of 7 kW single-phase or 22 kW three-phase, a 32 A input current and a 4.2 m cable. It has IP66 protection, Type B leakage and 6 mA DC fault protection, automatic charging by time or solar-only, and LoRa, Wi-Fi and BLE communication.

Reference SUN-EVSE22K01-EU-AC

Your legal guarantee rights

Legal guarantee

EU harmonised notice on the legal guarantee of conformity

More information: europa.eu/youreurope/guarantees
Open the notice at full size

SUN-EVSE22K01-EU-AC - 22 kW EV charger

SUN-EVSE22K01-EU-AC is a Deye charger for electric vehicles, with an output power of 7 kW single-phase or 22 kW three-phase, a 4.2 m charging cable and IP66 protection for outdoor use. It allows automatic charging by time or in solar-only mode.

Main features:

  • Maximum output power: 7 kW single-phase, 22 kW three-phase
  • Input current: 32 A
  • Protection degree: IP66, for outdoor use
  • Charging cable: 4.2 m, one charging gun
  • Leakage protection: Type B and 6 mA DC fault
  • Communication: LoRa, Wi-Fi, BLE
  • Charging modes: Automatic by time, solar-only

The charger supports 7, 11 and 22 kW charging across the product range and works in both single-phase and three-phase systems. It starts in Plug and Play mode or by scheduled charging, and power can be monitored and controlled in real time via Deye Cloud.

Protections include over-temperature, low temperature, over-voltage, under-voltage, short circuit, overload, earth fault, 6 mA DC leakage current and Type II surge protection. It operates from -40 to 55 °C, with noise below 25 dB and an MTBF of 100,000 h.

Technical specifications

Input voltage / range230 V (single phase), 230/400 V (three phase)
Connection modeL+N+PE, 3L+N+PE
Input current32 A
Input frequency / range50 Hz (45-55 Hz) / 60 Hz (55-65 Hz)
Maximum output power7 kW (single phase) / 22 kW (three phase)
Starting methodPlug and Play / scheduled charging
Over temperature protectionYes
Low temperature protectionYes
Over voltage protectionYes
Under voltage protectionYes
Short circuit protectionYes
Over load protectionYes
Earth fault protectionYes
Leakage current protectionDC 6 mA
Surge protection levelType II
Operating temperature range-40 ... 55 °C
Permissible ambient humidity5-95%, no condensation
Permissible altitudeMax. 3000 m
Noise<25 dB
Ingress protection (IP) ratingIP66
Dimensions (height x width x depth)264 x 104 x 57.5 mm
Weight3.7 kg
Gun cable length4.2 m
Number of charging guns1
MTBF100000 h
Safety and EMC standardsEN IEC 61851-1:2019, IEC 61851-1:2017, EN 300 220-2 V3.1.1:2017, EN 300 328 V2.2.2:2019, EN IEC 62311:2020, EN 301 489-1 V2.2.3:2019, EN 301 489-3 V2.3.2:2023, EN 301 489-17 V3.3.1:2024, EN IEC 61000-6-1:2019, EN IEC 61000-6-3:2021, EN IEC 61851-21-2:2021
Communication modeLoRa, Wi-Fi, BLE

Data sheet

Reference
SUN-EVSE22K01-EU-AC
MPN
SUN-EVSE22K01-EU-AC
Product type
EV charging station
Phases
Three-phase
Connectors
One charging gun, 4.2 m cable
Communication interfaces
Bluetooth
LoRa
Wi-Fi
Dimensions (H x W x D)
264 x 104 x 57,5 mm
Weight
3,7 kg
Ingress protection (IP)
IP66
Operating temperature
-40 ... 55 °C
Standards and compliance
EN IEC 61851-1:2019, IEC 61851-1:2017, EN IEC 61851-21-2:2021, EN IEC 61000-6-1:2019, EN IEC 61000-6-3:2021

We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
