CHINT three-phase energy meter, direct 80 A, Modbus RS485, DTSU666

CHINT three-phase energy meter, direct 80 A, Modbus RS485, DTSU666

€131 Tax included

€109 Tax excluded

DTSU666 is a CHINT three-phase (3P4W) energy meter, with direct measurement up to 80 A. It measures active and reactive energy in both directions, has accuracy class b (1.0), a current range of 0.25-5(80) A and communicates over RS485 Modbus-RTU. It mounts on a DIN rail and is used for feed-in limitation and consumption monitoring.

Reference DTSU666

Your legal guarantee rights

Legal guarantee

EU harmonised notice on the legal guarantee of conformity

More information: europa.eu/youreurope/guarantees
Open the notice at full size

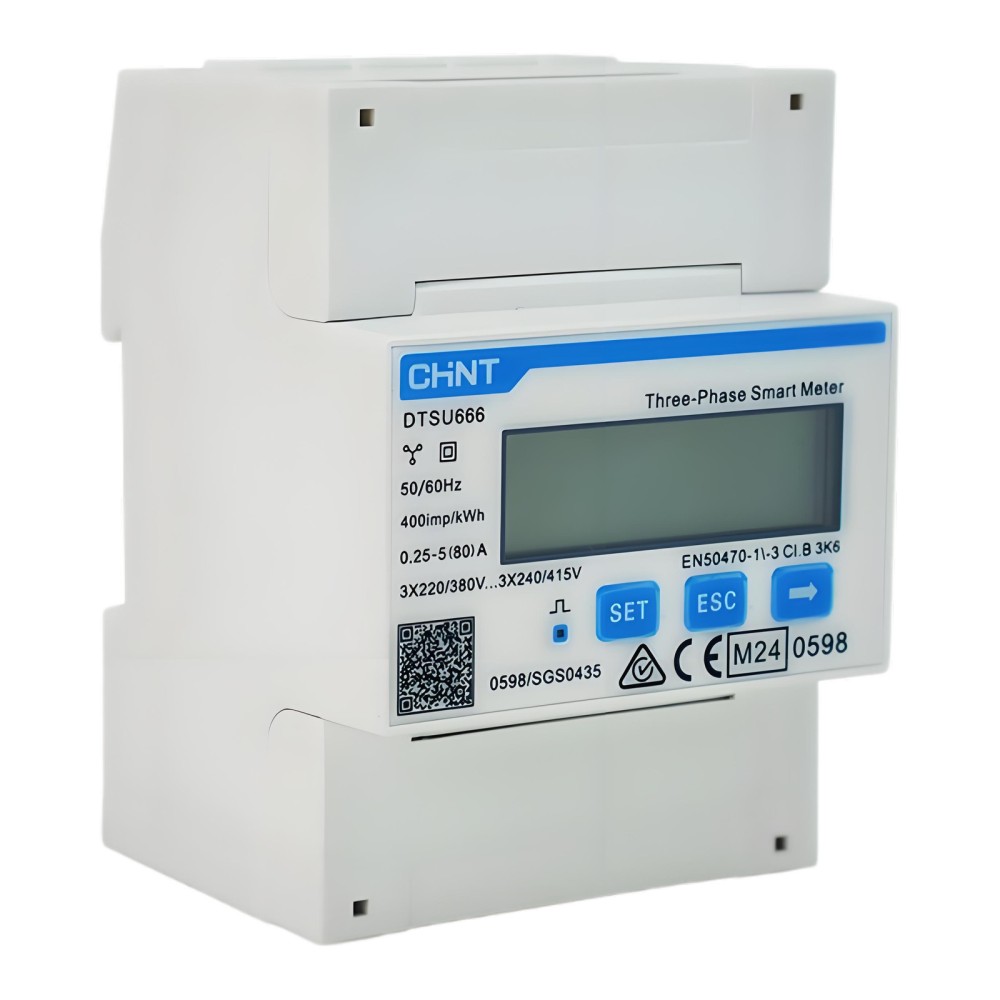

DTSU666 - Three-phase energy meter with direct 80 A measurement

DTSU666 is a CHINT three-phase (3P4W) smart energy meter for DIN-rail mounting, with direct measurement up to 80 A. It measures imported and exported active and reactive energy, communicates over RS485 Modbus-RTU and has an LCD display.

Main features:

  • Type: Three-phase energy meter
  • Measurement: direct, up to 80 A
  • Current: 0.25-5(80) A
  • Accuracy class: B (1.0)
  • Communication: RS485, Modbus-RTU
  • Mounting: DIN rail
  • Certification: MID B+D

SOFAR manuals (HYD 5...20KTL-3PH, CH1000, 25-50KTLX-G3) name the CHINT DTSU666 meter for feed-in limitation and for measuring additional PV inverters.

The meter is wired directly into the measured circuit, without external current transformers; the maximum current is 80 A.

The meter measures energy and power (kW, kvar, kVA), current, voltage, frequency and power factor. The RS485 baud rate can be set from 1200 to 19200 bps (default 9600 bps); it operates from -25 to 55 °C, with IP20 protection.

Technical specifications

ManufacturerCHINT
ModelDTSU666
TypeSmart energy meter, three-phase
Connection type3P4W
Measurementdirect
Current range0.25-5(80) A
Accuracy classClass B (1.0)
Constant800 imp/kWh
Nominal voltage3 x 220/380 V ... 3 x 240/415 V
Operating range (voltage)0.8 Un ... 1.15 Un
Power consumption2 W, 10 VA
Frequency50 Hz or 60 Hz
CommunicationRS485, Modbus-RTU
Baud rate1200, 2400, 4800, 9600 (default), 19200 bps
Measured valuesimport/export active and reactive energy (kWh, kvarh), instantaneous power (kW, kvar, kVA), current, voltage, frequency, power factor
DisplayLCD with backlight
Pulse outputLED pulse indication
ComplianceEN 50470-1/-3, MID B+D certified
Operating temperature-25 ... 55 °C
Storage temperature-40 ... 70 °C
Maximum relative humidity95 %, non-condensing
Ingress protectionIP20
MountingDIN rail
Dimensions (height x width x depth)100 x 72 x 65 mm
Weight0.33 kg (approx.)

Data sheet

Reference
DTSU666
MPN
DTSU666
Product type
Sensors and meters
Phases
Three-phase
Rated current (exact)
0.25-5(80) A
Rated voltage
3 x 220/380 V ... 3 x 240/415 V
Communication interfaces
Modbus
RS485
Dimensions (H x W x D)
100 x 72 x 65 mm
Weight
0.33 kg
Ingress protection (IP)
IP20
Operating temperature
-25 ... 55 °C
Max. relative humidity
95 %
Standards and compliance
EN 50470-1/-3, MID B+D
