€3,564 Tax excluded

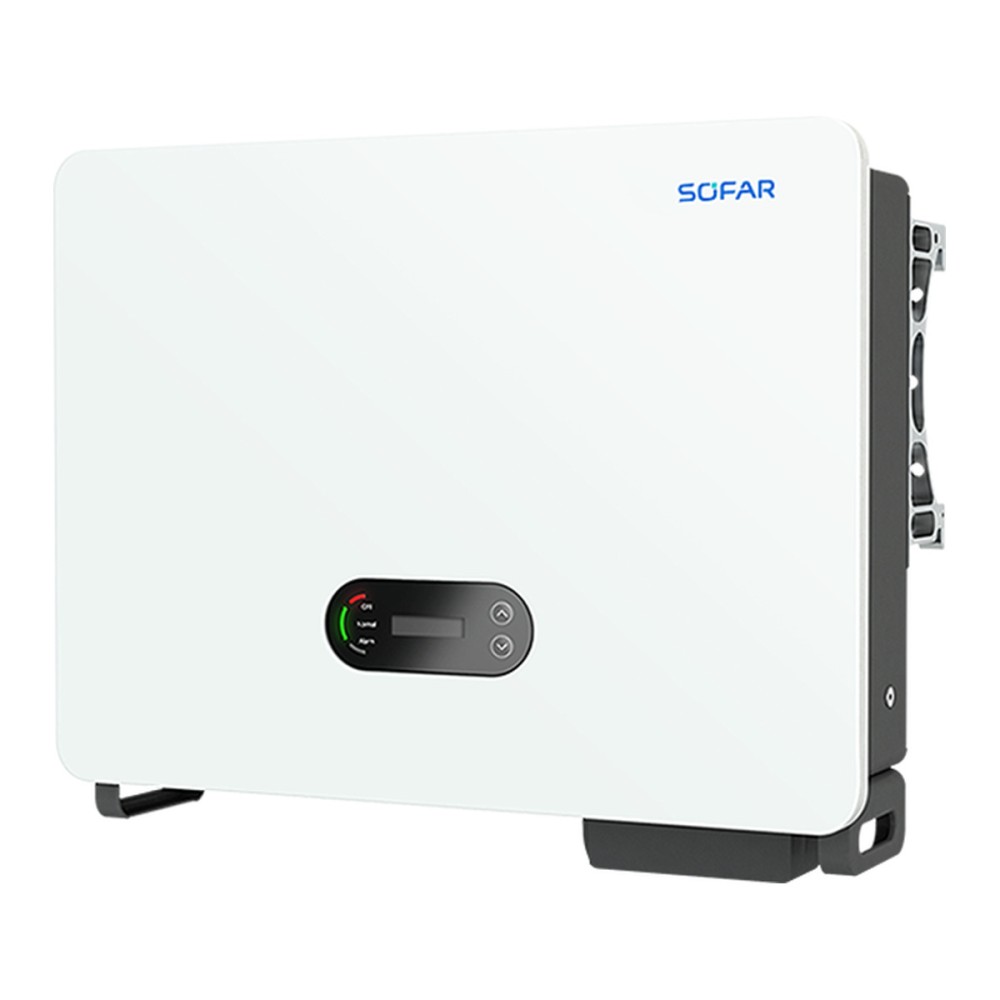

80KTLX-G3 is a SOFAR three-phase on-grid inverter rated 80 kW (maximum apparent power 88 kVA), with 6 MPPTs, a 180-1000 V MPPT range and a maximum efficiency of 98.7%. It has IP66 protection, RS485 and Wi-Fi communication, an LCD with Bluetooth and app access, and weighs 50 kg.
80KTLX-G3 is a three-phase on-grid string inverter from SOFAR with a rated power of 80 kW, 6 MPPTs and IP66 protection, for medium-sized commercial and industrial PV systems.
Each of the 6 MPPTs takes a maximum input current of 40 A and a short-circuit current of 60 A, with 1.5 times DC overload. On the AC side the inverter tolerates a prolonged 110% overload. It works with PV modules of 500 W and above, starts at a low voltage (200 V) and offers I-V curve scanning.
Protections include DC reverse polarity, anti-islanding, leakage current, ground fault, PV string fault monitoring, a DC switch and type II surge protection on DC and AC. The 80KTLX-G3 is wall mounted, and at 50 kg unpacking and moving it takes at least two people. It operates from -30 to 60 °C, up to 4000 m altitude (derating above 3000 m), with air cooling.
| Maximum input voltage | 1100 V |
|---|---|
| Rated input voltage | 620 V |
| Start-up voltage | 200 V |
| MPPT operating voltage range | 180-1000 V |
| Number of MPP trackers | 6 |
| Number of DC inputs | 2 for each MPPT |
| Maximum input current per MPPT | 6 x 40 A |
| Maximum short-circuit current per MPPT | 6 x 60 A |
| Rated output power | 80000 W |
| Maximum apparent power | 88 kVA |
| Maximum output current | 133.3 A |
| Rated output voltage | 3/N/PE, 230/400 V |
| Output voltage range | 310-480 V |
| Rated output frequency | 50/60 Hz |
| Output frequency range | 45-55 Hz / 55-65 Hz |
| Active power adjustable range | 0-100 % |
| THDi | under 3% |
| Power factor | 1 (adjustable +/-0.8) |
| Maximum efficiency | 98.7 % |
| European efficiency | 98.2 % |
| DC reverse polarity protection | Yes |
| Anti-islanding protection | Yes |
| Leakage current protection | Yes |
| Ground fault monitoring | Yes |
| PV-array string fault monitoring | Yes |
| DC switch | Yes |
| Surge protection (SPD) | PV: type II, AC: type II |
| Ambient temperature range | -30 ... 60 °C |
| Self-consumption at night | under 2 W |
| Topology | Transformerless |
| Degree of protection | IP66 |
| Allowable relative humidity range | 0-100 % |
| Maximum operating altitude | 4000 m (derating above 3000 m) |
| Cooling | Smart air cooling |
| Dimensions (W x H x D) | 687 x 561 x 275 mm |
| Weight | 50 kg |
| Display | LCD & Bluetooth + APP |
| Communication | RS485, Wi-Fi |
| Standards | IEC/EN 61000-6-2/4, IEC 61000-3-4/5, IEC 62116, IEC 61727, IEC 61683, IEC 60068-1/2/14/30, IEC/EN 62109-1/2, G99, VDE-AR-N 4105, VDE V 0126-1-1, EN 50549-1, UNE 217002-2020 |
We took these technical data from the manufacturer’s datasheet; transcription errors are possible. For 100% accuracy, please consult the attached datasheet.
Compatibility is calculated automatically from the manufacturers’ technical data and is for information only. For complex systems, we recommend having the configuration checked by a consultant before ordering. Details in the Terms and conditions
