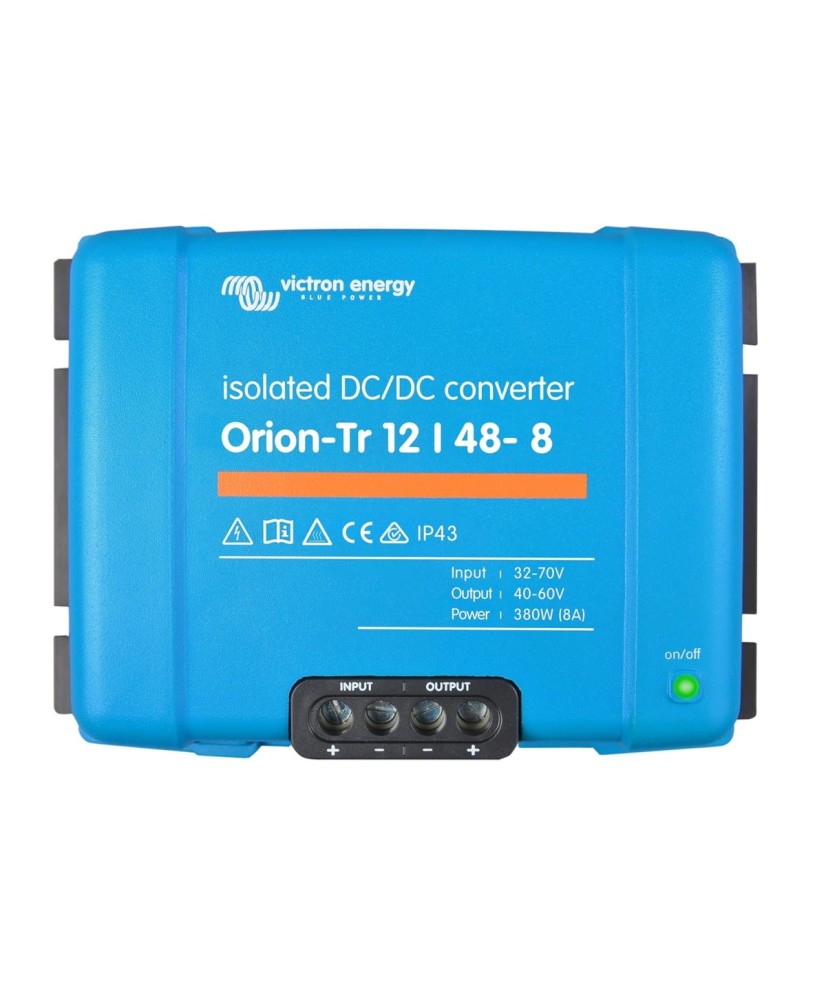

Orion-Tr 12/48-8A (380W) Isolated DC-DC converter Victron Energy

Orion-Tr 12/48-8A (380W) - Isolated DC-DC converter 12 V to 48 V

Orion-Tr 12/48-8A (380W) is a galvanically isolated DC-DC converter that powers 48 V loads from a 12 V system. It is short-circuit proof, an unlimited number of units can be paralleled to increase output current, and the remote on/off input can be operated with a low-power switch or the engine run/stop switch.

Main features:

• Input voltage: 8-17 V
• Output voltage: 48.2 V, adjustable 40-60 V
• Output current: 8 A (380 W) at 40 °C
• Maximum efficiency: 89 %
• Galvanic isolation: 200 V DC between input, output and case
• Parallel connection: unlimited number of units

Remote on/off
The remote on/off eliminates the need for a high current switch in the input wiring. The remote on/off can be operated with a low power switch or by for example the engine run/stop switch (see manual).

All models are short circuit proof and can be paralleled to increase output current. An unlimited number of units can be connected in parallel.

IP43 protection

When installed with the screw terminals oriented downwards.

Screw terminals
No special tools needed for installation.

Input fuse
On 12V and 24V input models only.
