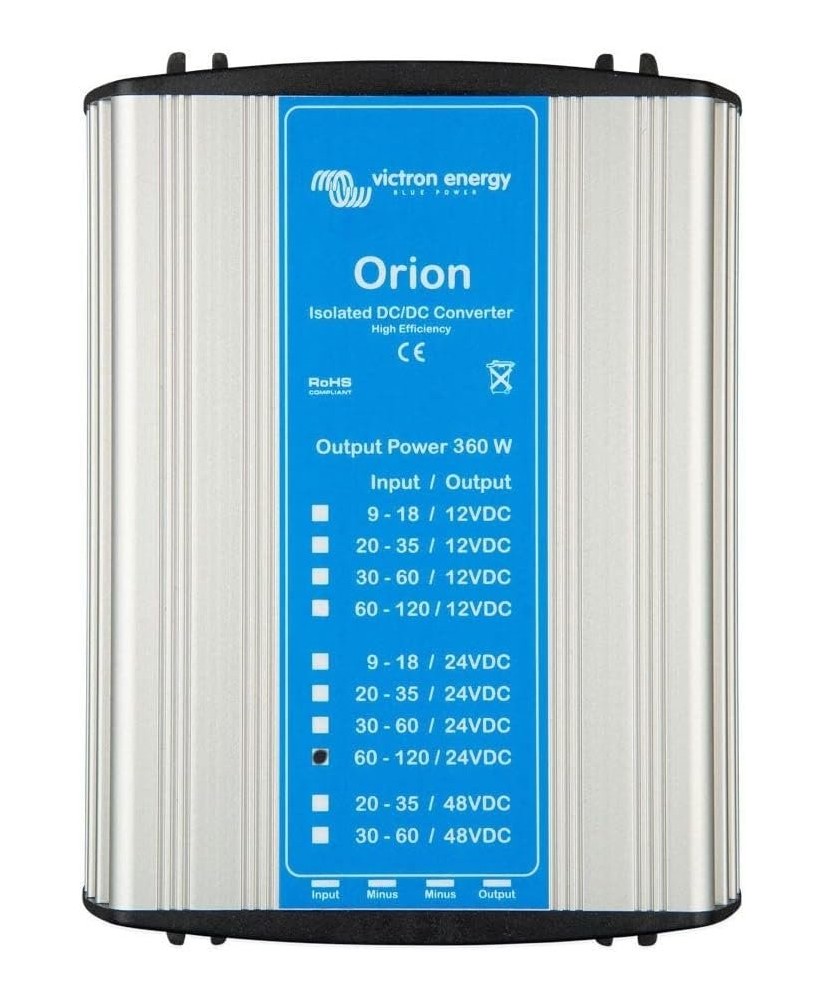

Orion 110/24-15A (360W) Isolated DC-DC converter Victron Energy

Name: Orion 110/24-15A (360W) Isolated DC-DC converter Victron Energy
Brand: VICTRON ENERGY
SKU: ORI110243610
Price: 390 EUR
Availability: PreOrder

€390.00

Tax excluded

Orion 110/24-15A (360W) is a galvanically isolated DC-DC converter that turns a 110 V DC input, within a 60-140 V range, into a stable 24 V output at 360 W. It has built-in protection against short circuit, overheating, reverse polarity and overvoltage, with 400 V rms isolation between input and output.

Brand : VICTRON ENERGY

Orion 110/24-15A (360W) - Isolated DC-DC converter 110 V to 24 V

Main features:

Input voltage: 60-140 V DC
Output voltage: 24 V, 2 % stability
Output current: 15 A (360 W)
Maximum efficiency: 85 %
Galvanic isolation: 400 V rms
Cooling: temperature-controlled fan

The isolated 110V Orion DC-DC Converters are designed to convert a 110V DC input (range: 60 to 140V) to a stable 12.5V or 24V DC output at 360W.

It has built-in protections against short circuits, overheating, reverse polarity and overvoltage.

Technical specifications

Input voltage range	60 … 140 V
Output voltage	24 V
Output voltage stability	2 %
Output voltage tolerance	3 %
Output voltage noise	50 mVrms
Continuous output current	15 A
Power rating	360 W
Off-load current	25 mA
Maximum efficiency	85
Fan-assisted cooling	Yes
Galvanic isolation	Yes
Protections	Over temperature, Overcurrent, Overvoltage, Battery reverse polarity (fuse)
Isolation	400 Vrms
Operating temperature range	-20 … 40 °C
Maximum humidity	95 %
DC connection terminals	Faston tab 6.3 mm
Colour	Grey
Material	Anodized aluminium
Weight	1.4 kg
Height	82 mm
Width	132 mm
Depth	190 mm
Safety	EN 60950
Emission	EN 55014-1, EN-IEC 61000-6-3
Immunity	EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2
