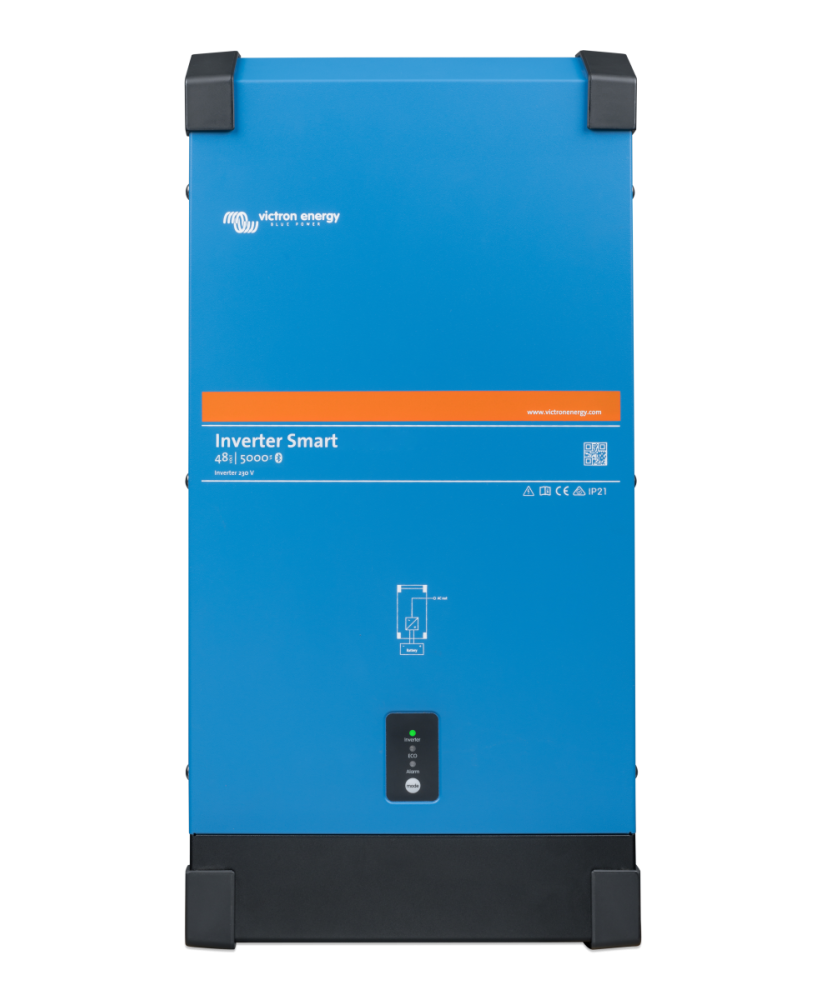

Phoenix 48/5000 230V Smart - 48V sine wave inverter with Bluetooth
Phoenix 48/5000 230V Smart is a Smart inverter for 48V batteries, with a full metal casing and a toroidal transformer that provides stable voltage and frequency and a high-quality sine wave. With 4000 W continuous and 10,000 W peak power, it supplies common appliances in cars, boats, caravans or homes and is configured via Bluetooth in VictronConnect.
Main features:
- Battery voltage: 48 V (37.2-68 V)
- Continuous power: 4000 W / 5000 VA at 25 °C
- Peak power: 10,000 W
- Maximum efficiency: 96%
- Connectivity: Bluetooth, VE.Direct, programmable relay
- ECO mode: zero-load power reduced from 20 W to 3.2 W
The Inverter Smart is an efficient and reliable inverter. Built on our proven and field tested inverter platform, it now comes with a new slimmer design and full metal casing. Models are available in 1600VA, 2000VA, 3000VA and 5000VA for 12, 24 or 48V systems.
It’s powerful enough to supply most common plug in appliances in your car, boat, caravan or home. A toroidal transformer provides a high peak power surge capacity, stable voltage, frequency and high quality sine-wave.
Installation is simpler than ever before with terminals now more accessible for the installer, enabling a more professional finish.
Bluetooth is built-in, and makes setting up your high power inverter easier than ever before.
Configure alarms, alarm relay, voltage cut-off, output voltage, frequency, eco-mode and more, all from within VictronConnect.
Technical specifications
| Nominal battery voltage | 48 V |
|---|
| DC input voltage range | 37.2 … 68 V |
|---|
| AC output voltage | 230 V |
|---|
| Frequency | 50Hz or 60Hz |
|---|
| Continuous output power at 25 °C (VA) | 5000 VA |
|---|
| Continuous output power at 25 °C (W) | 4000 W |
|---|
| Continuous output power at 40 °C | 3700 W |
|---|
| Continuous output power at 65 °C | 2800 W |
|---|
| Peak power | 10000 W |
|---|
| Dynamic low DC shutdown | Yes |
|---|
| Maximum efficiency | 96 % |
|---|
| Zero load power | 20 W |
|---|
| Zero load power in ECO mode | 3.2 W |
|---|
| ECO mode stop/start power setting | Adjustable |
|---|
| Parallel and 3-phase operation | No |
|---|
| Remote on/off terminal | Yes |
|---|
| Programmable relay | AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC |
|---|
| Bluetooth | Yes |
|---|
| Communication port | Bluetooth, VE.Direct |
|---|
| Fully programmable | Yes |
|---|
| Protections | Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple |
|---|
| Operating temperature range | -40 … 65 °C |
|---|
| Maximum humidity | 95 % |
|---|
| AC connection | Screw terminals |
|---|
| Battery connection | M8 bolts |
|---|
| Remote control terminal | Screw terminal two pole |
|---|
| Relay terminal | Screw terminal 3-pole |
|---|
| Colour | Blue (RAL 5012) and Black (RAL 9017) |
|---|
| Material | Steel |
|---|
| Protection category | IP21 |
|---|
| Weight | 28 kg |
|---|
| Height | 555 mm |
|---|
| Width | 295 mm |
|---|
| Depth | 160 mm |
|---|
| Safety | EN-IEC 60335-1 |
|---|
| Emission and immunity | EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3 |
|---|
| Automotive directive | ECE R10-5 |
|---|
